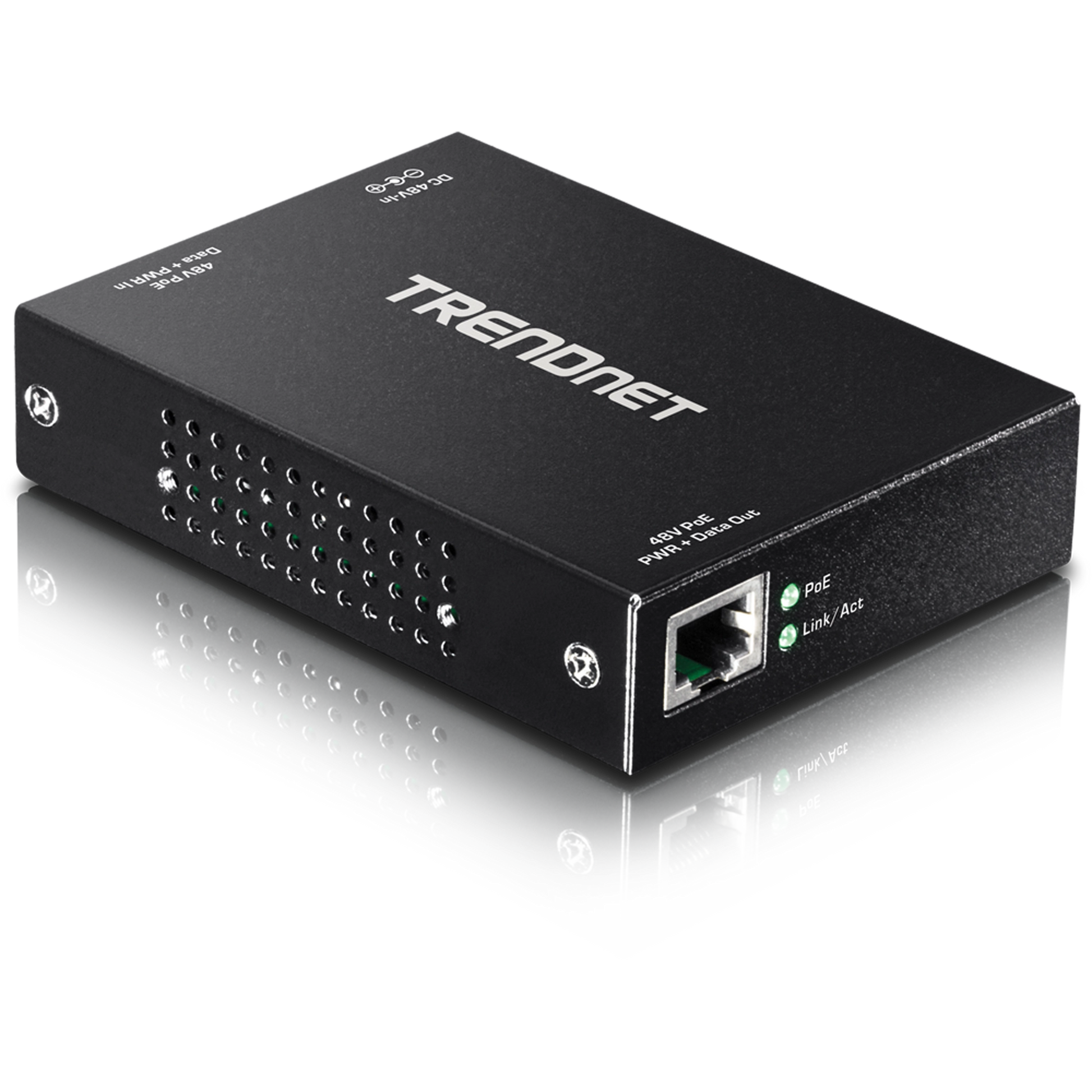

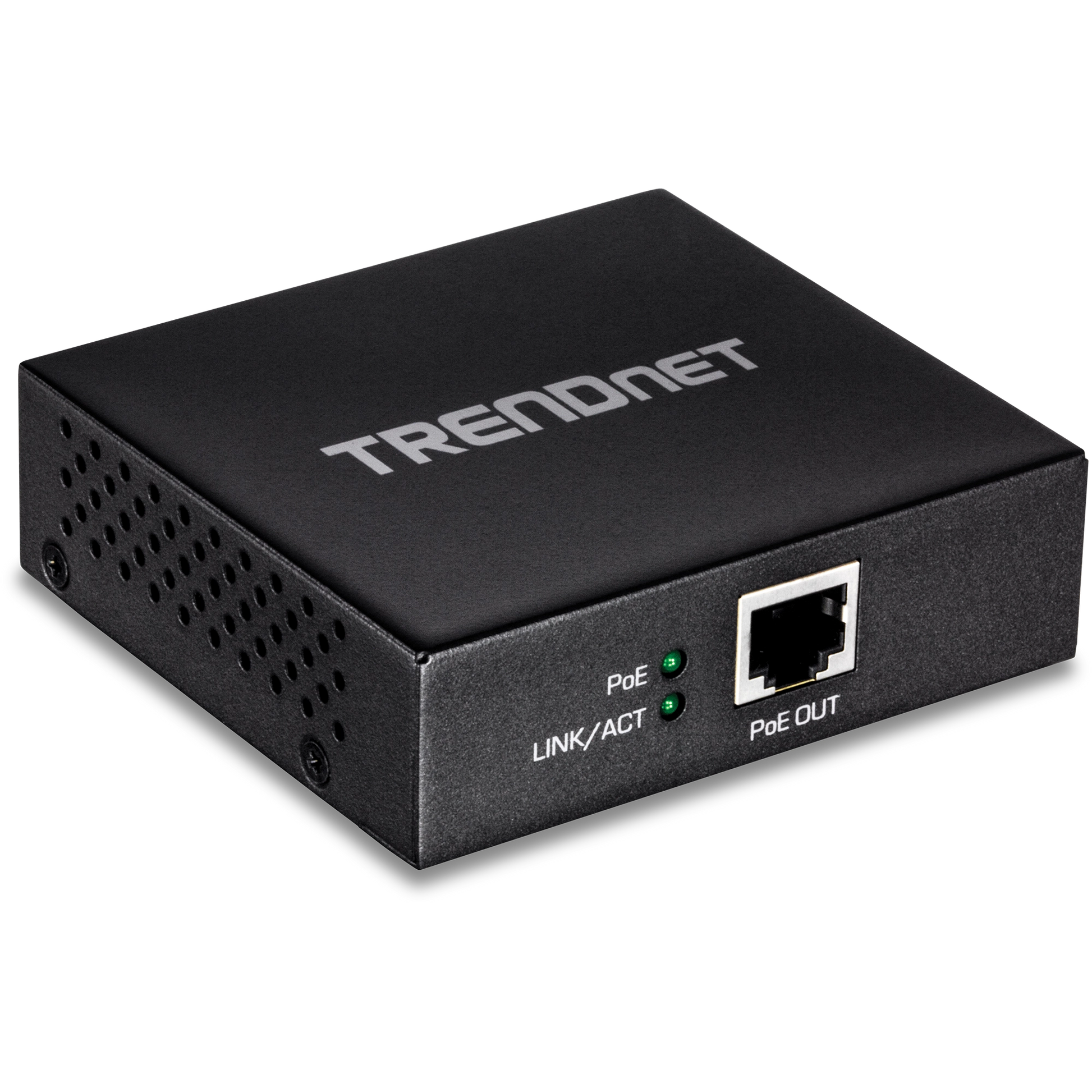

TRENDnet TPE-E100 Gigabit PoE+ Repeater

VENDOR: TRENDNET Mfg Part#: TPE-E100 UPC#: 710931160185
1 5
Photo is for illustration purposes only. Actual product may be different.
$64.00
$64.00
Sale Sold out
MSRP: $68.00
Shipping calculated at checkout.
  • Device Type: Repeater
  • Data Transfer Rate: 1 Gbps
  • Data Link Protocol: Gigabit Ethernet
  • Dimensions: 3" W x 3.9" D x 0.9" H
  • Service & Support: 3-year limited warranty
  • TAA compliant (Made in Taiwan)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Extend the range of PoE+ devices without needing extra electrical outlets, saving installation costs.
  • 1 Gbps data transfer and Gigabit Ethernet protocol ensure high-speed and reliable connectivity.
  • TAA compliance and 3-year warranty support deployments in government and enterprise environments.

Product Overview

The TRENDnet TPE-E100 is a Gigabit PoE+ Repeater engineered to extend both power and network data over a single Ethernet cable beyond the standard 100-meter limit. Compact in size, measuring just 3 inches by 3.9 inches by 0.9 inches, it easily integrates into constrained environments without sacrificing performance. Offering a high-speed data transfer rate of 1 Gbps and utilizing the Gigabit Ethernet protocol, it is an essential tool for network installations requiring expanded PoE coverage, such as IP surveillance cameras, VOIP phones, or wireless access points.

This device is TAA-compliant, making it suitable for government or regulated industry applications. Designed and manufactured in Taiwan, the TPE-E100 supports long-term reliability and comes backed by a 3-year limited warranty. Its robust performance and ability to minimize the need for additional electrical infrastructure provide strong ROI for businesses looking to scale their IP technology deployments without incurring major installation costs.

For IT administrators, value-driven installers, and network integrators, the TPE-E100 offers dependable support and enhanced deployment flexibility within power and data-sensitive environments.

Specifications

Product Overview
Device Type Gigabit PoE+ Repeater
Form Factor Desktop/Wall-Mountable
Power Requirements Powered via PoE (802.3at)
Power Consumption 2.8 Watts (maximum)
Weight 80 g (2.8 oz)

Physical & Environmental
Width 3 in (76 mm)
Depth 3.9 in (99 mm)
Height 0.9 in (23 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity Max 90% (non-condensing)
Housing Material Metal
Mounting Options Wall-mountable

Cloud Management & Licensing
Cloud Management
Licenses Required No

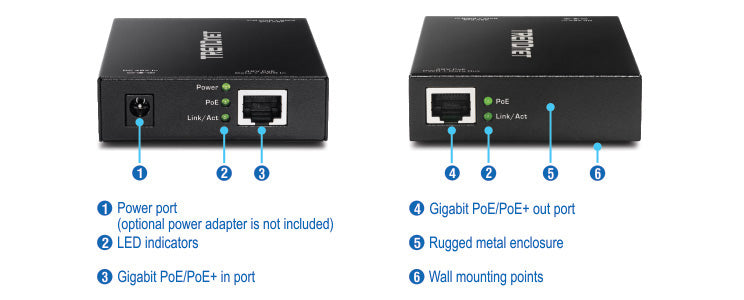

Interfaces
LAN Ports 2 x 10/100/1000 Mbps Gigabit Ethernet RJ-45
PoE Input Port 1 x PoE+ (802.3at/af) Input
PoE Output Port 1 x PoE+ (802.3at) Output
Interface Type RJ-45
PoE Pass-through Yes
Maximum Transmission Distance Up to 100 meters per segment
Max Cascaded Units Up to 4 units (total 500 m)
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC
RoHS Compliant Yes
Warranty 3-Year Limited Warranty

Advanced Security Features
Surge Protection 1 KV LAN protection
Electrostatic Discharge (ESD) Protection 4 KV contact / 8 KV air
