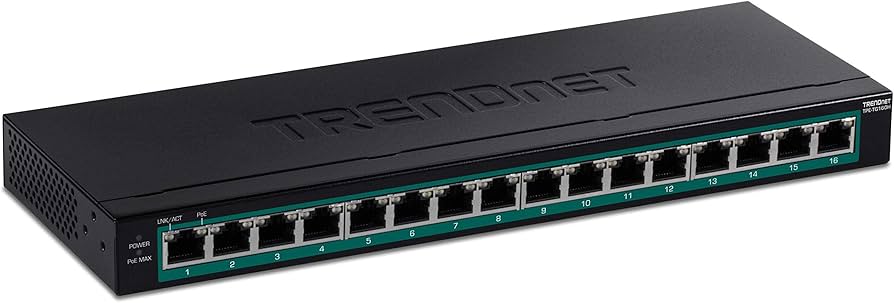

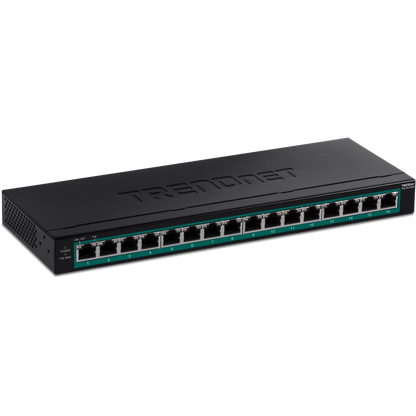

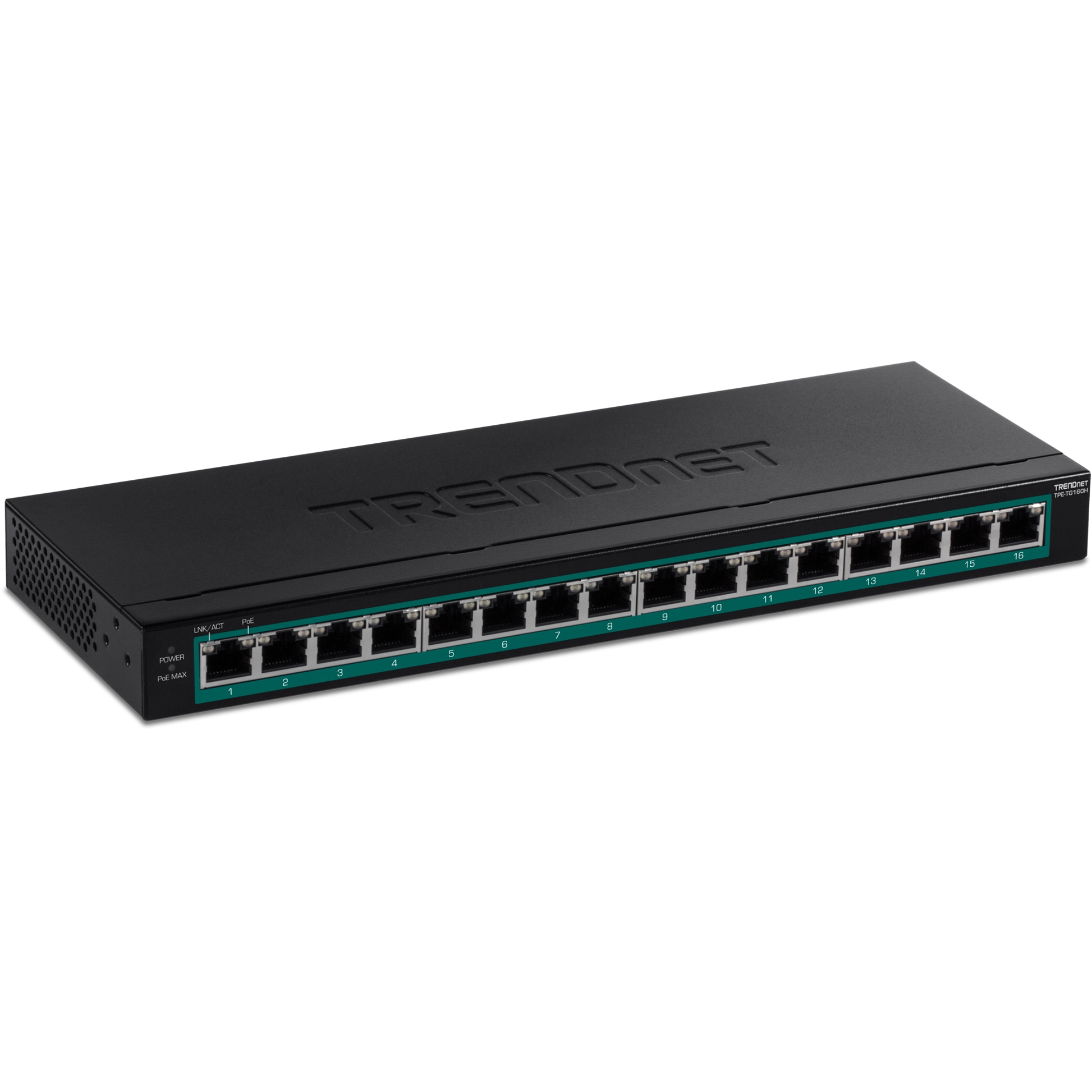

TRENDnet TPE-TG160H 16-Port Gigabit PoE+ Switch (123W)

VENDOR: TRENDNET Mfg Part#: TPE-TG160H UPC#: 710931161960
1 5
Photo is for illustration purposes only. Actual product may be different.
$271.00
$271.00
Sale Sold out
MSRP: $277.00
Shipping calculated at checkout.
  • 16-port switch with 10/100 Mbps PoE+ interfaces
  • Total PoE power budget of 123W suitable for PoE+ devices

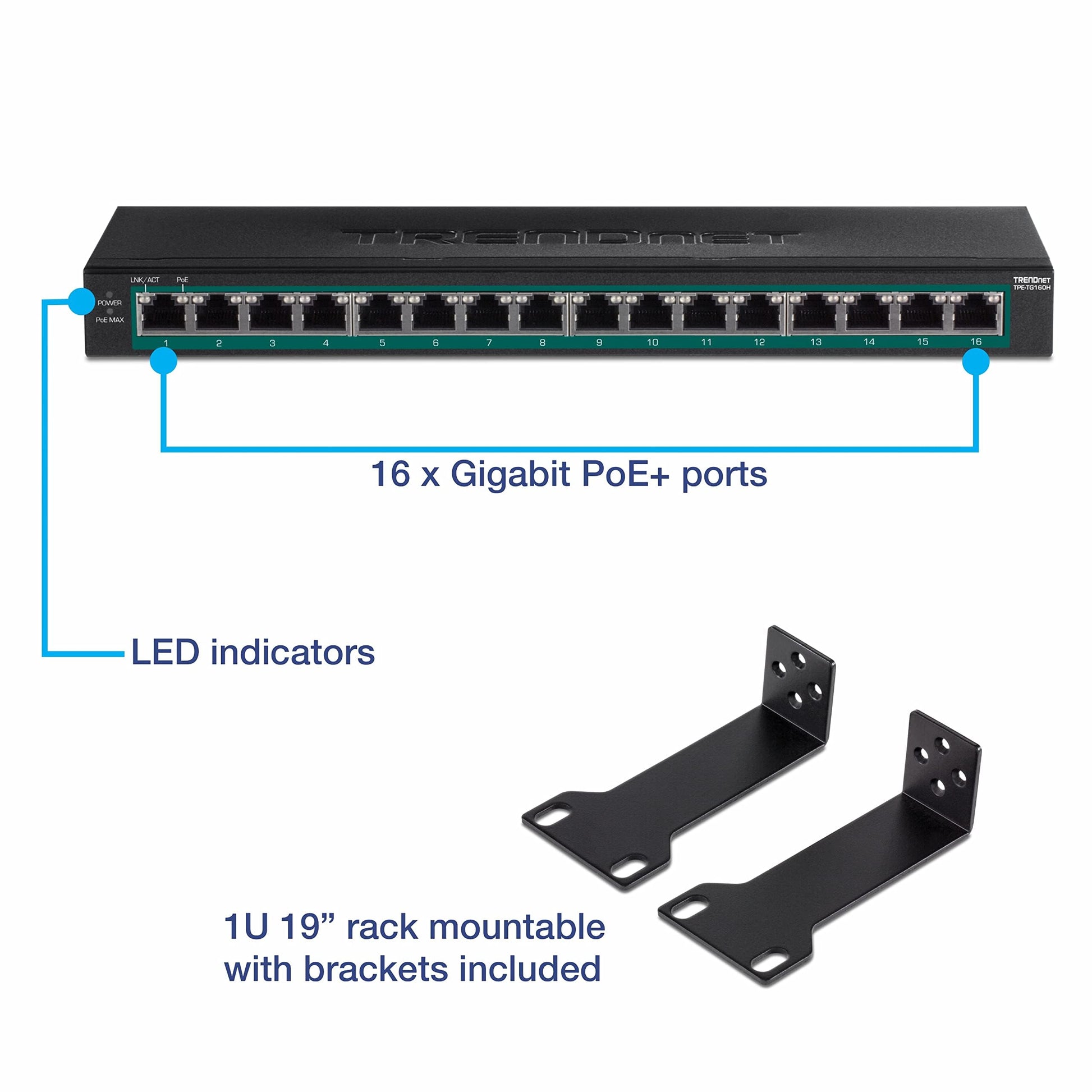

  • Rackmount form factor with dimensions of 440 x 220 x 44 mm
  • Wide input voltage range (90–260 V AC) for flexible installation
  • TAA compliant and manufactured in Taiwan
  • Backed by a lifetime manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports 16 PoE+ ports with 123W power budget, providing flexibility for powering IP devices without additional adapters.
  • TAA compliance and Taiwan origin make it suitable for federal and enterprise-level IT deployments.
  • Backed by a lifetime warranty, ensuring long-term reliability and reducing total cost of ownership.

Product Overview

The TRENDnet TPE-TG160H is a robust 16-Port Gigabit PoE+ Switch designed for high-efficiency PoE power delivery in professional environments. Featuring sixteen 10/100 Mbps PoE+ ports, it supports diverse applications including IP surveillance, VoIP, and wireless networking, with a total PoE power budget of 123W and 260W max power consumption. Built for durability, it uses a wide-range AC input (90–260 V) and features a rackmount form factor sized at 440 x 220 x 44 mm. It's TAA compliant and manufactured in Taiwan, making it ideal for government and enterprise use. Backed by a lifetime warranty, this switch ensures long-term scalability and network performance.

Specifications

Product Overview
Product Type Gigabit Ethernet PoE+ Switch
Form Factor Rack-mountable
Number of Ports 16
PoE Budget 123W
Max Power Consumption 260W
Power Requirements 100–240V AC, 50/60Hz
Switching Capacity 32 Gbps
Forwarding Rate 23.81 Mpps
Packet Buffer 512 KB
MAC Address Table Size 8K entries
Jumbo Frame Support 10 KB
Fanless Design Yes

Wireless Features
Wireless Capability

Compliance & Origin
TAA Compliant Yes
Certifications CE, FCC
Country of Origin Taiwan
RoHS Compliant Yes
Warranty Lifetime Warranty

Advanced Security Features
Security Features Store-and-forward switching architecture
MAC Address Filtering No
DoS Protection No
VLAN Support No hardware VLAN support

Interfaces
Ethernet Interface 16 x 10/100/1000 Mbps Gigabit Ethernet ports
IEEE PoE Standard IEEE 802.3af/at (PoE+)
Auto-MDI/MDIX Yes
Data Transfer Rate 10/100/1000 Mbps per port
Total PoE Ports 16
Throughput 23.8 Mpps

Physical & Environmental
Width 440 mm
Depth 220 mm
Height 44 mm
Weight 3.4 kg (7.5 lbs)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity Max 90% non-condensing
Storage Humidity Max 95% non-condensing
Cooling Method Passive, fanless cooling
Mounting Type Rackmount with included brackets
Housing Material Metal

Cloud Management & Licensing
Management Type Unmanaged
Cloud Management Support No
Included Licenses Not required
