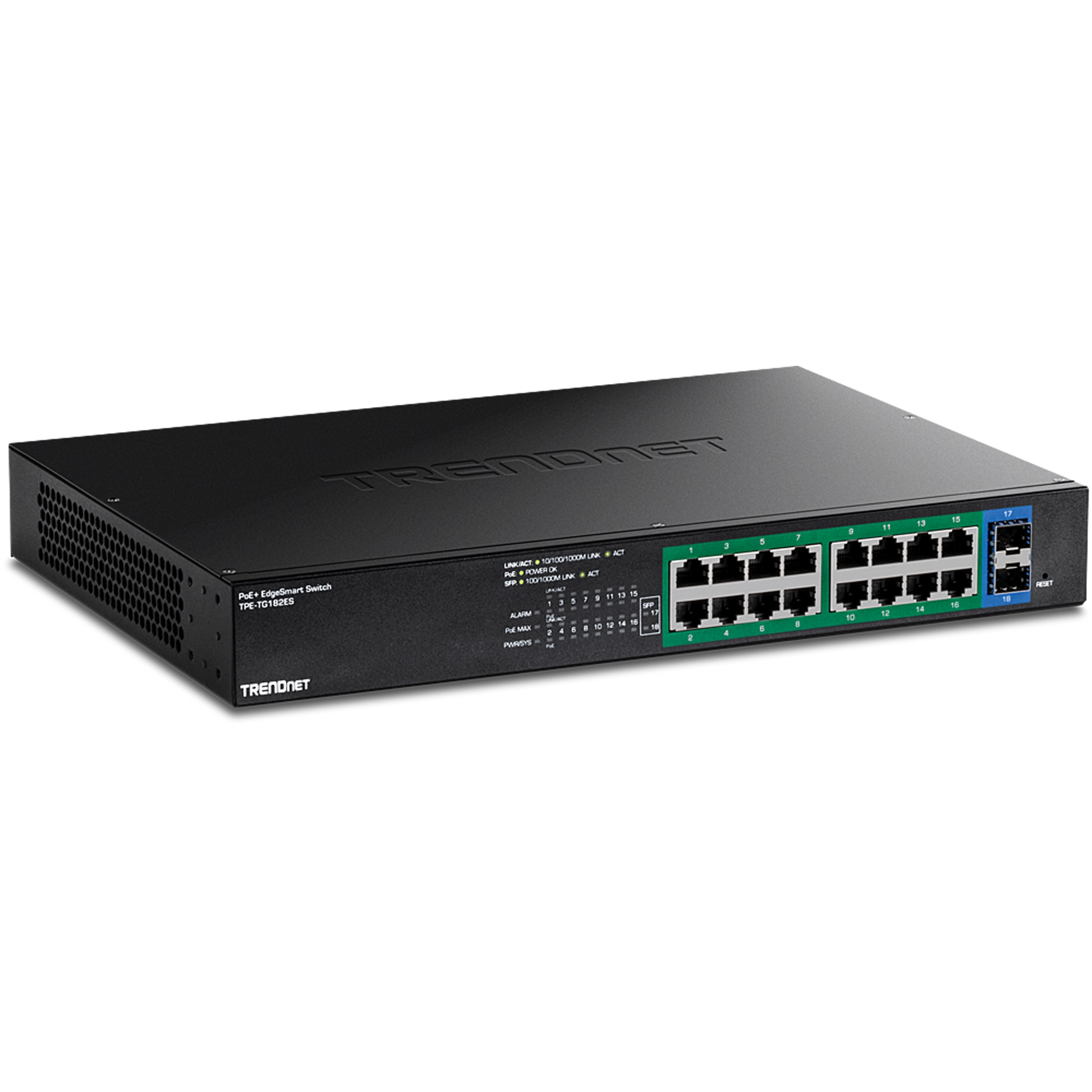

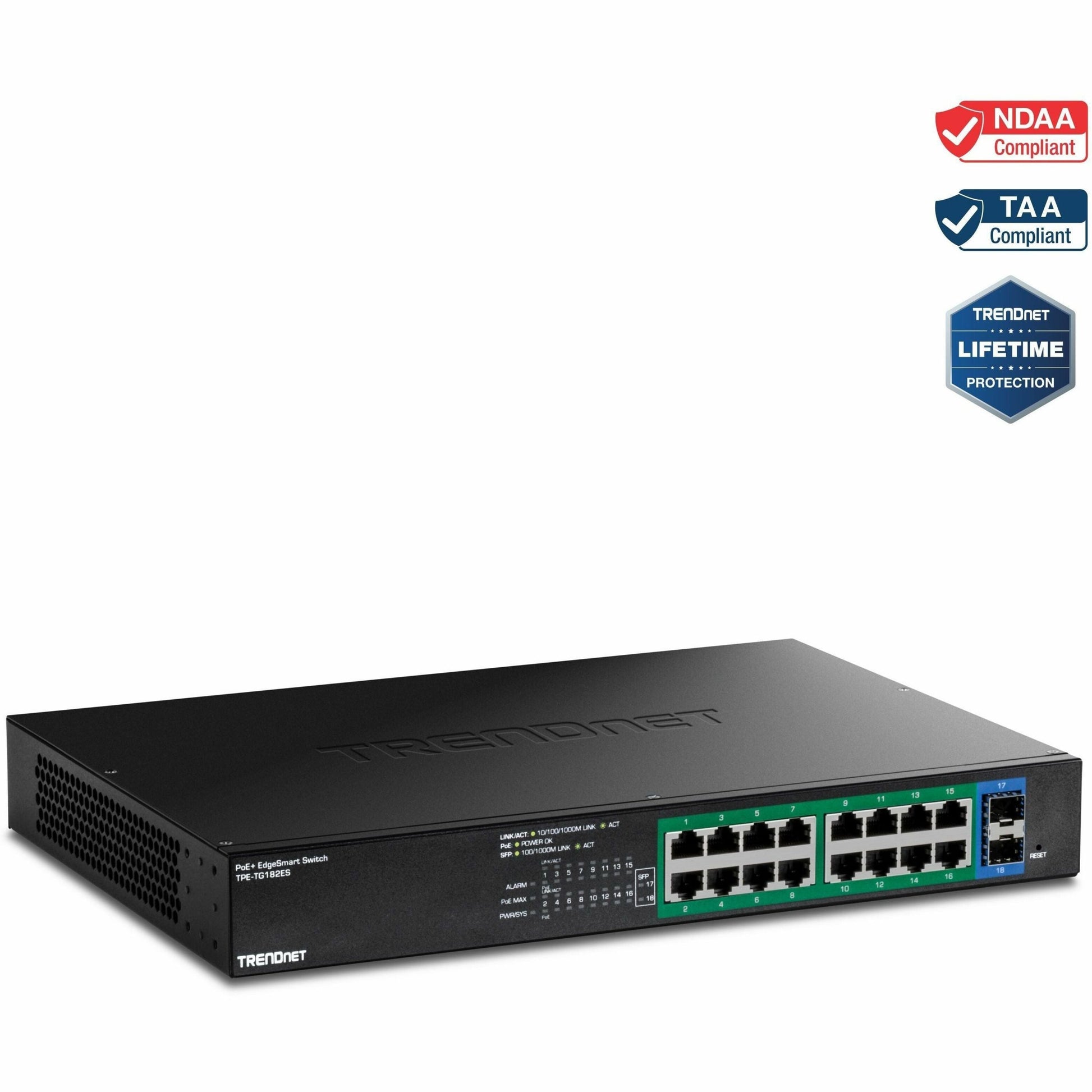

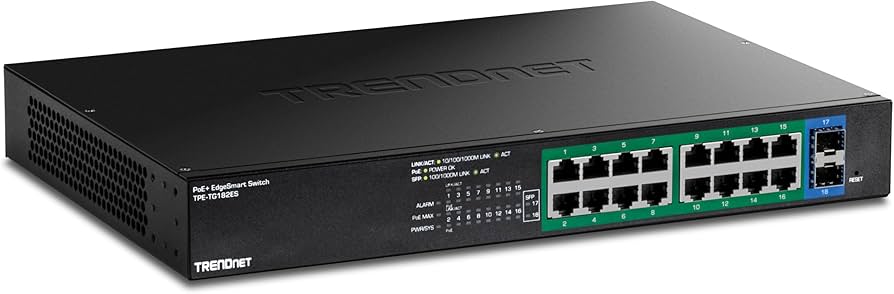

TRENDNET TPE-TG182ES 18-Port Gigabit EdgeSmart PoE+ Switch

VENDOR: TRENDNET Mfg Part#: TPE-TG182ES UPC#: 710931162561
1 5
Photo is for illustration purposes only. Actual product may be different.
$442.00
$442.00
Sale Sold out
MSRP: $450.00
Shipping calculated at checkout.
  • 18 total ports including 16 x Gigabit PoE+ ports and 2 x SFP uplink slots
  • Supports data transfer rates up to 2 Gbps with jumbo frame support (9KB)
  • Provides 240W total PoE power budget for PoE-enabled devices
  • Layer 2 EdgeSmart features including bandwidth control and IEEE 802.1d compliance
  • Rackmountable 1U form factor with dimensions of 12.9" x 8.98" x 1.73"
  • MTBF of 609,351 hours and lifetime warranty for long-term reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides 16 PoE+ ports delivering both power and data over a single cable for simplified network installations
  • Includes 2 SFP uplink slots and advanced traffic management features for flexible enterprise deployments
  • Backed by a lifetime warranty and TAA compliance, ensuring a reliable and procurement-friendly investment

Product Overview

The TRENDNET TPE-TG182ES is a compact, high-performance 18-port Gigabit EdgeSmart PoE+ Switch engineered for enterprise-class networking. Featuring 16 PoE+ ports with 240W power budget, plus 2 SFP slots, it supports flexible uplink options and 2 Gbps connectivity. It delivers advanced features like bandwidth control per port, jumbo frame support up to 9KB, and complies with IEEE 802.1d for efficient traffic management.

Housed in a durable 1U form factor, the TPE-TG182ES operates from 0–40°C and includes an 8K MAC address table. With MTBF of 609,351 hours and a maximum power consumption of 248.18W under full load, it offers reliability and energy-conscious performance. Built in Taiwan and TAA-compliant, it is geared for professional networks requiring dependable power and connectivity.

Specifications

Product Overview
Product Type Managed Gigabit PoE+ Switch
Model Number TPE-TG182ES
Form Factor 1U Rackmount
Weight 5.69 lbs.
Power Requirements 100 - 240V AC, 50/60Hz, 2.6A
Max Power Consumption 248.18 Watts (with full PD load)
Switching Capacity 36 Gbps
Forwarding Rate 26.78 Mpps
MAC Address Table Size 8K entries
MTBF 609,351 hours
PoE Power Budget 240 Watts
Included Accessories Rackmount kit, power cord, installation guide
Warranty Lifetime Warranty

Physical & Environmental
Width 12.9 inches
Depth 8.98 inches
Height 1.73 inches
Operating Temperature Range 0°C to 40°C
Storage Temperature -20°C to 70°C
Operating Humidity 10% to 90% RH (non-condensing)
Storage Humidity 5% to 90% RH (non-condensing)
Cooling Fanless (passive cooling)

Cloud Management & Licensing

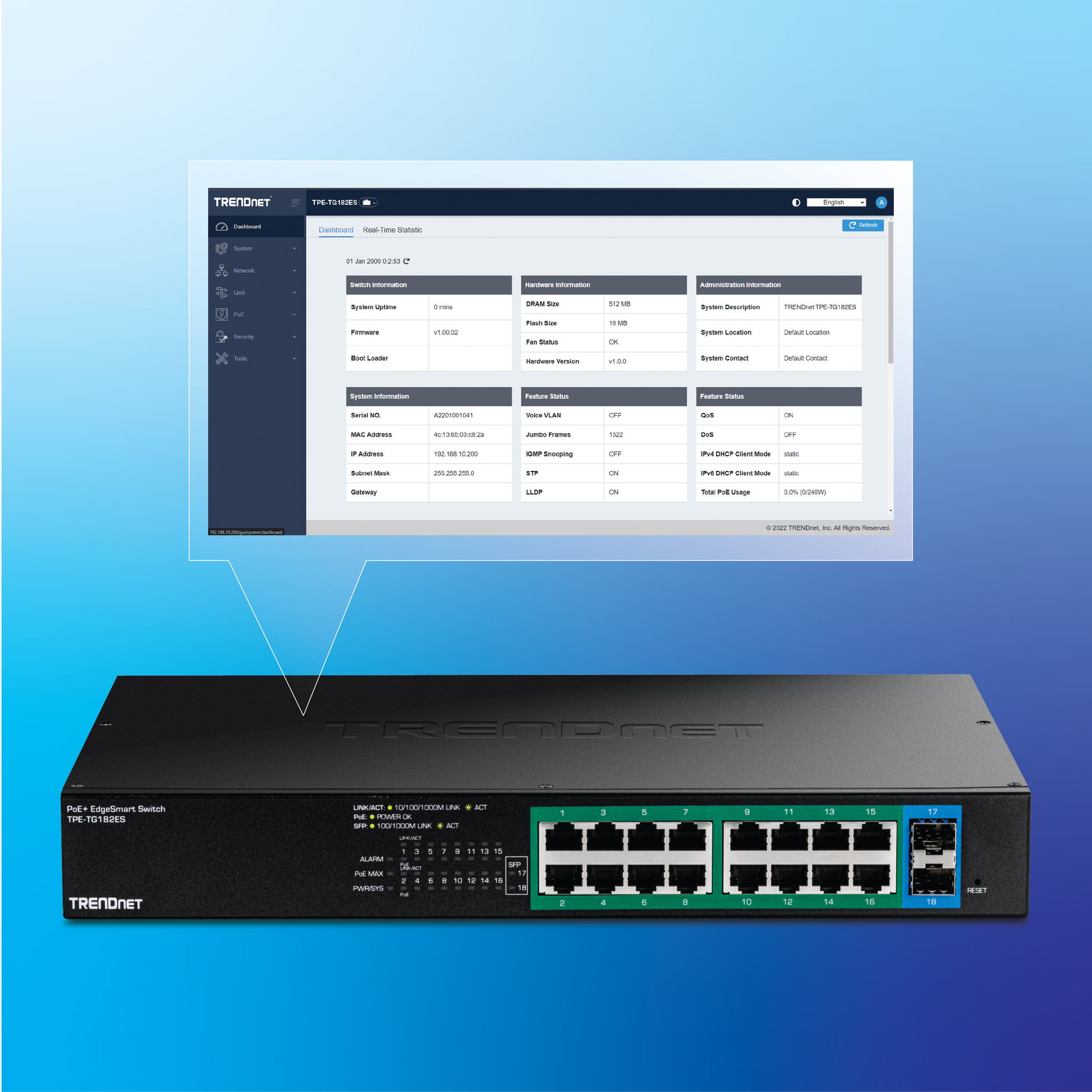

Management Type EdgeSmart Web-Based Management Interface
VLAN Support 802.1Q VLAN tagging (up to 128 groups)
QoS Support 802.1p, port-based, DSCP
Link Aggregation Yes (Static LAG)
IGMP Snooping IGMP v1/v2/v3 Snooping

Interfaces
Total Ethernet Ports 18
Gigabit PoE+ Ports 16 x 10/100/1000 Mbps
SFP Slots 2 x Gigabit SFP
Data Link Protocol Gigabit Ethernet
Jumbo Frame Support Up to 9KB
Bandwidth Control Supported (per port)
Switching Method Store-and-forward

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, RoHS
Standards Compliance IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Advanced Security Features
Access Control Port Security, Storm Control
DoS Prevention Yes
Traffic Monitoring Port Mirroring
Loop Prevention Yes
