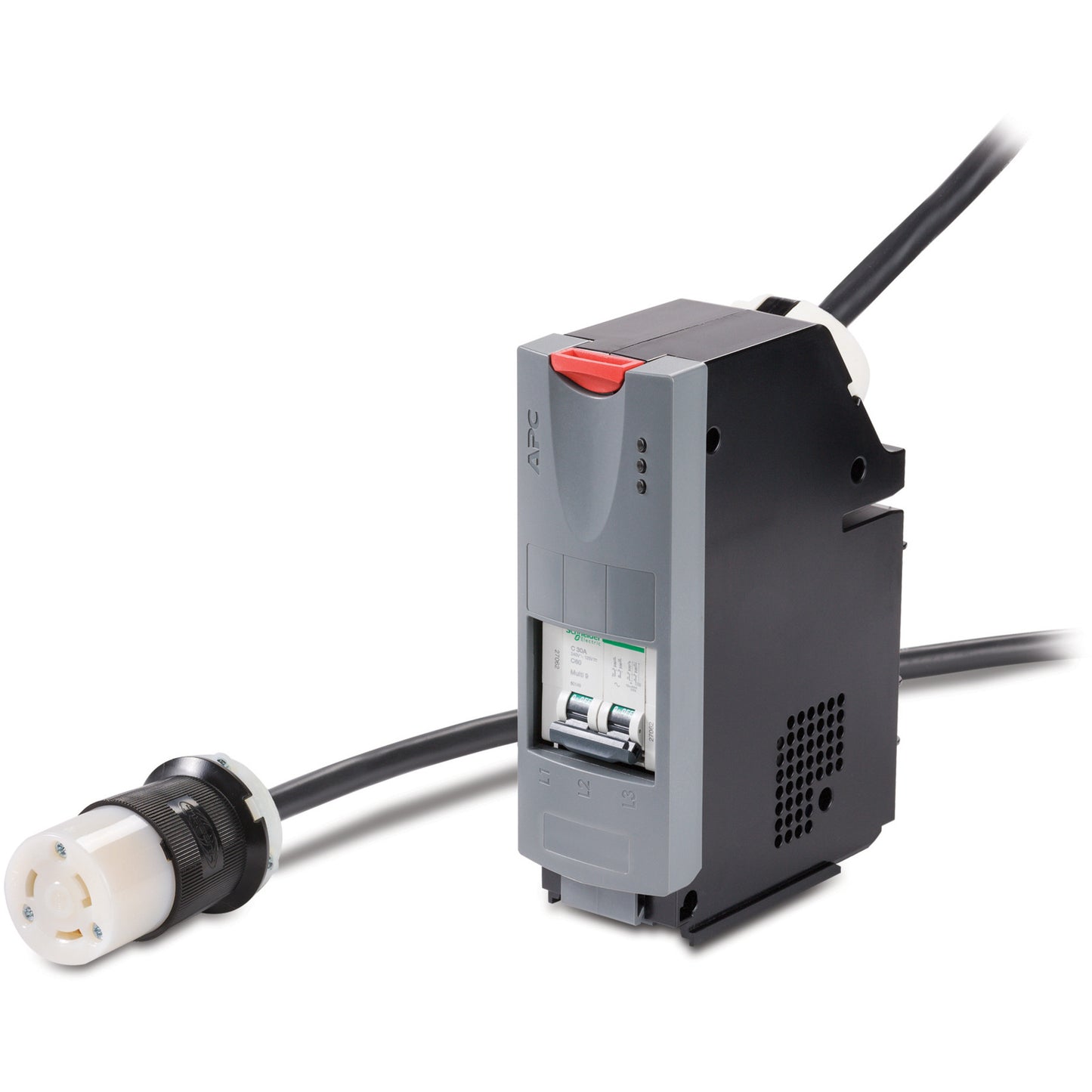

APC IT Power Distribution Module 2 Pole 30A L6-30 208V

VENDOR: APC Mfg Part#: PDM2330L6-12-740 UPC#: 731304286028
1 1
Photo is for illustration purposes only. Actual product may be different.
$721.08
$721.08
Sale Sold out
MSRP: $1,085.00
Shipping calculated at checkout.
  • 208V voltage output and 208V voltage requirement for consistent power delivery
  • 30A 2-pole, 3-wire configuration with NEMA L6-30R output connector
  • Compact form factor: 17.48" W x 15.98" D x 5" H for easy integration into racks
  • TAA compliant and RoHS certified, suitable for government use and eco standards
  • One-year repair or replace service and support benefit
  • Made in the USA for reliable quality assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for 30A 208V IT applications, enabling reliable and high-capacity power distribution
  • TAA and RoHS compliance make it fully qualified for federal, state, and environmentally regulated deployments
  • Manufactured in the USA, ensuring quality control and reducing lead times for mission-critical deployments

Product Overview

The APC IT Power Distribution Module PDM2330L6-12-740 is engineered for enterprise-grade power management, offering efficient delivery of 208V power with a 30A 2-pole, 3-wire configuration. With a NEMA L6-30R output, it's ideal for powering server racks and networking hardware. This module is TAA-compliant, making it suitable for government and regulated industry use.

Measuring 17.48" x 15.98" x 5" and housed in a black enclosure, it is RoHS-compliant and backed by a 1-year repair or replace warranty. Made in the USA, the unit is built to support scalable, reliable power infrastructures in modern IT environments.

Specifications

Product Overview
Manufacturer APC
Product Name APC IT Power Distribution Module 2 Pole 30A L6-30 208V
Model PDM2330L6-12-740
Product Type Power Distribution Module
Form Factor Rack-mountable
Color Black
Weight Approximately 20 lb
Power Requirements 208V AC
Number of Poles 2
Current Rating 30A
Warranty 1 year repair or replace

Physical & Environmental
Height 5 inches
Width 17.48 inches
Depth 15.98 inches
Operating Temperature 0 to 40 °C
Storage Temperature -5 to 45 °C
Operating Relative Humidity 0 - 95% (non-condensing)
Storage Relative Humidity 0 - 95% (non-condensing)
Enclosure Type Metal
Mounting Type Horizontal Mount

Cloud Management & Licensing
Management Interface No remote management
Licensing Requirements No licensing required

Interfaces
Input Plug Type Hardwired
Output Connector(s) 1 × NEMA L6-30R
Output Voltage 208 V
Output Frequency 50/60 Hz
Input Frequency 50/60 Hz
Phase Single-phase
Number of Output Connections 1
Electrical Connection Type 3-wire

Compliance & Origin
RoHS Compliance Yes
TAA Compliance Yes
Certifications UL Listed
Country of Origin United States

Advanced Security Features
Surge Protection Integrated
Overload Protection Yes
Grounding Type Standard Equipment Grounding
