APC IT Power Distribution Module 2 Pole 30A L6-30 208V

VENDOR: APC Mfg Part#: PDM2330L6-23-620 UPC#: 731304286103
1 1

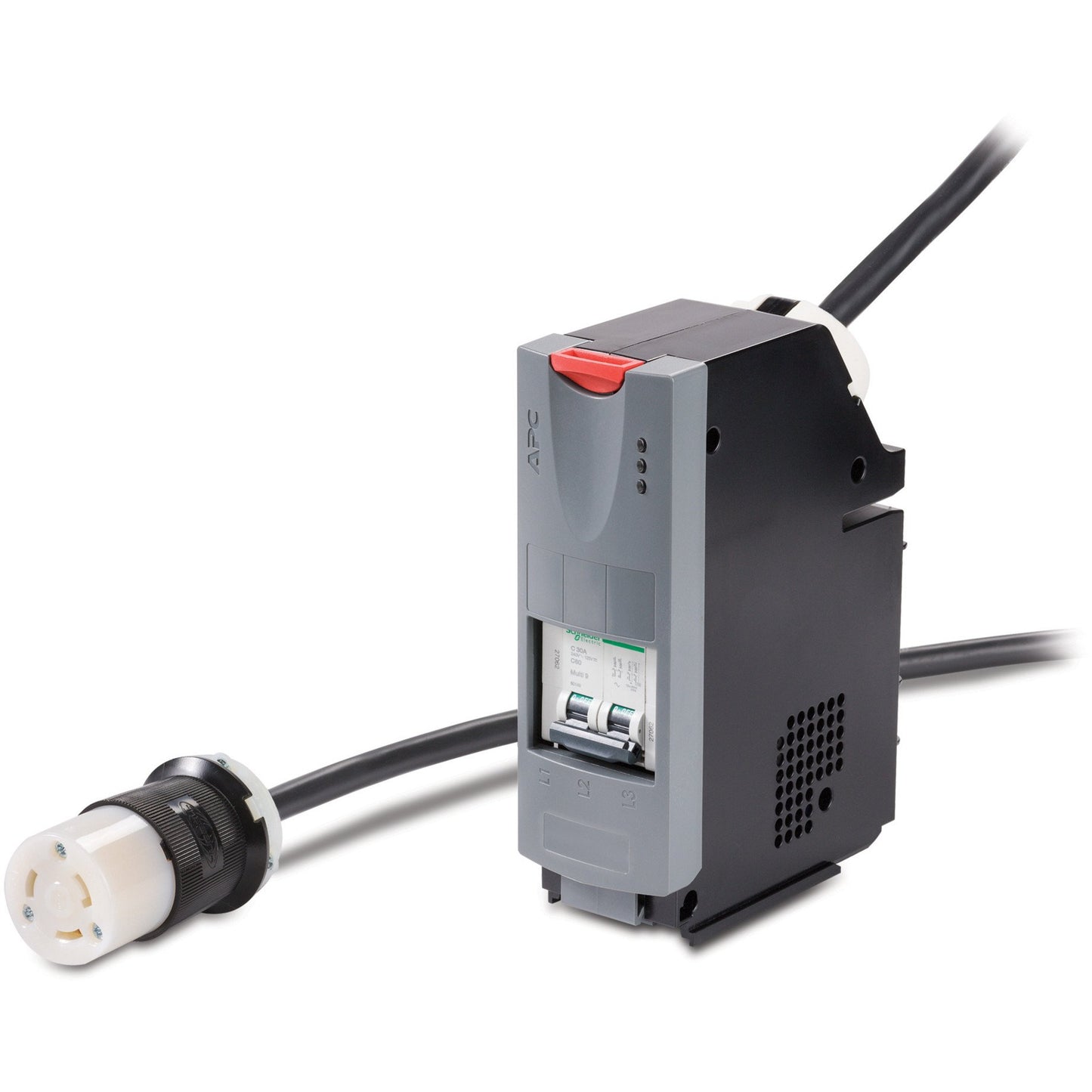

Photo is for illustration purposes only. Actual product may be different.
$706.28
$706.28
Sale Sold out
MSRP: $1,040.00
Shipping calculated at checkout.
  • Power Distribution Module rated at 208V input and output
  • Single NEMA L6-30R output connector for 30A load
  • Dimensions: 17.48" (W) x 15.98" (D) x 5" (H)
  • RoHS and TAA compliant; made in the United States
  • 1-year repair or replace service and support
  • Black enclosure with 620 cm cable length

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports high-current distribution with 30A capacity and 208V output for demanding IT infrastructure
  • TAA and RoHS compliance makes it suitable for government and enterprise purchasing standards
  • Backed by APC’s 1-year warranty for peace of mind and long-term investment protection

Product Overview

The APC IT Power Distribution Module 2 Pole (Model PDM2330L6-23-620) provides 208V distribution through a NEMA L6-30R outlet, rated for 30A at 2-pole, 3-wire configuration. Its compact form factor (17.48" width, 5" height) and 620 cm build make it suitable for data center and enterprise setups. Built in the United States and compliant with TAA and RoHS standards, it supports environmentally responsible and policy-compliant deployments. Backed by a 1-year repair or replace warranty, it ensures professional reliability and simplified maintenance in IT environments.

Specifications

Product Overview
Type Power Distribution Module
Model PDM2330L6-23-620
Form Factor Rack-mountable
Enclosure Color Black
Voltage Output 208 V
Voltage Input 208 V
Current Rating 30 A
Phase Single-phase
Wire Configuration 2-Pole, 3-Wire
Mounting Type Zero U vertical mounting
Warranty 1 year repair or replace

Physical & Environmental
Width 17.48 in
Height 5 in
Depth 15.98 in
Weight 12.79 lb
Cable Length 620 cm
Operating Temperature 0 to 40 °C
Operating Humidity 0 to 95% RH (non-condensing)
Storage Temperature -25 to 65 °C
Storage Humidity 0 to 95% RH (non-condensing)

Cloud Management & Licensing
Management Interface None (module level device)
Cloud Capability Not supported
Licensing Requirements None

Interfaces
Output Connector(s) 1 x NEMA L6-30R
Input Plug Type Hardwired or compatible input module
Power Distribution Architecture Modular

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
RoHS Compliant Yes
Certifications UL Listed, CSA

Advanced Security Features
Surge Protection No onboard surge suppression
Circuit Protection Breakers provided through upstream PDU
