APC IT Power Distribution Module 2 Pole 30A L6-30, 620cm

VENDOR: APC Mfg Part#: PDM2330L6-31-620 UPC#: 731304286196
1 1

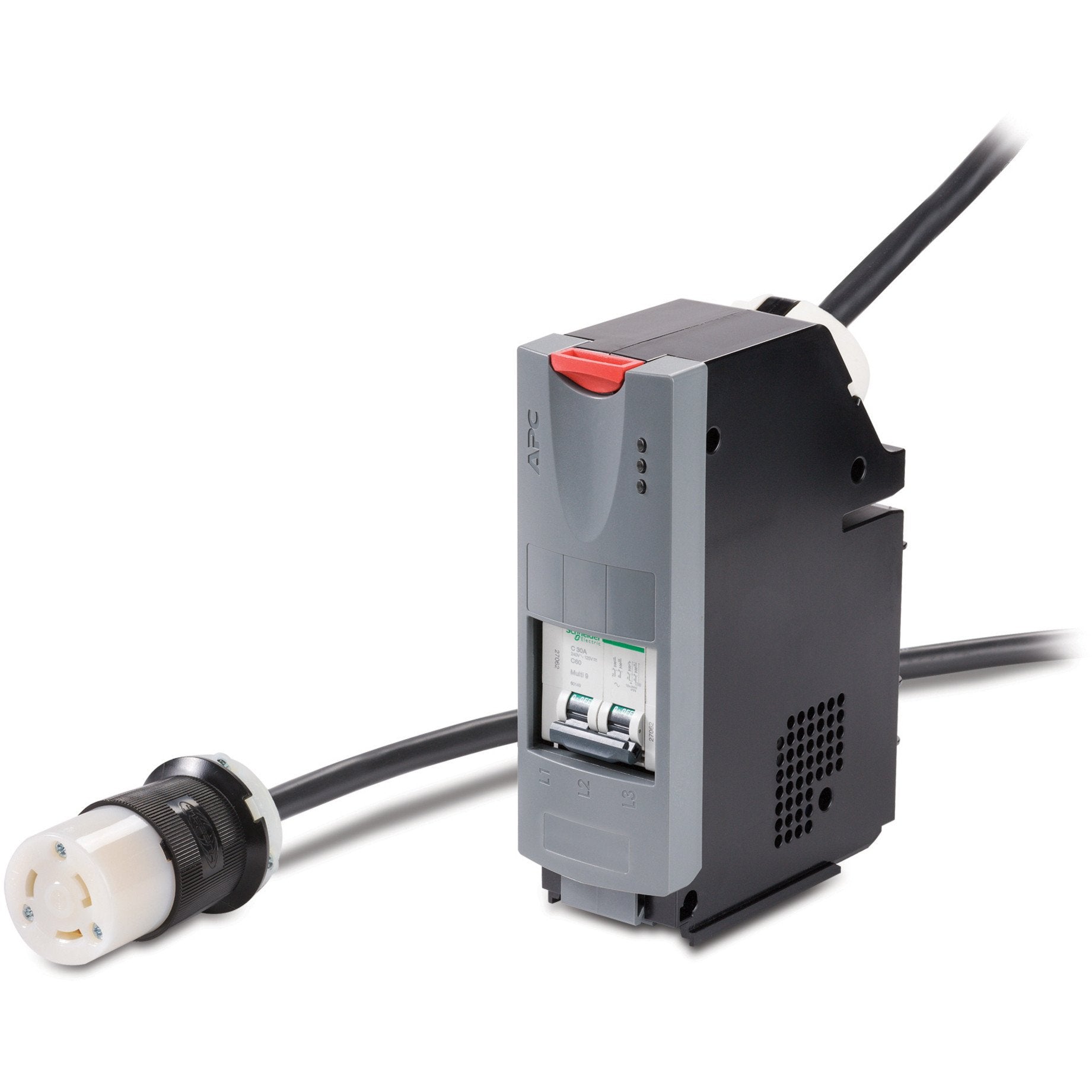

Photo is for illustration purposes only. Actual product may be different.
$689.01
$689.01
Sale Sold out
MSRP: $1,035.00
Shipping calculated at checkout.
  • 208V output voltage for consistent power distribution
  • 30A current rating via NEMA L6-30R connector
  • 620 cm cable for flexible installation reach
  • RoHS and TAA compliance for regulatory acceptance
  • 1-year repair or replace support warranty
  • Compact dimensions: 17.48" W x 15.98" D x 5" H

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for IT infrastructure requiring high-voltage, 30A power delivery with long-range reach.
  • Certified for RoHS and TAA compliance, suitable for government and environmentally-conscious deployments.
  • Backed by a 1-year repair or replace warranty, ensuring operational continuity and customer assurance.

Product Overview

The APC IT Power Distribution Module, model PDM2330L6-31-620, is a robust 2-pole solution delivering 208V at 30A for demanding IT environments. It features a NEMA L6-30R output connector and a 620 cm cable for flexible configurations. Its compact black enclosure (17.48" x 15.98" x 5") supports space-constrained setups. With RoHS and TAA compliance and a 1-year repair or replace warranty, it’s ideal for data centers and critical infrastructure looking for reliable, regulation-compliant power delivery.

Specifications

Product Overview
Type Power Distribution Module
Model PDM2330L6-31-620
Form Factor Modular Power Distribution Unit (PDU)
Voltage Output 208 V
Voltage Input 208 V
Current Rating 30 A
Poles 2 Pole
Cable Length 620 cm
Color Black
Service & Support Type 1 year repair or replace

Physical & Environmental
Width 17.48 in
Depth 15.98 in
Height 5 in
Weight 7.5 kg
Mounting Location Rear channel of NetShelter SX
Enclosure Type Metal
Operating Temperature 0 to 40°C
Storage Temperature -25 to 65°C
Operating Humidity 5 to 95% RH, non-condensing
Storage Relative Humidity 5 to 95%
Operating Elevation 0 to 3000 m
Storage Elevation 0 to 15000 m

Cloud Management & Licensing
Remote Monitoring Capabilities Via modular PDU with network management module (sold separately)
Cloud Management Support Optional via Schneider Electric EcoStruxure
Licensing Requirements None for hardware; software licensing optional for management

Interfaces
Input Connector Type Hardwired
Output Connector Type NEMA L6-30R
Output Connector(s) 1 x NEMA L6-30R
Number of Output Connections 1

Compliance & Origin
RoHS Compliance Yes
TAA Compliance Yes
Country of Origin United States
Certifications UL 60950-1, CSA C22.2 No.60950-1
Standards Met REACH, RoHS, TAA
REACH Compliance Yes
Environmental Compliance Yes

Advanced Security Features
Lockable Output Receptacles No
Tamper-Resistant Design No
