Products Memory, Storage and Components APC NetShelter PDU Advanced...

APC NetShelter PDU Advanced Switched 3PH 17.3KW 60A 208V 42 Outlet

VENDOR: APC Mfg Part#: APDU10452SW UPC#: 731304439868
1 2

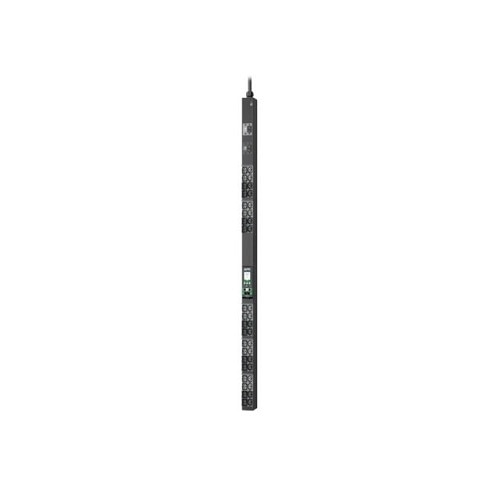

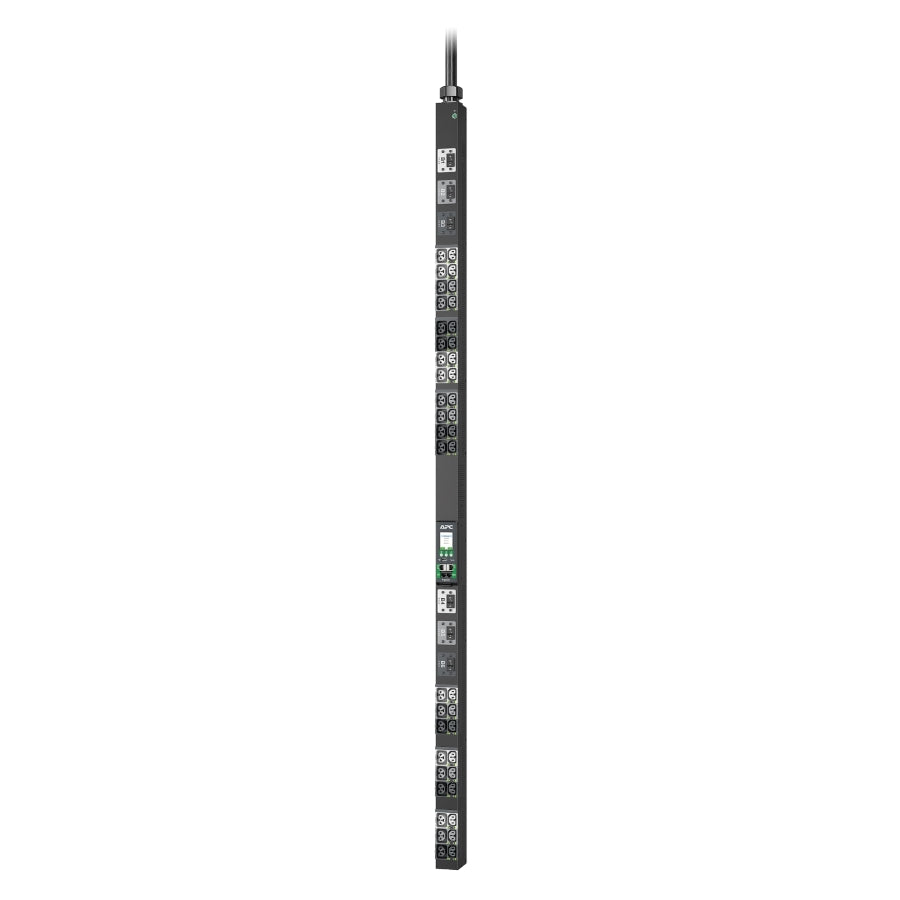

Photo is for illustration purposes only. Actual product may be different.
$3,828.25
$3,828.25
Sale Sold out
MSRP: $5,665.00
Shipping calculated at checkout.
  • 17.3KW / 17300 VA power capacity supporting high-density environments
  • 208V 3-phase input with IEC 60309 60A 3P+PE connector
  • 42 output ports including C13/C15/C19/C21 formats for versatile device support
  • Switched functionality with Ethernet port for network-based control
  • Rack-mountable with IP44-rated black enclosure for robust deployment
  • TAA and BAA compliant, UL 62368-1 certified, includes 3-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for enterprise-grade IT and data center deployments requiring 17.3KW high-density power
  • Advanced manageability via Ethernet and switched functionality allows precision remote control
  • Meets stringent compliance standards (TAA, BAA, UL 62368-1) ensuring deployment eligibility in regulated environments

Product Overview

The APC NetShelter Rack PDU Advanced, model APDU10452SW, is an advanced switched Power Distribution Unit engineered for robust and efficient power management in server rooms, data centers, and enterprise IT deployments. It delivers a substantial 17.3KW output capacity over a 208V 3-phase input with a 60A current, making it ideal for high-density IT racks. With 42 output connectors spanning C13, C15, C19, and C21 formats, this unit supports mixed device types and load balancing needs in complex IT setups.

Integrated Ethernet connectivity provides remote management and monitoring capabilities, enhancing operational control and uptime. The PDU's rack-mountable form factor and black IP44-rated enclosure ensure durability and fit within standard rack environments. It is certified under UL 62368-1, ensures compliance with TAA and BAA standards, and is covered by a comprehensive 3-year repair or replacement support plan.

Manufactured in the United States, this APC NetShelter PDU supports mission-critical infrastructures by delivering reliable, managed power distribution across critical IT assets. The unit is designed for systems engineers and IT managers looking for scalable and network-manageable power management in large-scale deployments.

Specifications

Product Overview
Type Switched Rack Power Distribution Unit (PDU)
Form Factor Rack-Mountable
Power Capacity 17.3 kW
Power Capacity (VA) 17300 VA
Input Voltage 208 V 3-Phase
Output Voltage 208 V
Current Rating 60 A
Color Black
Mounting Orientation Vertical
Application High-density server and networking environments
Model Number APDU10452SW
Warranty 3 Year Repair or Replacement

Cloud Management & Licensing
Cloud Monitoring Support Yes
Management Interface Web, SNMP, CLI, and EcoStruxure IT Platform
Firmware Upgradeable Yes
User Access Levels Multi-user with role-based access
Licensing No additional license required for basic cloud features
Supported Protocols HTTP, HTTPS, SNMPv1/v3, Telnet, SSH

Physical & Environmental
Height 71.89 in
Width 2.2 in
Depth 2.95 in
Enclosure Rating IP44
Operating Temperature Range 0°C to 60°C (32°F to 140°F)
Operating Humidity Range 5% to 95% (non-condensing)
Storage Temperature -25°C to 65°C (-13°F to 149°F)
Storage Humidity 5% to 95% (non-condensing)

Interfaces
Input Connector Type IEC 60309 60A 3P+PE
Output Connector Types C13, C15, C19, C21
Number of Output Connections 42
Network Interface 1 × Ethernet
Data Transfer Method SNMP, Web, Telnet
Remote Monitoring Capabilities Yes

Advanced Security Features
User Authentication LDAP, RADIUS, local user database
Secure Management Access HTTPS and SSH
Logging and Audit Trail Yes
Password Policy Enforcement Yes

Compliance & Origin
Compliance Standards UL 62368-1
TAA Compliant Yes
BAA Compliant Yes
Country of Origin United States
RoHS Compliant Yes
