APC NetShelter Switched Rack PDU, 14.4KW, 208V 3PH, 50A, 42 Outlets

VENDOR: APC Mfg Part#: APDU10451SW UPC#: 731304439837
1 2

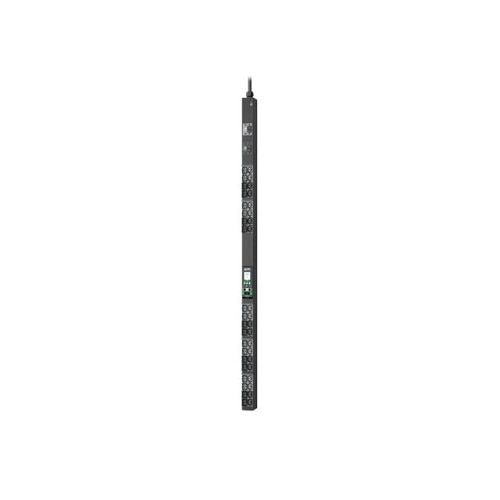

Photo is for illustration purposes only. Actual product may be different.
$3,337.39
$3,337.39
Sale Sold out
MSRP: $4,940.00
Shipping calculated at checkout.
  • 14.4KW / 14400VA power capacity supporting 208V three-phase input
  • Switched outlets with 42 total connectors: (21) C13/C15/C19/C21, (21) C13/C15
  • Ethernet port for advanced network management and remote control
  • Compact rack-mountable design (2.2" W x 2.95" D x 71.89" H)
  • 50A CS8365C power input; supports high current delivery
  • Meets TAA and BAA requirements with IP44-rated enclosure

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • High-density 42-outlet configuration provides maximum power flexibility for varied IT loads
  • Switched functionality and Ethernet connectivity allow remote management and energy usage monitoring
  • Compliance with TAA/BAA and UL safety standards ensures suitability for government and enterprise applications

Product Overview

The APC NetShelter Rack PDU Advanced Switched (Model APDU10451SW) is built for high-density server and networking environments, offering 14.4KW power capacity at 208V 3-phase input and 50A via a CS8365C connector. With 42 output connectors—including a mix of C13/C15/C19/C21—this rack-mountable, Ethernet-enabled PDU supports full remote outlet switching and environmental monitoring capabilities. TAA and BAA compliant, and IP44 rated for durability, it also includes a 3-year repair or replace warranty, making it ideal for secure, government, or enterprise IT applications.

Specifications

Product Overview
Type Switched Rack Power Distribution Unit (PDU)
Form Factor Vertical Rack-Mountable (0U)
Model Number APDU10451SW
Power Capacity 14.4 kW
Input Voltage 208 V 3 Phase
Output Voltage 208 V
Current Rating 50 A
Input Connection Type CS8365C
Power Provided (VA) 14400 VA
Color Black
Intended Application High-Density Server and Networking Environments
Warranty 3 Years Repair or Replace

Physical & Environmental
Height 71.89 in (1825 mm)
Width 2.2 in (56 mm)
Depth 2.95 in (75 mm)
Mounting Vertical (Zero U) in NetShelter Racks
Ingress Protection Rating IP44
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -25°C to 65°C (-13°F to 149°F)
Relative Humidity Range 5% to 95% (non-condensing)
Operating Altitude 0-3,000 m (0-10,000 ft)

Cloud Management & Licensing
Remote Management Web Interface, CLI, SNMP, EcoStruxure IT Ready
EcoStruxure IT Integration Supported
Firmware Upgradeable Yes
Licensing Requirements No license required for baseline functionality

Interfaces
Network Interface 10/100 Ethernet (RJ45)
Remote Management Protocols Telnet, HTTP, HTTPS, SNMP, SSH, FTP
Input Connector 1 x CS8365C
Output Connectors 21 x C13/C15 and 21 x C19/C21
Number of Outlets 42
Switched Outlets Individually Switched
Outlets Type A 21 x C13/C15
Outlets Type B 21 x C19/C21
Environmental Sensor Ports 2 (for temperature/humidity sensors)

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
BAA Compliant Yes
Certifications UL 62368-1, NOM, RoHS, REACH

Advanced Security Features
User Authentication Role-based access control with LDAP/RADIUS support
Encryption Support SSL/TLS for HTTPS, SSH for CLI
Event Logging Syslog and Email Event Notification Support
