| Product Type | Server Rack enclosure |
| Form Factor | Free-standing |
| Rack Units | 24U |
| Weight | 109.1 kg |
| Color | Black |
| Power Requirements | Not applicable (passive enclosure) |
| Manufacturer Part Number | AR3104 |
| Product Series | NetShelter SX |
| Mounting Type | Floor-standing |
| Load Capacity | 1363 kg (3000 lbs) static load, 1023 kg (2255 lbs) dynamic load |

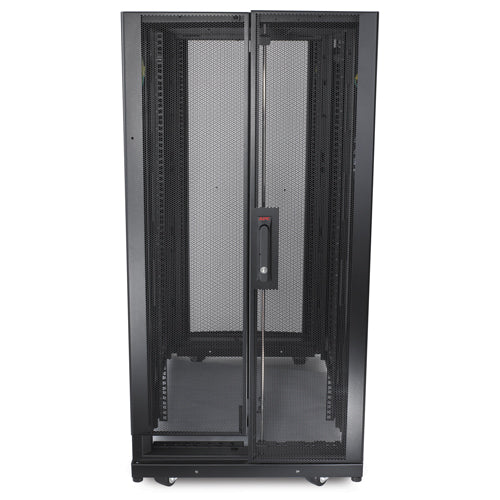

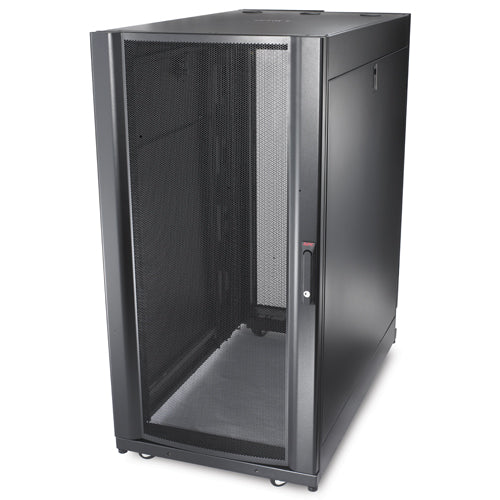

APC NetShelter SX 24U 1070mm Deep Server Rack Enclosure
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,822.60
Regular price
Sale price
$1,822.60
Unit price
per
MSRP: $2,650.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 24U server rack enclosure with 1070mm depth for high-density equipment
- Measures 23.62" wide, 42.13" deep, and 47.19" high
- RoHS compliant and TAA compliant for regulatory environments
- Durable black finish and professional-grade construction
- Backed by a 5-year repair or replace service plan
- Made in the United States
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- High-density design accommodates modern server and networking gear efficiently.
- Extended 1070mm depth and 24U capacity support scalable infrastructure deployments.
- Includes TAA and RoHS compliance for enterprise and government IT environments.
Product Overview
The APC NetShelter SX 24U Server Rack Enclosure (model AR3104) is a high-quality solution built for modern data centers and server rooms. It offers a 24U capacity and deep 1070mm footprint, ideal for high-density IT gear. Measuring 23.62" W x 42.13" D x 47.19" H, this rack supports robust deployments while preserving floor space. With TAA compliance, RoHS certification, and a 5-year repair or replace service, it's engineered for performance and peace of mind. Proudly manufactured in the USA, it delivers confidence and durability in professional environments.
Specifications
Product Overview
Physical & Environmental
| Width | 23.62 Inches (600 mm) |
| Depth | 42.13 Inches (1070 mm) |
| Height | 47.19 Inches (1199 mm) |
| Internal Mounting Depth | 37.8 Inches (960 mm) |
| Maximum Mounting Depth | 36 Inches (915 mm) |
| Minimum Mounting Depth | 8.25 Inches (210 mm) |
| Frame Type | Welded steel frame |
| Material | Steel with powder coat finish |
| Ventilation | Perforated doors for airflow |
| Caster Kit | Pre-installed casters and leveling feet |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Relative Humidity | 5% to 85% (non-condensing) |
Cloud Management & Licensing
| Remote Management Capable | Compatible with APC NetBotz and EcoStruxure IT |
| Management Interface | Optional environmental monitoring via accessories |
| Licensing Requirements | None; optional software and hardware available |
Interfaces
| Front Door Type | Perforated split door |
| Rear Door Type | Full perforated door |
| Side Panels | Removable with lock |
| Cable Access | Top and bottom cable entry slots |
| Grounding Provision | Yes (threaded grounding studs) |
Compliance & Origin
| Country of Origin | United States |
| TAA Compliant | Yes |
| RoHS Compliant | Yes |
| Certifications | UL 2416, EIA-310-E, REACH |
Advanced Security Features
| Lockable Doors | Yes, front and rear with key locks |
| Door Opening Angle | Up to 180 degrees |
| Security Options | Compatible with access control systems |
| Side Panel Security | Lockable and removable |
