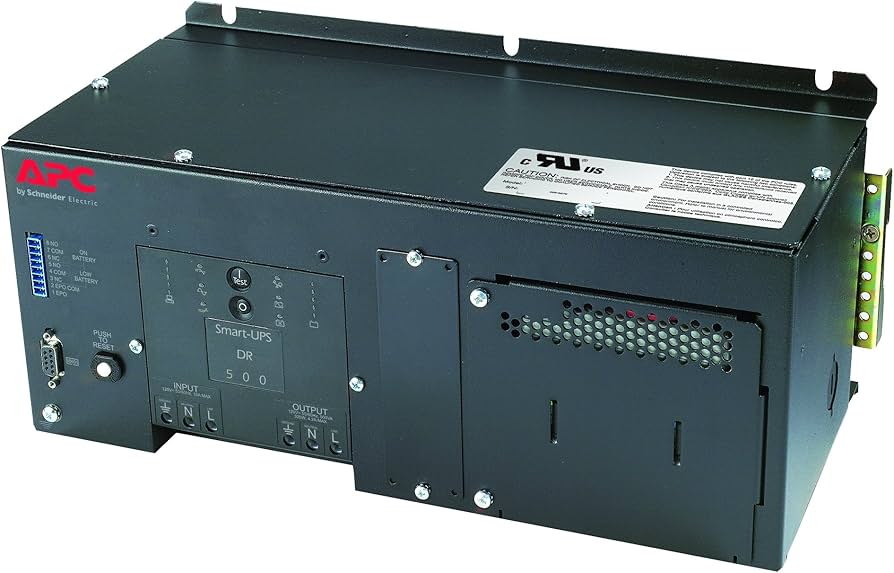

APC SUA500PDR-S Din Rail Panel Mount UPS, 500VA, 325W

VENDOR: APC Mfg Part#: SUA500PDR-S
1 1
Photo is for illustration purposes only. Actual product may be different.
$614.55
$614.55
Sale Sold out
MSRP: $914.00
Shipping calculated at checkout.
  • Line-interactive UPS model with 500VA / 325W power capacity
  • Hard-wire 3-wire (H N + E) input for direct installation
  • DIN rail and panel mount capability for flexible setup
  • TAA-compliant for government or regulated installations
  • Made in the United States
  • 2-year repair or replace warranty included

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports DIN rail and panel mounting ideal for automated industrial environments
  • Meets TAA compliance for public sector and federal procurement standards
  • Compact, hard-wired design offers professional-grade installation for secure power backup

Product Overview

The APC SUA500PDR-S is a line-interactive UPS engineered for DIN rail and panel mount scenarios, offering 500VA / 325W of power. Designed for compact environments, it features a hard-wired 3-wire (H N + E) input and is TAA-compliant, making it ideal for government and industrial deployments. Originating from the United States, it includes a 2-year repair or replace warranty, ensuring dependable performance in mission-critical setups.

Specifications

Product Overview
Type Line-Interactive UPS
Form Factor DIN rail / Panel mount
Power Capacity 500 VA / 325 W
Input Voltage Range 151 – 302 V
Nominal Input Voltage 230 V
Nominal Output Voltage 230 V
Input Connection Type Hard-wired 3-wire (H N + E)
Output Connection Type Hard-wired
Waveform Type Sine wave
Battery Type Sealed lead-acid, maintenance-free
Replaceable Battery Yes
Battery Recharge Time 3 hours
Runtime at Full Load 3 minutes (typical at 325 W)
Runtime at Half Load 13 minutes (typical at 162 W)
Backup Time Range 3 – 13 minutes
Power Requirements 220–240 V AC
Warranty 2 years repair or replace

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin United States
TAA Compliance Yes
Certifications UL 1778, CE, CSA, VDE
RoHS Compliance Yes
Reach Compliance Yes

Advanced Security Features
Tamper Resistance No
Password Protection Yes, through optional network card
Event Log Yes, via interface
SNMP Support Optional with network card

Interfaces
Serial Port 1 x DB-9 RS-232
USB Interface
SmartSlot Expansion 1
Communication Interface RS-232 serial
Alarm Signaling Audible and visible alarms for battery mode and low battery

Physical & Environmental
Dimensions (H x W x D) 90 x 222 x 337 mm
Net Weight 10.91 kg
Operating Temperature 0 to 40 °C
Storage Temperature -15 to 45 °C
Operating Elevation 0 - 3000 meters
Relative Humidity 0 to 95% non-condensing
Sound Level 45 dBA
Mounting Type DIN rail / Panel mount

Cloud Management & Licensing
Cloud Monitoring Optional via SmartSlot network management card
Management Interface Local serial; optional network card
Included Licenses None (Network Management Card sold separately)
