| Device Type | KVM Switch |
| Model | F1DN102KVM-UNN4 |
| Type | Secure Desktop KVM |
| Form Factor | Desktop |
| Connectivity Technology | Wired |
| Number of Computers Supported | 2 |
| TAA Compliance | Yes |
| NIAP Certification Level | Protection Profile v4.0 (PP 4.0) |
| Power Requirements | External power supply (included); 12V DC, 1A |
| Video Resolution Supported | Up to 3840 x 2160 @ 60Hz (4K UHD) |
Belkin 2-Port DP/HDMI Secure Desktop KVM, PP4.0, No CAC

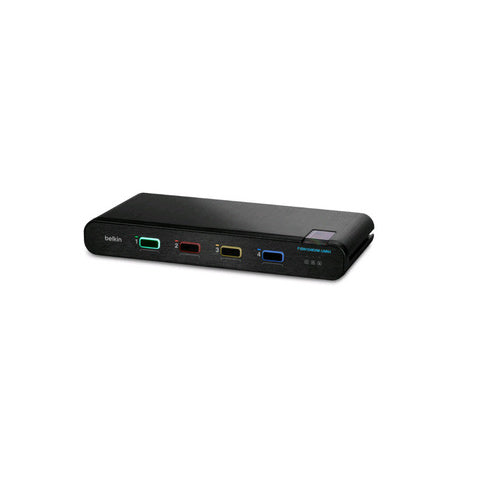

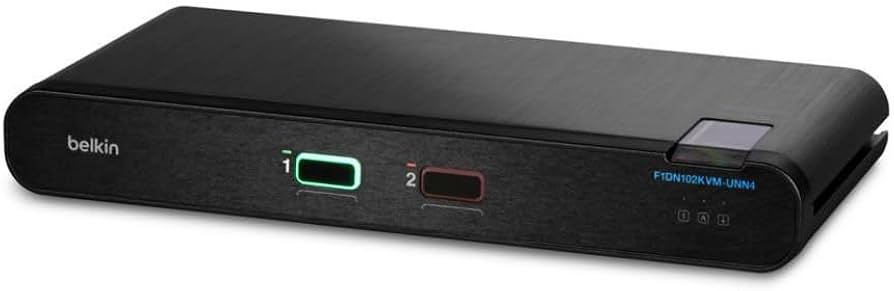

Photo is for illustration purposes only. Actual product may be different.
Regular price
$679.99
Regular price
Sale price
$679.99
Unit price
per
MSRP: $786.99
Shipping calculated at checkout.
Couldn't load pickup availability
- Supports up to 2 computers with secure switching
- DisplayPort and HDMI interfaces for host and console connectivity
- Max external resolution: 4K@60Hz
- Compliant with NIAP Protection Profile PSD 4.0
- Customizable port coloring and labeling for intuitive use
- TAA compliant and made in the United States
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- NIAP PP 4.0 compliance ensures high-assurance security for classified or regulated environments
- Customizable labeling and coloring design reduces user error during switching tasks
- Supports 4K@60Hz resolution for visually intensive applications, ideal for modern workstations
Product Overview
The Belkin 2-Port Secure Desktop KVM Switch (F1DN102KVM-UNN4) is a high-assurance, dual-computer control unit compliant with NIAP Protection Profile PSD 4.0. With DisplayPort and HDMI interfaces, it delivers 4K@60Hz resolutions and TAA compliance for secure installations. The customizable front-panel port labeling reduces risk of user error, and the desktop form factor with wired connectivity ensures durability across sectors like defense, finance, and healthcare. This model does not support CAC readers and is manufactured in the United States.
Specifications
Product Overview
Physical & Environmental
| Product Dimensions (WxDxH) | 7.9 x 3.4 x 1.6 in (200 x 86 x 40 mm) |
| Product Weight | 2.2 lb (1 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Operating Humidity | 0% to 80% RH, non-condensing |
| Storage Humidity | 0% to 95% RH, non-condensing |
Cloud Management & Licensing
| Remote Management | Not supported |
| Configuration Interface | Manual via front-panel buttons |
| Software Included | No software required |
| License Requirements | None |
Interfaces
| Video Input Interfaces | DisplayPort, HDMI |
| Video Output Interface | HDMI |
| Console Ports | USB keyboard, USB mouse, HDMI monitor |
| Host Ports | DisplayPort or HDMI, USB Type-B |
| Peripheral Ports | 2 x USB Type-B for host connection |
| Port Selection Method | Front-panel buttons |
| Audio Ports | None |
| DisplayPort Version | 1.2 |
| USB Version | USB 2.0 |
Compliance & Origin
| Country of Origin | United States |
| NIAP Compliance | Yes, Protection Profile PSD 4.0 |
| Certifications | FCC Class A, CE, RoHS, VCCI, TAA |
Advanced Security Features
| CAC Reader Support | No |
| Data Path Isolation | True – Physically isolated signal paths between connected systems |
| Keyboard/Mouse Emulation | Always-on emulation |
| Tamper-Evident Labels | Yes |
| Self-Test Functionality | Yes – Performed at power up |
| Customizable Port Labels | Yes – Front panel indicators |
