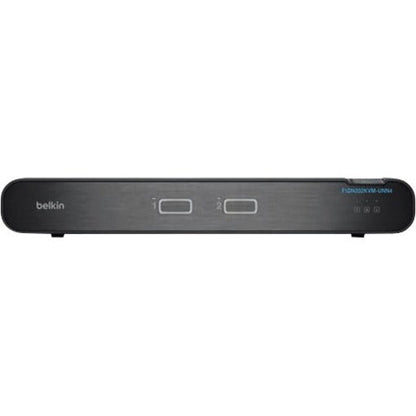

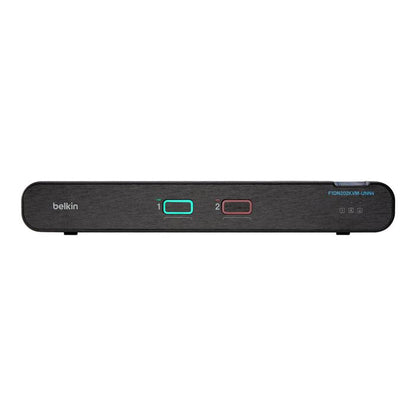

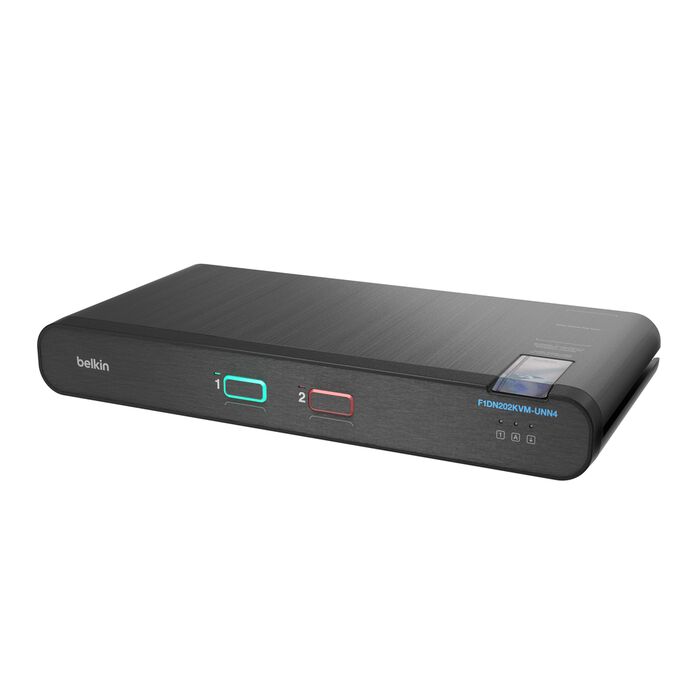

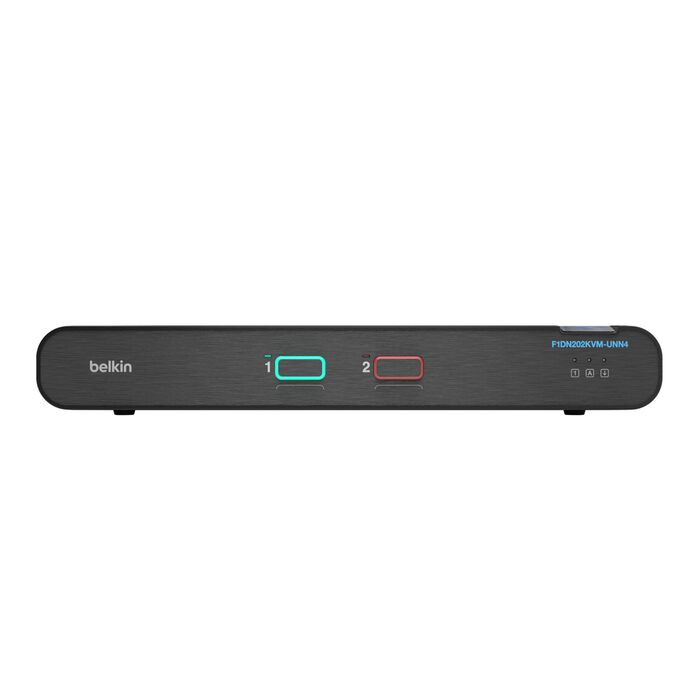

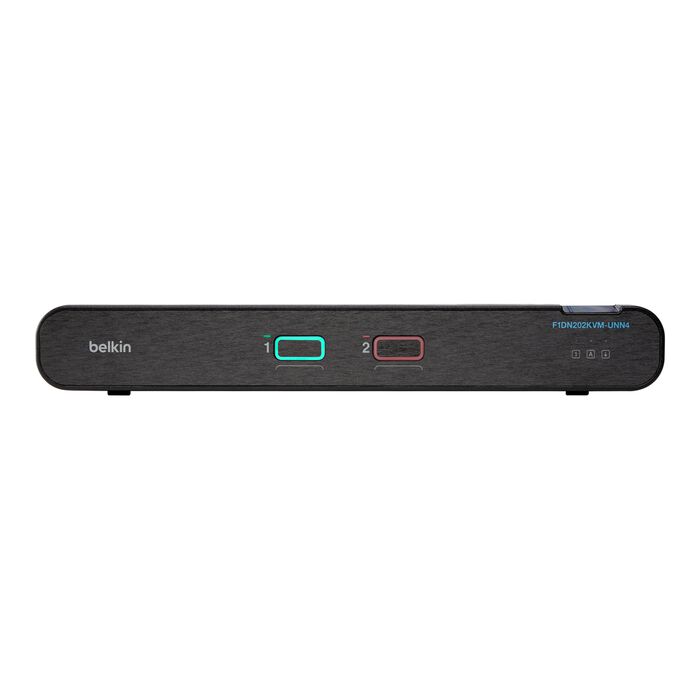

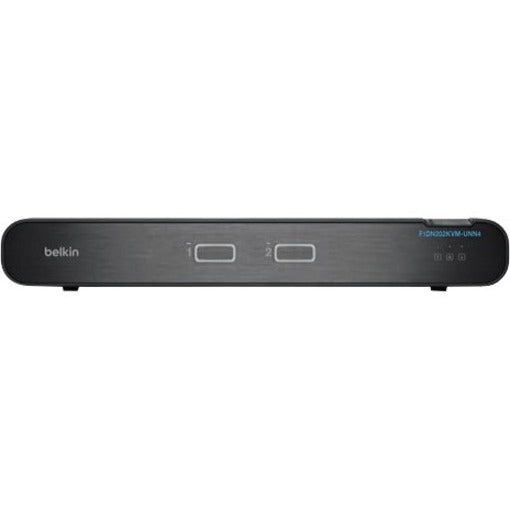

Belkin 2-Port Dual-Head DP/HDMI Secure KVM Switch (F1DN202KVM-UNN4)

VENDOR: BELKIN Mfg Part#: F1DN202KVM-UNN4 UPC#: 745883800957
1 4
Photo is for illustration purposes only. Actual product may be different.
$879.99
$879.99
Sale Sold out
MSRP: $1,019.99
Shipping calculated at checkout.
  • Supports 2 computers with dual monitors each (DisplayPort and HDMI compatible)
  • NIAP Protection Profile 4.0 (PP 4.0) compliant for secure desktop environments
  • Delivers up to 4K@60Hz video resolution for high image quality
  • Customizable port coloring and front panel labeling for reduced user errors
  • TAA compliant and manufactured in the United States
  • Desktop form factor with wired connectivity

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for secure environments with full NIAP PP 4.0 compliance to meet government and enterprise security standards
  • Supports high-resolution 4K@60Hz displays and dual-head setups, enhancing productivity across multiple systems
  • Customizable interface labeling and remote control support reduce operator errors and improve workflow precision

Product Overview

The Belkin 2-Port Dual-Head DP/HDMI Secure KVM Switch (model F1DN202KVM-UNN4) ensures secure desktop computing with NIAP PP 4.0 compliance. It supports two dual-head systems with DisplayPort and HDMI interfaces, enabling flexible deployment in mixed hardware environments. With 4K@60Hz video support and TAA compliance, it's built for high-security applications. Customizable front panel labeling and compatibility with Belkin KVM Remote Keyboards help streamline user workflows and reduce switching errors. Proudly made in the USA, this KVM device is ideal for defense, intelligence, and other secure workspace deployments.

Specifications

Product Overview
Device Type KVM Switch
Manufacturer Belkin
Model F1DN202KVM-UNN4
Form Factor Desktop
Number of Computers Supported 2
Monitor Support Dual Head
Video Resolution 4K at 60Hz
Power Source External power adapter (included)
Power Consumption Max 10 W

Physical & Environmental
Width 10.1 in (256.5 mm)
Depth 5.3 in (135 mm)
Height 1.7 in (43.4 mm)
Weight 2.4 lbs (1.1 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Humidity (Operating) 0% to 80% RH, non-condensing

Cloud Management & Licensing
Remote Management Support Via optional Belkin KVM Remote Controller with Integrated Keyboard
Licensing Requirements None
Included Software None (Hardware-based switch)
Front Panel Management Customizable port labeling and color coding

Interfaces
Computer Video Interface DisplayPort, HDMI
Console Video Interface DisplayPort, HDMI
Keyboard/Mouse Interface USB
Number of USB Ports 2
Audio Ports None
Number of Display Connections per Port 2 (One DP, One HDMI)
Data Transfer Rate Up to 5 Gbps (USB 3.0)
Host Ports 2
Console Ports 1 set shared dual-video output, keyboard & mouse ports

Compliance & Origin
TAA Compliant Yes
NIAP Protection Profile PP 4.0
Country of Origin United States
Certifications NIAP, Common Criteria, TAA, UL, FCC Class B
RoHS Compliant Yes

Advanced Security Features
Security Compliance Designed to meet NIAP Protection Profile 4.0 for Peripheral Sharing Devices
Data Path Isolation Full
Unidirectional Data Flow Enforcement Yes
Integrated Anti-Tampering Yes
Keyboard Buffer Protection Yes
User Authentication Does not store or require user credentials
Firmware Security Secure, non-reprogrammable firmware
