Belkin 4-Port Dual Head Secure Modular KVM Switch PP4.0

VENDOR: BELKIN Mfg Part#: F1DN204MOD-BA-4 UPC#: 745883789627
1 4
Photo is for illustration purposes only. Actual product may be different.
$483.42
$483.42
Sale Sold out
MSRP: $615.99
Shipping calculated at checkout.
  • Supports up to four host computers
  • Dual-head display support for user consoles
  • Modular design for secure and flexible deployment
  • Includes remote-control unit for convenient switching
  • Desktop form factor for space-efficient installation
  • TAA compliant and made in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Securely manage up to four computers with dual-monitor support, ideal for high-security environments.
  • TAA compliance and domestic manufacturing support eligibility for use in government and regulated industries.
  • Remote-control unit increases operational convenience and reduces desk clutter in secure installations.

Product Overview

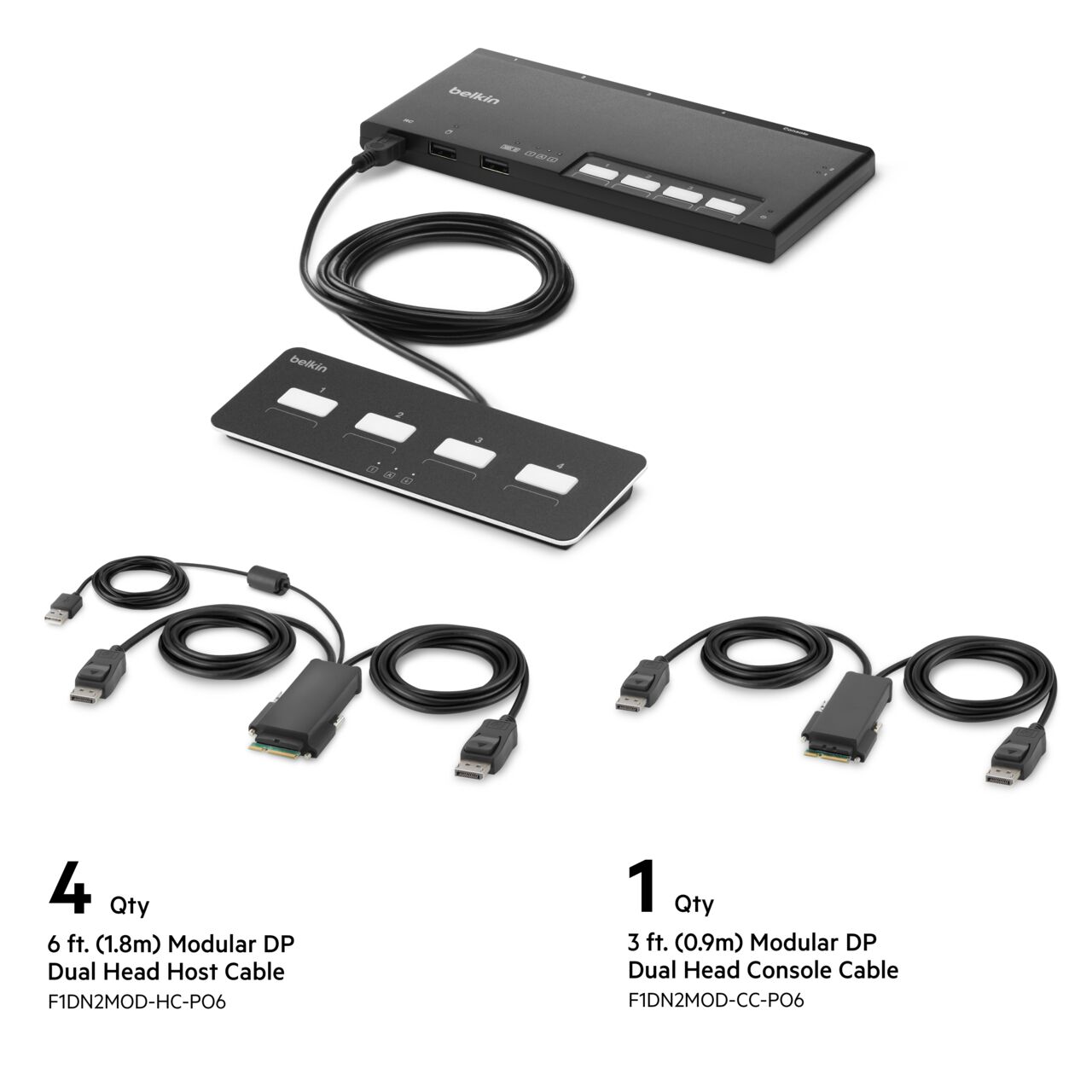

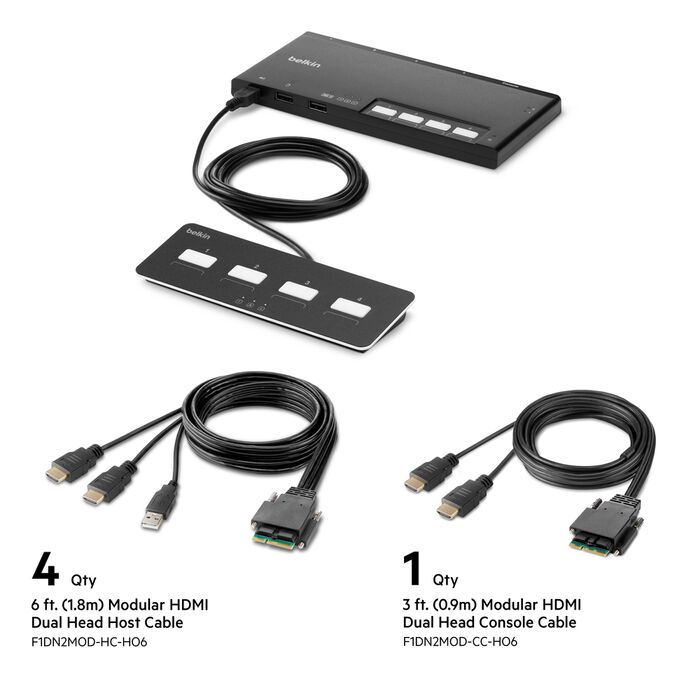

The Belkin 4-Port Dual Head Modular Secure KVM Switch PP4.0 (F1DN204MOD-BA-4) enables secure management of up to four host computers with dual-monitor support per user. With its modular design, the switch pairs seamlessly with industry-required peripherals and consoles. TAA compliant and built in the United States, it meets high standards for government and enterprise use. An included remote-control unit enhances usability through flexible system toggling. Suited for desktops, this KVM switch is optimized for organizations prioritizing security and workflow efficiency.

Specifications

Product Overview
Product Type Secure Modular KVM Switch
Model F1DN204MOD-BA-4
Device Type KVM Switch
Form Factor Desktop
Number of Computers Supported 4
Number of Displays Supported 2 per user
Power Requirements External power supply (included, 12V DC)
Power Consumption Less than 15W (typical)
Product Weight Approx. 3.0 lbs (1.36 kg)

Advanced Security Features
Security Certifications PP4.0 (NIAP Protection Profile v4.0)
Data Isolation Unidirectional data paths with physical air-gap separation
Keyboard Isolation Yes – no shared USB or emulated ports
Peripheral Isolation No USB data flows between connected systems
Tamper-Proof Design Yes – tamper-evident seals and detection
Red/Black Data Separation Yes – designed to prevent cross-domain leakage
Secure Firmware Signed and verified firmware, not field-upgradable

Physical & Environmental
Dimensions (W x D x H) 15.9 x 5.2 x 2.5 in (40.3 x 13.2 x 6.4 cm)
Operating Temperature 32° – 104°F (0° – 40°C)
Storage Temperature -4° – 140°F (-20° – 60°C)
Operating Humidity 0 – 80% RH, non-condensing
Storage Humidity 0 – 95% RH, non-condensing

Wireless Features
Wireless Support None – all wired connections only

Interfaces
Host Ports Modular Interface Cards (not included)
Console Ports Modular Console Ports (not included)
Peripheral Support Keyboard, Mouse, Video (Dual Head)
User Console Support Modular Dual Display + Keyboard/Mouse
Number of USB Ports Varies with modular card
Video Interface Dependent on installed video card (e.g., HDMI, DVI, DisplayPort)

Cloud Management & Licensing

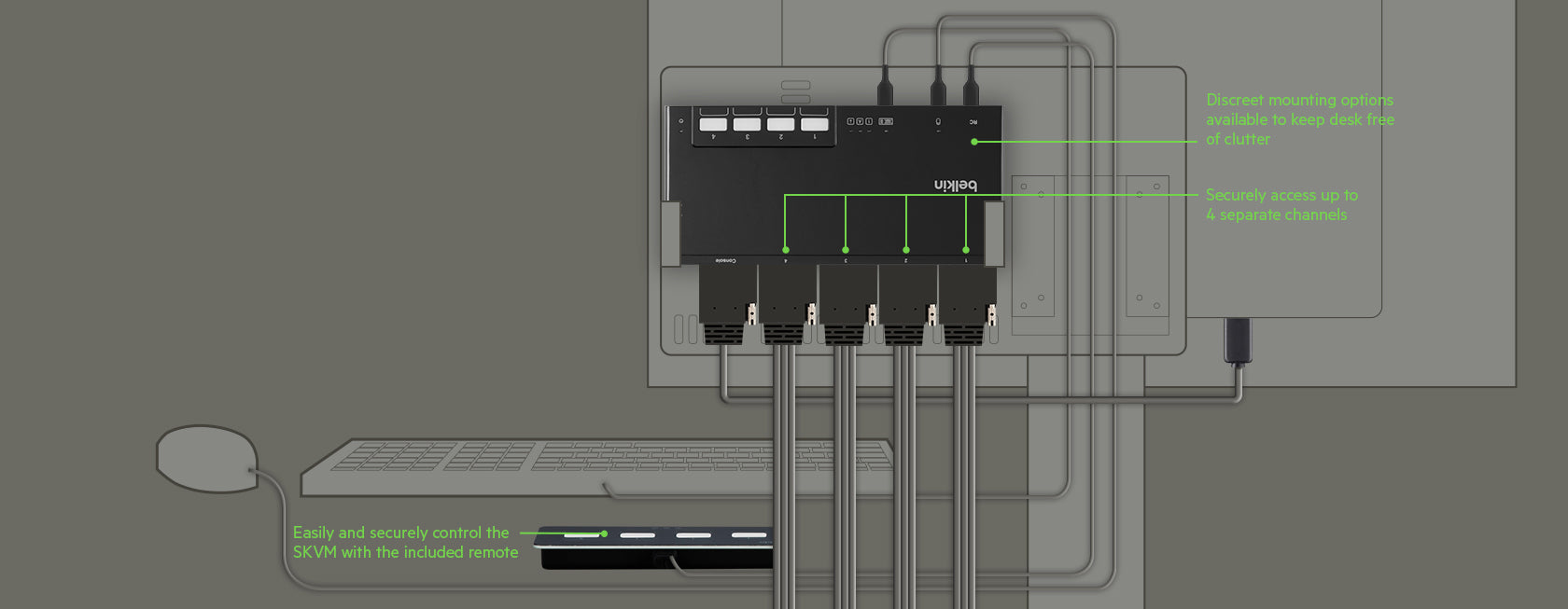

Remote Control Included remote-control unit for channel switching
Management Interface Manual switch via physical buttons or remote unit
Cloud Managed
License Required No – hardware provides all security features natively

Compliance & Origin
TAA Compliant Yes
Country of Origin United States
NIAP Certified Yes – Common Criteria PP4.0
RoHS Compliant Yes
FCC Certified Yes – Class A
CE Marked Yes
