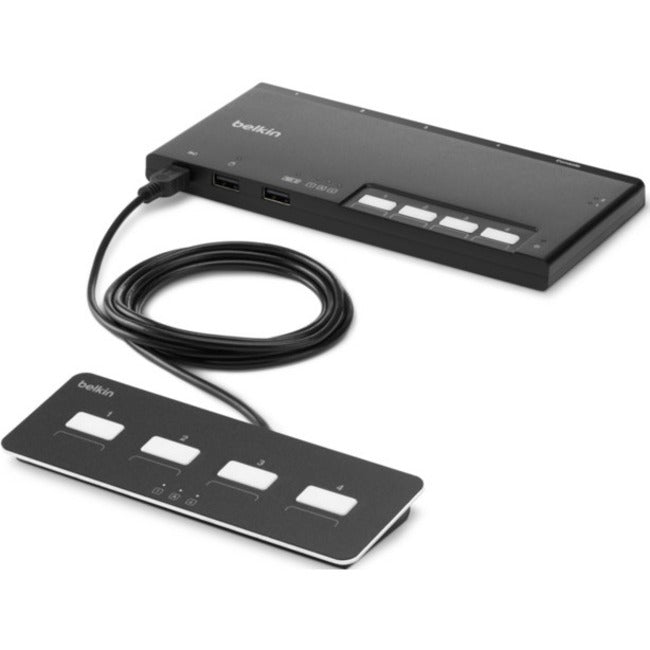

Belkin 4-Port Modular Secure KVM, 2-HD, DP, Remote, PP4.0

VENDOR: BELKIN Mfg Part#: F1DN204MOD-PP-4 UPC#: 745883789658
1 5
Photo is for illustration purposes only. Actual product may be different.
$960.81
$960.81
Sale Sold out
MSRP: $1,223.99
Shipping calculated at checkout.
  • Supports four-port switching via modular secure KVM framework
  • Dual-HD DisplayPort video capability for high-resolution outputs
  • NIAP Protection Profile 4.0 (PP4.0) compliance for maximum security
  • Compact, modular design for space-constrained environments
  • TAA compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers NIAP PP4.0 compliant security ideal for classified and government use
  • Compact modular form improves operational efficiency in tight spaces
  • TAA compliance facilitates acquisition in U.S. federal procurement programs

Product Overview

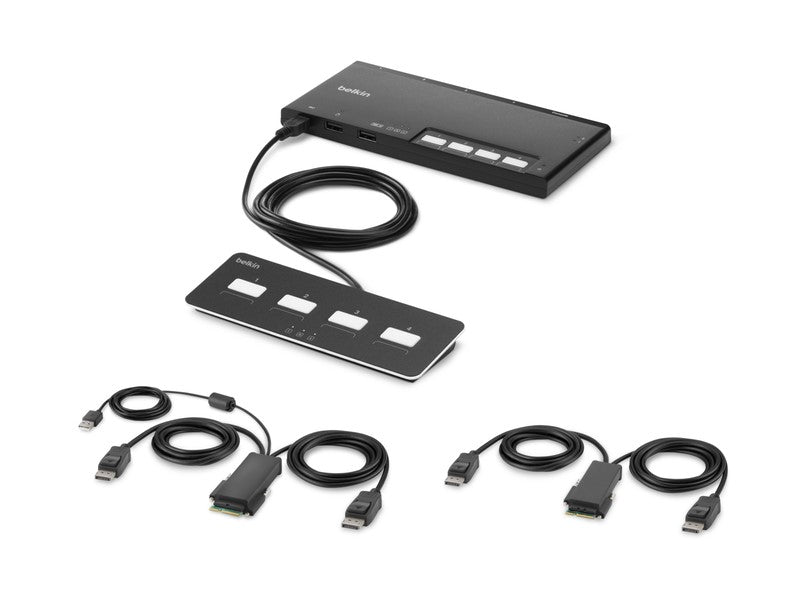

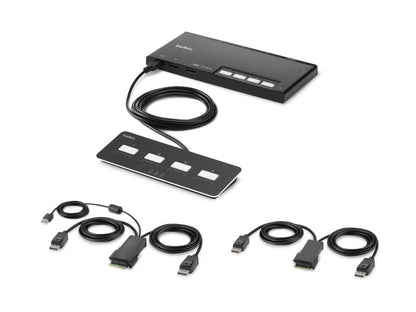

The Belkin Modular Secure KVM, F1DN204MOD-PP-4, is engineered for high-security computing, offering compliance with NIAP Protection Profile 4.0. It supports up to four isolated systems via dual-HD DisplayPort capability, enabling secure, high-resolution display switching from a single workstation. The switch is TAA compliant and manufactured in the United States, ensuring compatibility with government procurement standards. Placed within a compact modular form factor, it suits modern, restricted-space installations. Reliability, security, and interoperability are key deliverables of this purpose-built secure KVM solution.

Specifications

Product Overview
Product Type Secure Modular KVM Switch
Form Factor Modular, Desktop
Number of Computers Supported 4
Number of Displays Supported 2 (Dual-Head)
Display Support DP (DisplayPort)
Resolution Support Up to 3840 x 2160 @ 60Hz (4K UHD)
Power Supply External power adapter (12VDC, included)
Power Consumption 10 W (typical)
Weight 1.59 lbs (0.72 kg)

Wireless Features
Wireless Capability None

Compliance & Origin
TAA Compliant Yes
Country of Origin United States
NIAP Certification Protection Profile 4.0 (PP 4.0)
Certification Common Criteria, TAA
Tamper Evident Labels Yes
Complies With NIAP PSD PP v4.0, FIPS 140-2

Advanced Security Features
Secure Keyboard/Mouse Switching Yes, with dedicated processing per port
Peripheral Isolation Yes, with unidirectional data flow enforcement
Automatic Channel Isolation Yes
Firmware Protection Signed firmware, not field-upgradable
Access Protection Port Select Lockout with Secure Remote
Audio Isolation Dedicated audio path separation per channel and unidirectional flow

Interfaces
Console Display Ports 2 x DisplayPort
Console USB Ports 2 x USB Type-A (keyboard, mouse)
Console Audio 1 x Audio Out (3.5mm)

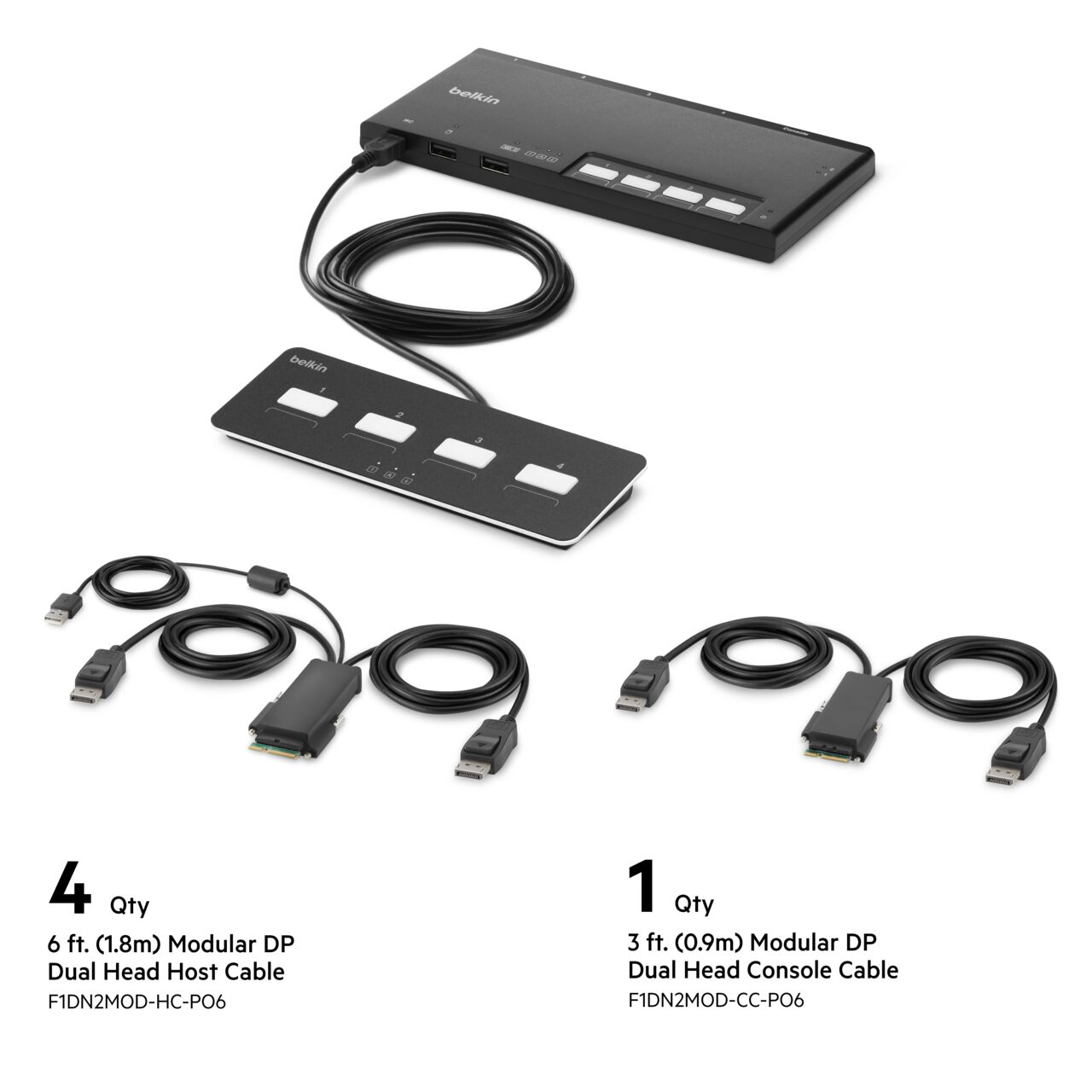

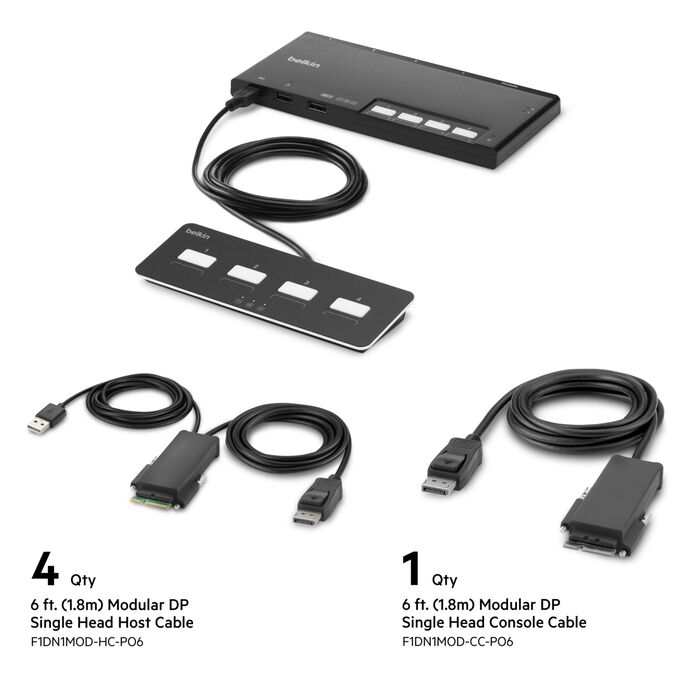

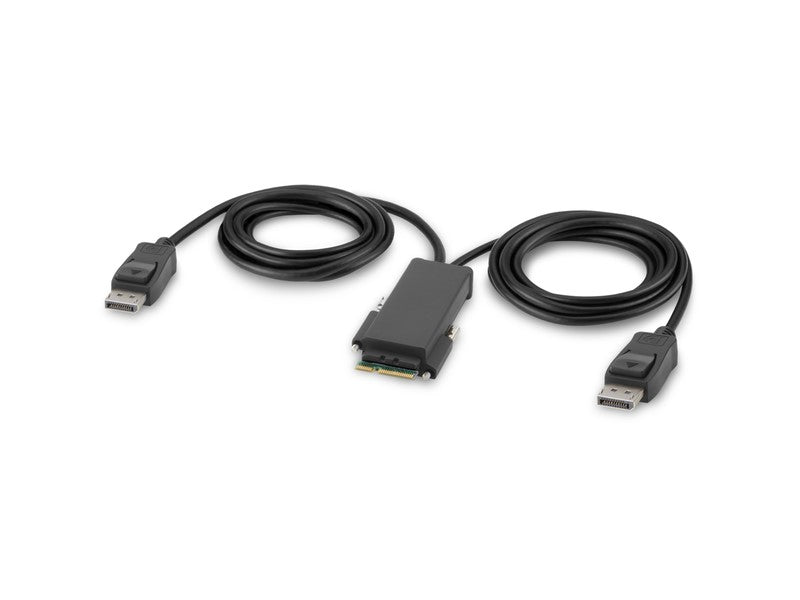

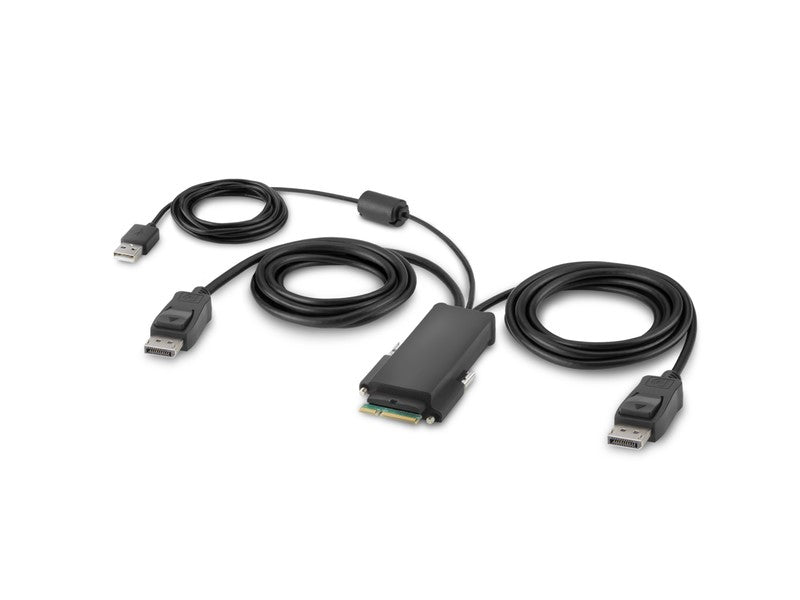

KVM Host Ports 4 x Modular KVM Interface Modules (supports DP/USB/audio via modular cables)
Remote Port 1 x Remote Control Port
USB Hub Support No
Keyboard/Mouse Emulation Yes, Secure Emulation
Data Rate DP video up to 21.6 Gbps per port

Physical & Environmental
Dimensions (W x D x H) 7.4 x 4.65 x 1.73 in (188 x 118 x 44 mm)
Enclosure Material Metal
Color Black
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Operating Humidity 0 to 80% RH, non-condensing
Storage Humidity 0 to 95% RH, non-condensing

Cloud Management & Licensing
Cloud Management No (air-gapped device)
Management Interface Physical remote control port
Licensing Required No
