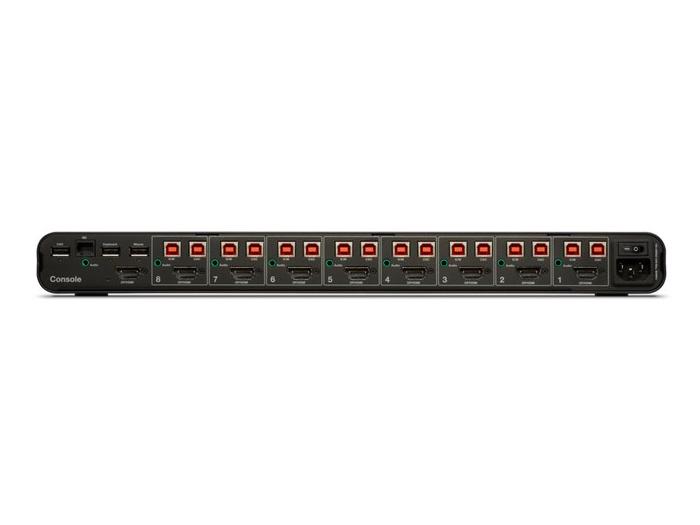

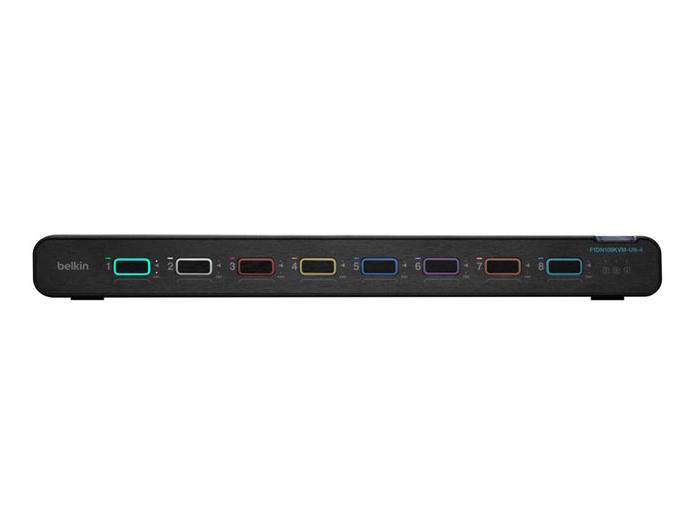

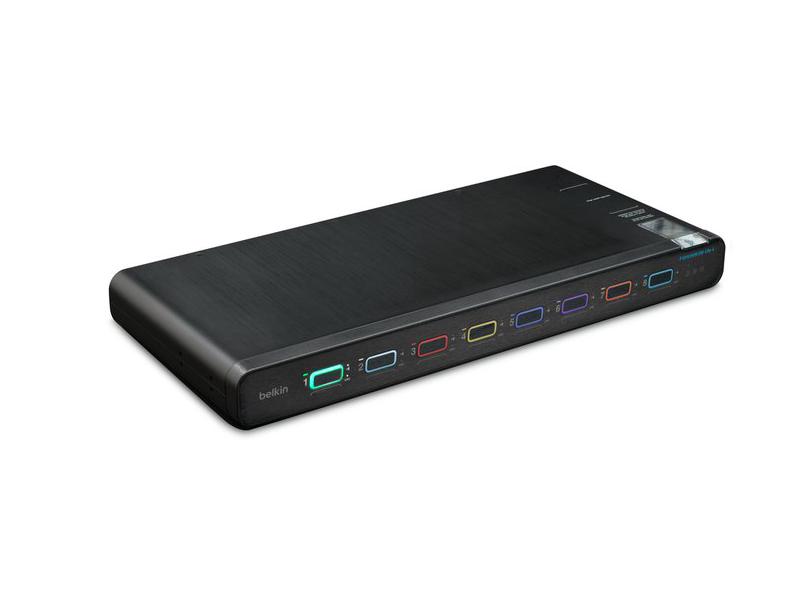

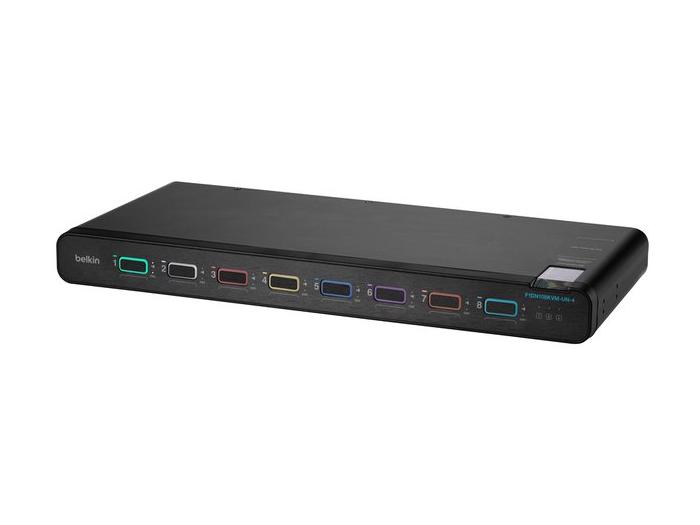

Belkin 8-Port DP/HDMI Secure Desktop KVM Switch with CAC, PP4.0

VENDOR: BELKIN Mfg Part#: F1DN108KVM-UN-4 UPC#: 745883800926
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,751.18
$1,751.18
Sale Sold out
MSRP: $2,229.99
Shipping calculated at checkout.
  • - Supports up to 8 computers for secure desktop switching
  • - Offers DisplayPort and HDMI interfaces for flexible video connectivity
  • - Delivers high-resolution output up to 4K at 60Hz
  • - NIAP Protection Profile PSD 4.0 compliant for secure environments
  • - Customizable port colors and labels reduce switching errors
  • - Wired desktop form factor with TAA compliance and U.S. origin

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Delivers high-security compliance with NIAP PSD 4.0, ideal for sensitive government and enterprise environments
  • - Customizable front-panel port identification enhances workflow accuracy and minimizes operational risk
  • - Supports high-resolution 4K video at 60Hz across multiple systems for seamless, high-quality display performance

Product Overview

The Belkin 8-Port Secure Desktop KVM Switch (model F1DN108KVM-UN-4) allows secure and efficient control of up to eight computers from a single DP or HDMI console. Designed for environments requiring NIAP PSD 4.0 compliance, it supports DisplayPort and HDMI interfaces with up to 4K @ 60Hz video resolution. Its customizable port labeling and coloring streamline identification and reduce switching errors. With a wired desktop form factor, TAA compliance, and U.S. manufacturing origin, this KVM switch is tailored for professional and federal deployments where system isolation and security are mandatory.

Specifications

Product Overview
Device Type KVM Switch
Model F1DN108KVM-UN-4
Form Factor Desktop
Port Count 8
Connectivity Technology Wired
Video Resolution Supported 4K @ 60Hz
Console Video Interfaces DisplayPort, HDMI
Computer Video Interfaces DisplayPort, HDMI
CAC Support Yes (Common Access Card authentication support)
Power Supply Type External AC Adapter
Power Input 100–240V AC, 50/60Hz
Power Consumption 30W (max)

Physical & Environmental
Dimensions (W x D x H) 17.3 x 7.2 x 1.7 in (439.4 x 182.4 x 43.2 mm)
Weight 6.3 lbs (2.85 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Humidity (Operating) 0% to 80% RH (non-condensing)
Mounting Option Desktop, optional rack-mount kit

Advanced Security Features
Secure Isolation Full air-gapped data channel isolation between ports
Unidirectional Optical Data Diodes Yes
Non-Reprogrammable Firmware Yes (Tamper-Proof ROM)
Keyboard and Mouse Filtering Yes (USB DCD - Device Class Devices filtering)
No Shared Resources Between Ports Yes
Tamper Evident Seals Yes
Automatic Port Detection Yes

Interfaces
Host Ports 8 x USB Type B, HDMI/DisplayPort combo (with DPP conversion)
Console Ports 2 x USB Type A, HDMI/DisplayPort combo, 1 x CAC (USB Type A)
Peripheral USB Ports 2 x USB 2.0
Compatible Video Interfaces DisplayPort 1.2, HDMI 1.4 via adapters
Peripheral Audio No
Keyboard/Mouse Interface 2 x USB HID (Console)
Switching Method Push-button and host-based channel selection
Hotkey Switching Support No (NIAP restriction)
Remote Control Support Yes (Optional RCW Integrated Keyboard)

Compliance & Origin
NIAP Certification Level Protection Profile v4.0 (PSD 4.0)
TAA Compliant Yes
Country of Origin United States
Certifications FCC Class A, RoHS, REACH, NIAP PSD 4.0
SEC Compliance Compliant with U.S. Government Secure KVM mandates

Cloud Management & Licensing
Cloud Management None (air-gapped, secure desktop device)
License Requirement None
Configuration Tools On-device interface; configurable labels and color indicators
