Products Computers & Laptops BenQ OPS Slot-in PC, Core-i7

BenQ OPS Slot-in PC, Core-i7

VENDOR: BENQ Mfg Part#: 5J.F5S11.222 UPC#: 840046046521
1 1

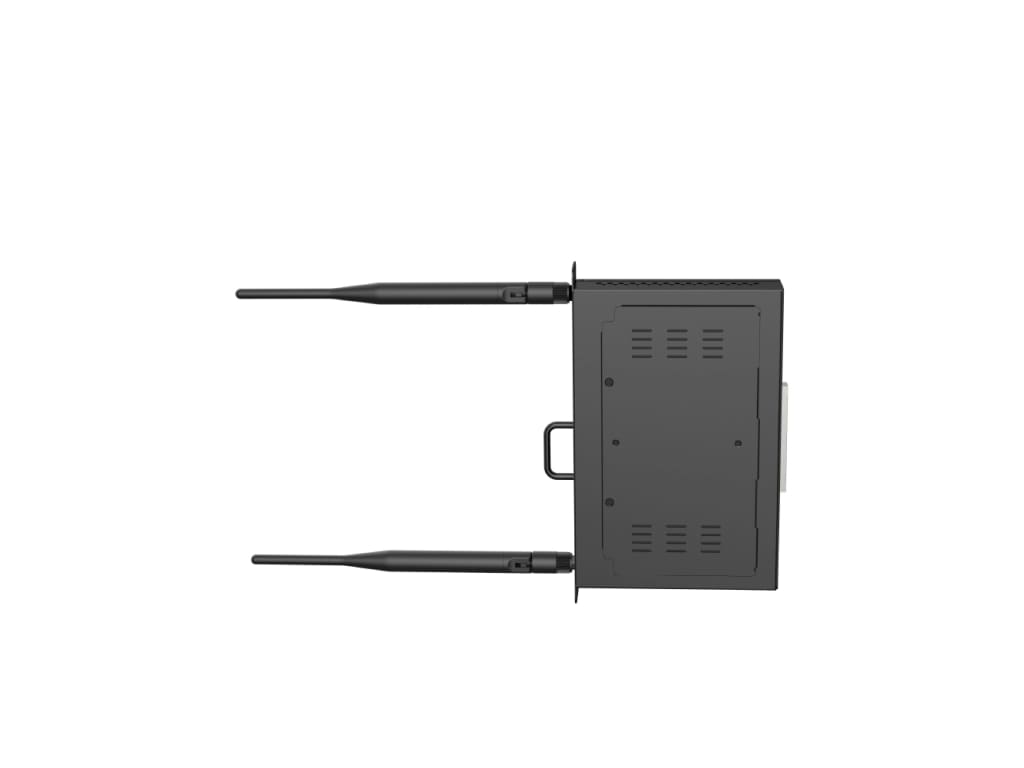

Photo is for illustration purposes only. Actual product may be different.
$1,499.00
$1,499.00
Sale Sold out
Shipping calculated at checkout.
  • OPS form factor ensures modular, cable-free installation.
  • Powered by Intel Core i7 processor for high-performance computing.
  • Designed for integration with BenQ interactive displays and signage.
  • Ideal for education, corporate, and kiosk deployments.
  • Multiple fields like RAM and clock speed are unspecified.

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Modular OPS design reduces installation complexity and supports fast deployment.
  • Intel Core i7 processor enables smooth multitasking and media handling.
  • Designed to pair seamlessly with BenQ display systems for cohesive solutions.

Product Overview

The BenQ OPS Slot-in PC combines Intel Core i7 processing with the OPS form factor for seamless integration with BenQ digital displays. This allows easy installation and upgrade options for classrooms, conference rooms, and digital signage. While optimized for performance, key details such as RAM and storage are not disclosed and should be confirmed based on application needs.

Specifications

Product Overview
Product Type OPS Slot-in PC
Form Factor OPS (Open Pluggable Specification)
Processor Intel Core i7
Chipset Intel H110
Operating System Compatible with Windows 10 Pro (OS not included)
Power Supply 12V DC input (provided by OPS slot)
Weight 1.1 kg

Wireless Features
Wireless Networking Optional (M.2 2230 slot for Wi-Fi module)
Antenna Connectors 2 x external antenna retention holes

Compliance & Origin
Country of Origin China
Certifications CE, FCC Class B, RoHS
TAA Compliance No
EPEAT Certification Not certified
Energy Star Certified No

Advanced Security Features
BIOS Security BIOS write protection, Secure Boot
TPM Support TPM 2.0 integrated (if supported by CPU/OS)
Physical Security Kensington Lock Slot

Interfaces
USB Ports 4 x USB 3.0, 2 x USB 2.0
Video Output Ports 1 x HDMI 1.4, 1 x DisplayPort 1.1
Audio Port 1 x 3.5 mm audio out
Serial Port 1 x RS232
LAN Ports 1 x RJ-45 (Gigabit Ethernet)
Storage Interface 1 x SATA 3.0, 1 x M.2 (SATA or PCIe)
OPS Interface Connector 80-pin JAE connector (OPS standard)

Physical & Environmental
Dimensions (W x H x D) 180 x 119 x 30 mm
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 60°C
Operating Humidity 10% to 85% non-condensing
Cooling Active cooling (fan)
Mounting Compatibility OPS-compliant displays and signage

Cloud Management & Licensing
Remote Management Support Supports Intel vPro (if CPU supports it)
Cloud Management Platform Compatible with BenQ Device Management Solution (DMS)
License Included No OS or license included
