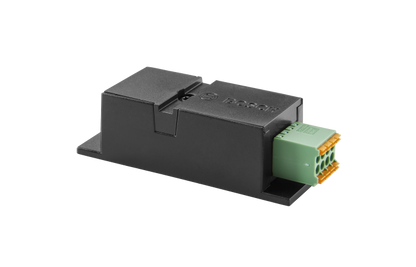

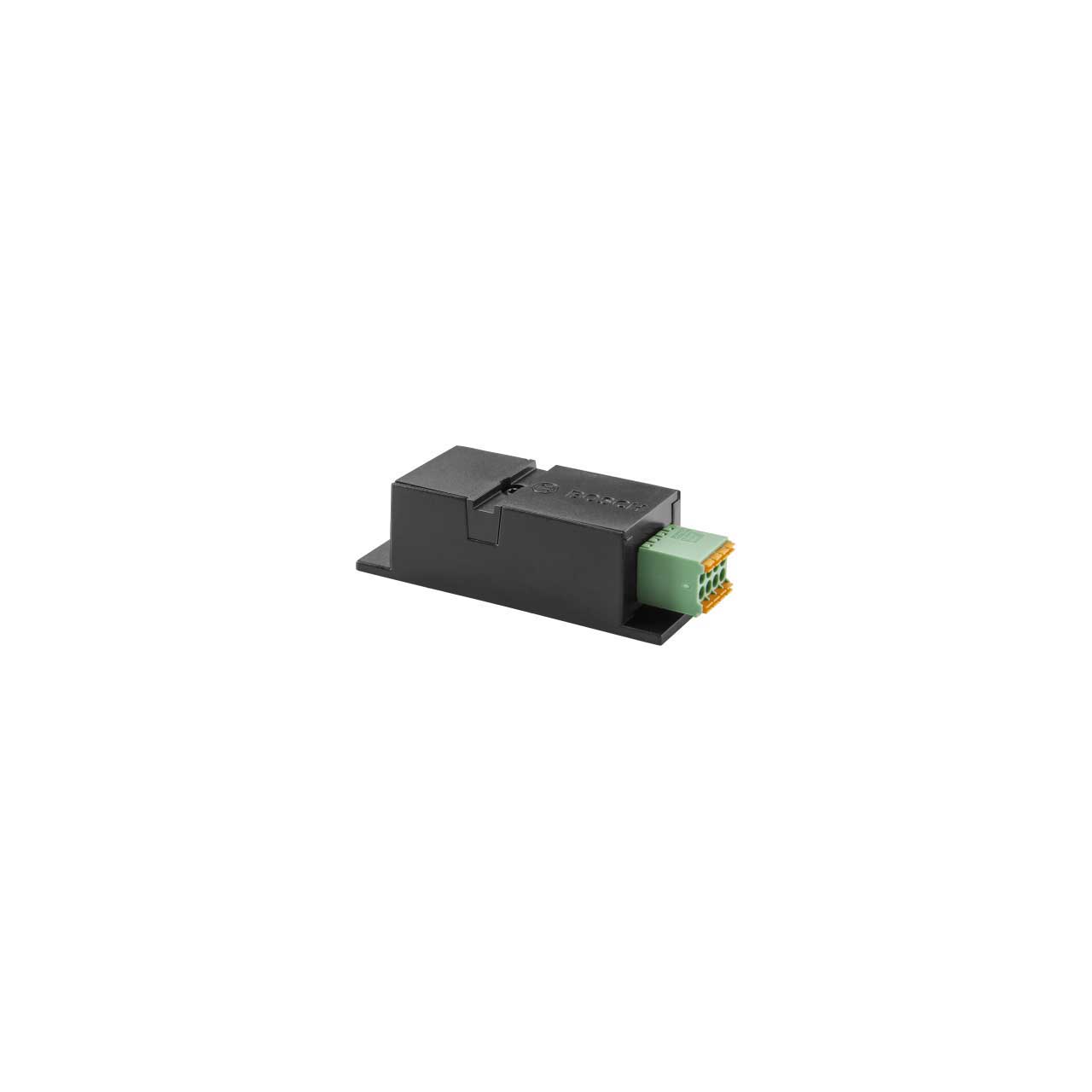

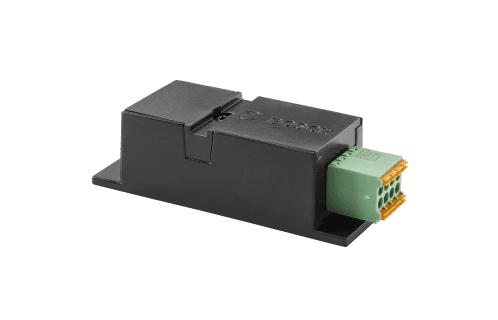

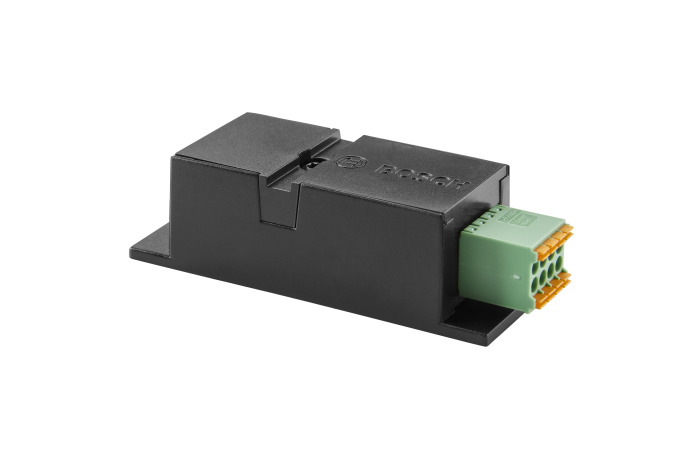

BOSCH DCNM-IDESKINT On-Air & Telephone Interface Kit

VENDOR: BOSCH Mfg Part#: DCNM-IDESKINT UPC#: 800549929509
1 4
Photo is for illustration purposes only. Actual product may be different.
$64.54
$64.54
Sale Sold out
MSRP: $101.00
Shipping calculated at checkout.
  • Compact dimensions: 3.04" W x 1.18" D x 0.91" H
  • Compatible with BOSCH DCNM-IDESK conferencing systems
  • TAA compliant for government and enterprise applications
  • Manufactured in Portugal for quality assurance
  • Network accessory category for seamless system integration

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed to extend functionality of BOSCH DCNM-IDESK systems with On-Air and telephone interfacing.
  • TAA compliance assures compatibility with government and enterprise regulatory requirements.
  • Compact physical footprint makes it easy to install in restricted spaces without loss of performance.

Product Overview

On-air & telephone interface kit for DCNM-IDESK

Specifications

Product Overview
Product Type Network Accessories
Manufacturer Bosch
Model Name DCNM-IDESKINT
Product Name BOSCH DCNM-IDESKINT On-Air & Telephone Interface Kit
Form Factor Module
Intended Application Connection for On-Air and Telephone hybrid interface with DCN multimedia system
Weight 43 g
Power Requirements Powered via DCNM-IDESK base device
Device Compatibility DCNM-IDESK Interpreter Desk

Physical & Environmental
Width 77.2 mm
Depth 30 mm
Height 23 mm
Enclosure Material ABS Plastic
Color Dark Gray
Installation Method Mounts inside the DCNM-IDESK base
Operating Temperature 0 °C to +35 °C
Storage Temperature -20 °C to +70 °C
Operating Humidity 5% to 95% (non-condensing)

Cloud Management & Licensing
Cloud Management Not applicable
Licensing Requirements No additional licensing required
Management Interface Managed via DCNM-IDESK system interface

Interfaces
Interface Type RJ-45 (On-Air input)
Additional Interface RJ-45 (Phone Hybrid input)
Supported Audio Signals Balanced analog audio
Supported Audio Levels +6 dBu max
Audio Output Impedance 150 Ohms
Audio Input Impedance 20 kOhms
Port Count 2 x RJ-45

Compliance & Origin
Country of Origin Portugal
TAA Compliant Yes
Certifications CE, WEEE, REACH, RoHS
EMC Compliance EN 55032 Class B, EN 55024
Product UPC 800549929509
Environmental Compliance RoHS Compliant
