BOSCH FIXED DOME 2MP HDR IR I/O GOV NDV-5702-AL-GOV

VENDOR: BOSCH Mfg Part#: NDV-5702-AL-GOV UPC#: 800549389303
1 1
Photo is for illustration purposes only. Actual product may be different.
$762.00
$762.00
Sale Sold out
Shipping calculated at checkout.
  • 2MP resolution with HDR for enhanced image clarity in challenging lighting
  • Varifocal 3.2–10.5mm lens for adjustable coverage applications
  • Integrated IR illumination for effective night vision
  • Input/Output (I/O) support for systems integration
  • TAA-compliant for use in federal and government applications
  • Country of origin: Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for security-critical environments that require TAA-compliant equipment, such as federal and government institutions
  • Advanced HDR and IR features provide dependable performance in low-light or mixed-light settings
  • Flexible lens range and I/O integration make it adaptable to wide-ranging security systems

Product Overview

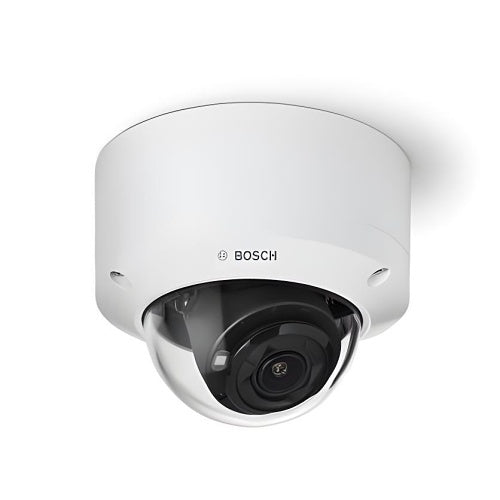

The BOSCH NDV-5702-AL-GOV is a high-performance 2MP fixed dome IP camera featuring HDR imaging for optimized visibility in dynamic lighting. With a 3.2–10.5mm varifocal lens and infrared (IR) capabilities, it ensures comprehensive surveillance during day and night. The camera includes I/O functionality for system integration and complies with TAA regulations, making it ideal for government and secure enterprise environments. Manufactured in Taiwan, it provides a durable and compliant solution for professional security deployments.

Specifications

Product Overview
Product Type Fixed Dome IP Camera
Image Sensor 1/2.8-inch CMOS
Effective Megapixels 2 MP
Maximum Resolution 1920 x 1080
High Dynamic Range (HDR) Yes
Day/Night Functionality True Day/Night (ICR)
Lens Type Varifocal
Focal Length 3.2–10.5 mm
Aperture F1.6 – F3.6
Power Consumption 8.3 W (typical)
Power Supply Options 12 VDC / PoE (IEEE 802.3af Class 0)
Housing Type Dome, vandal-resistant

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
CE Certification Yes
UL Certification Yes
FCC Compliance Part 15 Subpart B, Class A
RoHS Compliance Yes

Advanced Security Features
Data Encryption HTTPS, SRTP, TLS 1.2/1.3
Password Protection Multi-level UserAuthentication
Secure Boot Yes
Video Authentication Watermarking, Signing

Interfaces
Ethernet Interface 1 x RJ-45 10/100 Base-T
Video Compression H.265, H.264, MJPEG
Audio Interface 1 x mono line in, 1 x mono line out
Alarm Inputs 2
Alarm Outputs 1
Audio Streaming Two-way
ONVIF Compliance Profile S, G, T
Edge Storage microSD / microSDHC / microSDXC card slot (up to 2 TB)

Physical & Environmental
Dimensions (D x H) 149 x 109 mm (5.87 x 4.29 in)
Weight 830 g (1.83 lb)
Operating Temperature -40°C to +50°C (-40°F to +122°F)
Storage Temperature -40°C to +70°C (-40°F to +158°F)
Humidity (Operating) 5% to 93% non-condensing
IP Rating IP66
Vandal Resistance IK10
Heater Integrated

Cloud Management & Licensing
Management Interface Bosch Configuration Manager, Web Interface
Cloud Connectivity Bosch Remote Portal supported
Firmware Upgradable Yes
License Requirements None for basic use
