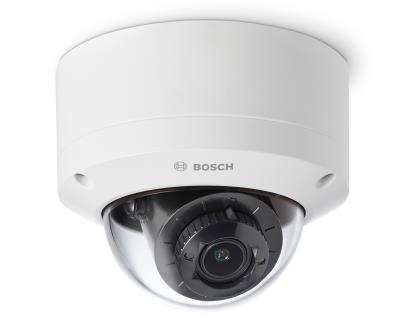

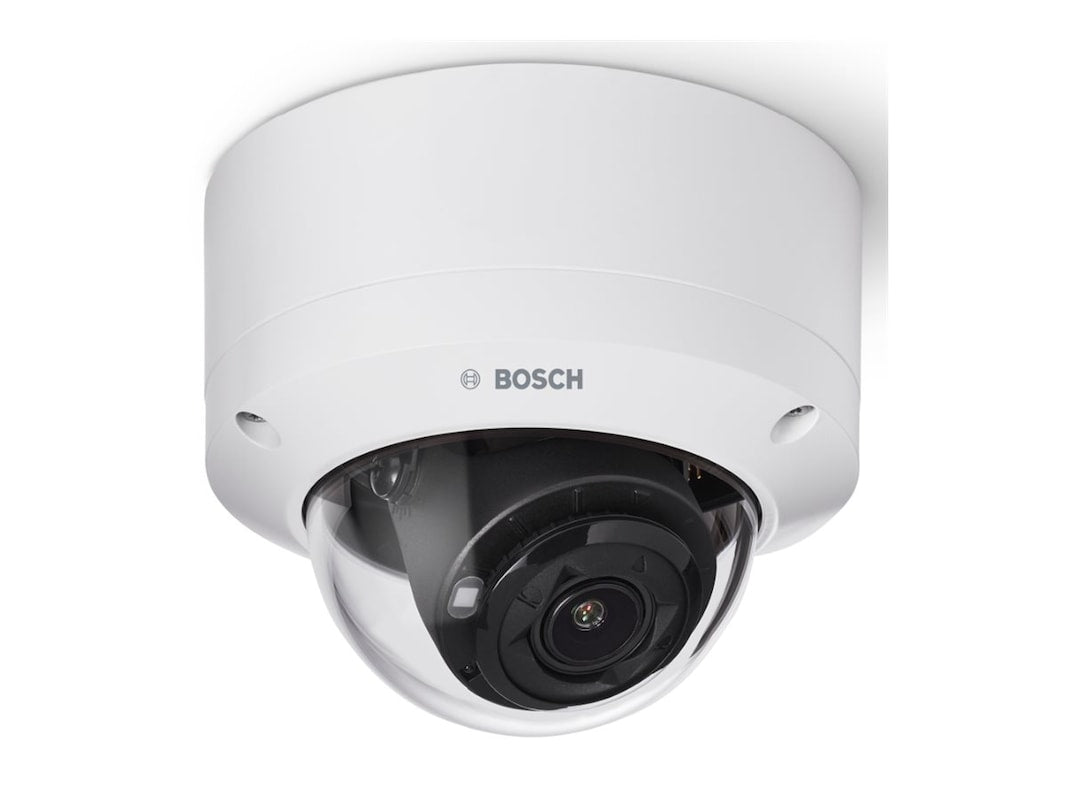

Bosch NDV-5703-A-GOV 5MP Fixed Dome IP Camera HDR 3.2–10.5mm

VENDOR: BOSCH Mfg Part#: NDV-5703-A-GOV UPC#: 800549389310
1 2
Photo is for illustration purposes only. Actual product may be different.
$888.00
$888.00
Sale Sold out
Shipping calculated at checkout.
  • - 5MP 1/2.7” CMOS sensor with HDR and WDR for sharp day/night surveillance
  • - Motorized 3.2–10.5mm P-Iris lens with 3.3x optical zoom and remote focusing
  • - Smart analytics including motion detection, IVA Pro, and privacy masking
  • - IK10 and IP54-rated dome housing; tamper-proof and vandal-resistant design
  • - Two-way audio with built-in mic and support for AAC-LC, G.711, and L16 formats
  • - PoE Class 3 powered with secure video encryption (AES-256, RSA-4096, TLS 1.3)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - TAA and NDAA compliant, making it ideal for public sector and government facility installations
  • - Advanced video analytics and flexible lens control reduce manual monitoring and optimize coverage
  • - Vandal-proof and environmental protection ensure long-term indoor operation with minimal maintenance

Product Overview

The Bosch NDV-5703-A-GOV is a high-performance 5MP fixed dome IP camera designed for government applications. Providing HDR video up to 2590 x 1944 resolution, it features a motorized 3.2–10.5mm P-Iris lens with versatile zoom and field of view adjustment. Built-in Intelligent Video Analytics Pro (IVA Pro), along with motion and audio detection, support advanced monitoring and threat recognition. Its tamper-proof, IK10/IP54-rated housing is suitable for harsh indoor conditions ranging from -4 °F to 122 °F. The camera supports PoE for power-efficient deployment and integrates smoothly with most systems using ONVIF profiles and strong encryption standards. A complete accessory kit is included to streamline mounting and setup for government-critical environments.

Specifications

Product Overview
Manufacturer Bosch
Model NDV-5703-A-GOV
Type 5 MP CMOS 1/2.7"
Form Factor Fixed dome - indoor
Weight 32.45 oz
Power Requirements DC 48 V / PoE Class 3
Pricing Type Government
Color RAL 9003, signal white, RAL 9017, traffic black
Audio Support Yes: two-way audio capability, built-in microphone
Audio Formats AAC-LC, G.711, L16
Digital Video Format MJPEG, H.264, HEVC, H.265
Mount Type Surface mount
Minimum Illumination 0.044 lux - color ¦ 0.01 lux - B&W
Exposure Range 1/25 sec - 1/15000 sec

Wireless Features
Wi-Fi Setup Option Support via USB-C Wi-Fi dongle (for setup and commissioning)

Compliance & Origin
Country of Origin TAIWAN
TAA Compliant Yes
Compliant Standards UL, VCCI, ICES-003 Class B, FCC, WEEE, IP54, EN 50121-4, China RoHS, RCM, EN 60529, EN 55032 Class B, EN 62368-1, IEC 62368-1, EN 62262 IK10, NDAA, IEC 62676-5, AS/NZS CISPR 32, EN 50132-5-2, RoHS 2011/65/EU Amendment 2015/863, IEC 62443, UKCA, IEC/EN 63000, FCC CFR 47 Part 15 Class B, EN 62676-2, UL CAP

Advanced Security Features
Encryption Algorithms MD5, SHA-1, 128-bit AES, 4096-bit RSA, TLS 1.2, 256-bit AES-CBC, TLS 1.3, SHA-256
Video Analytics Intelligent Video Analytics Pro (IVA Pro)
Other Security Features Privacy Mask Function, watermarking, ONVIF secure features, sharpness enhancement

Interfaces
Network Interface Ethernet 10Base-T/100Base-T
Ports LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out ¦ USB-C (for Wi-Fi dongle)
Data Transmission Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, ARP, ICMP, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, RTCP, QOS, IGMPv2, IGMPv3, APIPA, EAP, LLDP, SOAP, UDP, TCP, ICMPv6, DNSv6

Physical & Environmental
Width 5.8 in
Depth 5.8 in
Height 4.8 in
Minimum Operating Temperature -4 °F
Maximum Operating Temperature 122 °F
Relative Humidity (Operating) 5 - 93% (non-condensing)
Environmental Protection Rating IP54
Vandal Rating IK10

Cloud Management & Licensing
Management Interface Via browser and ONVIF protocol (Profiles S, G, T, M)
Cloud Features ONVIF support for remote integration, Pixel Counter Support, watermarking, image mirroring

Imaging & Optics
Max Resolution 2590 x 1944
Effective Pixels 2688 x 1944
Frame Rate (max) 30 frames per second
Video Modes 480p, 720p, 1080p
Digital Video Capture Resolutions 1280 x 720, 640 x 480, 1280 x 960, 1920 x 1440, 1920 x 1080, 2304 x 1728, 1536 x 864, 2592 x 1456, 2590 x 1944
Optical Sensor Type CMOS - 1/2.7" - 5 MP
Lens Type Motorized zoom
Focal Length 3.2 mm - 10.5 mm
Optical Zoom 3.3 x
Iris F/1.6 auto iris (P-Iris)
Focus Adjustment Motorized
Horizontal Field of View 29 - 96 degrees
Vertical Field of View 22 - 71 degrees
Panning Range 355 degrees
Tilting Range 85 degrees
