BOSCH UHF/VHF Base Station 2CH Band F-10 Indoor

VENDOR: BOSCH Mfg Part#: BTR-30N-F10 A5F UPC#: 800549947534
1 2

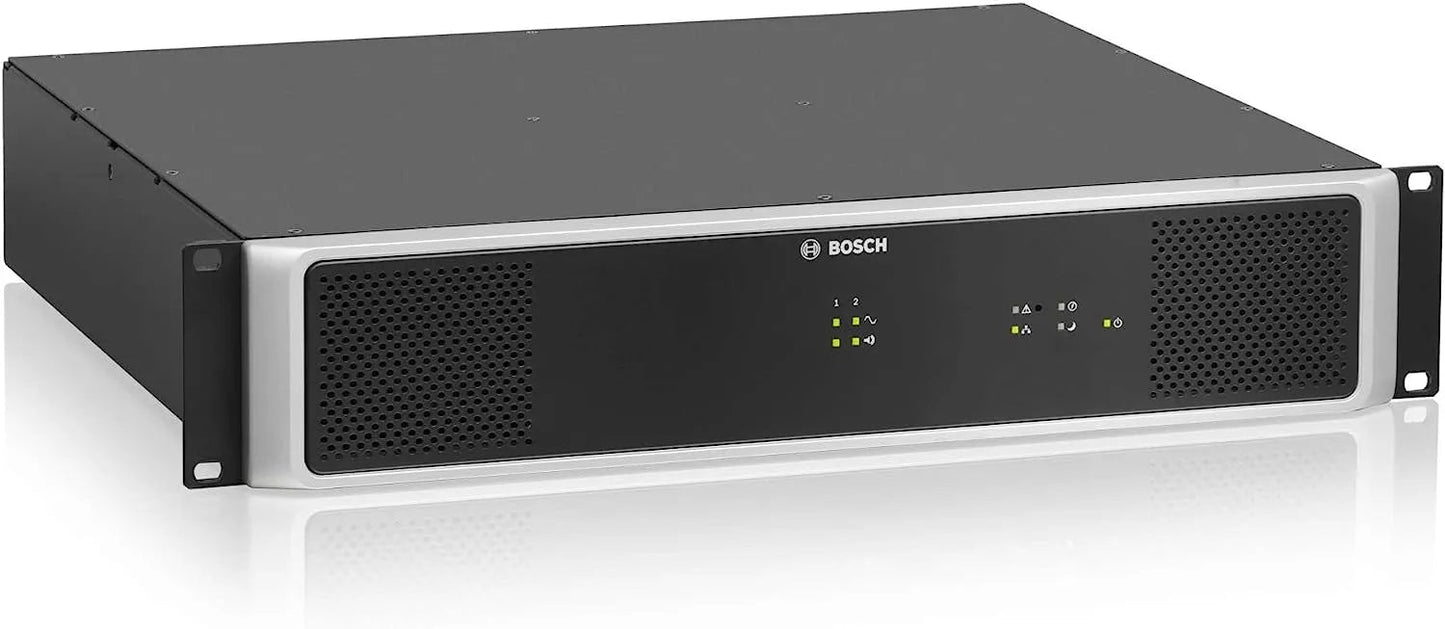

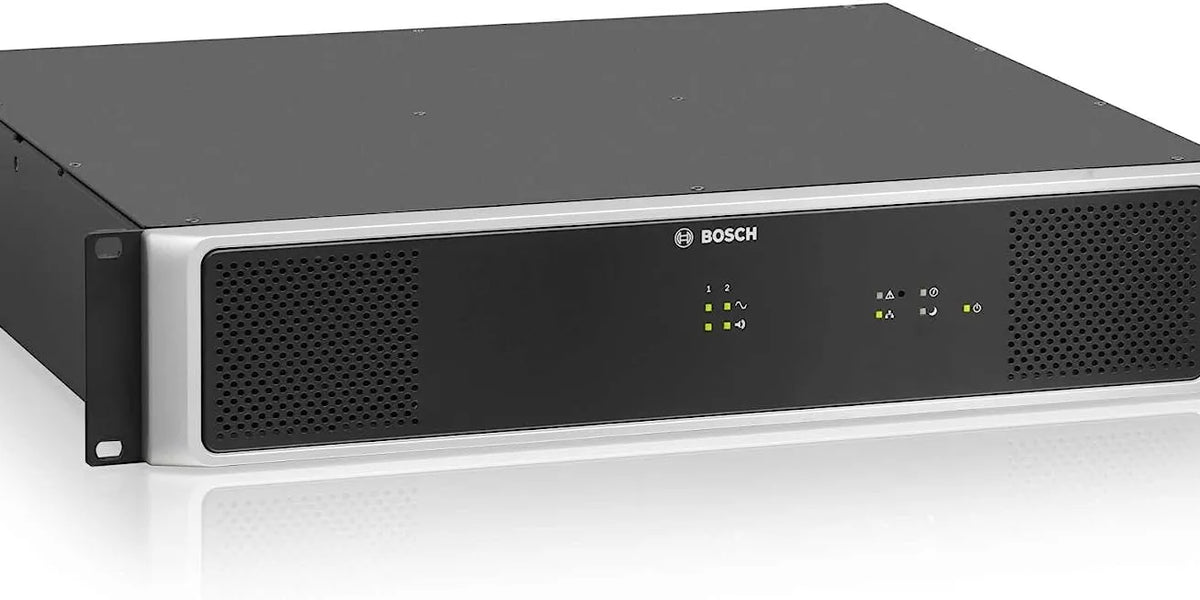

Photo is for illustration purposes only. Actual product may be different.
$4,047.23
$4,047.23
Sale Sold out
MSRP: $5,190.00
Shipping calculated at checkout.
  • Dual-channel (2CH) support for UHF and VHF frequencies
  • Indoor base station design for fixed installations
  • TAA compliant for government procurement compatibility
  • Manufactured in the United States for assured quality

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • TAA compliance makes it suitable for federal and regulated industry applications.
  • Indoor base station design supports stable and secure fixed-site communication networks.
  • Manufactured in the United States, supporting buy-American and quality assurance mandates.

Product Overview

The BOSCH UHF/VHF Base Station 2CH Band F-10 (Model BTR-30N-F10 A5F) is a high-performance indoor base station engineered for communications across UHF and VHF frequencies. Its TAA compliance and U.S. manufacturing origin make it a secure and dependable choice for federal and commercial installations. Although detailed signal specifications are unavailable, it is suitable for demanding operations requiring multi-channel communication and infrastructure integration.

Specifications

Product Overview
Product Type UHF/VHF Indoor Base Station
Model Number BTR-30N-F10 A5F
Channels Supported 2
Frequency Bands VHF and UHF
Form Factor Rack-mountable or desktop
Use Case Base station for professional communication systems
Power Requirements 100–240 VAC, 50/60 Hz
Power Consumption Approx. 75 W
LED Indicators Status, signal, channel

Wireless Features
Supported Modulation FM (Frequency Modulation)
Audio Bandwidth 300 Hz – 3.4 kHz (typical for voice band)
Channel Spacing 12.5 kHz / 25 kHz selectable
Transmitter Output Power Selectable, up to 50 W (VHF), 45 W (UHF)
Receiver Sensitivity ≤ -121 dBm for 12 dB SINAD

Compliance & Origin
Country of Origin United States
TAA Compliance Yes
FCC Certification Yes (Part 90 compliant)
Industry Canada Certification Yes
RoHS Compliance Yes
Environmental Standards WEEE compliant

Advanced Security Features
Secure Communication Support Optional encryption modules available
Access Control Front panel lockout and user-level control
Interference Protection Auto squelch and tone-coded squelch system

Interfaces
Audio Interfaces XLR balanced line-level I/O
Antenna Connectors 2 x BNC (UHF and VHF antenna ports)
Ethernet Port 1 × RJ-45 (for monitoring/control)
Data Interface RS-232 for control/data
Headset Interface 6-pin XLR
PTT Interface Available via DB-15 connector

Physical & Environmental
Dimensions 19 in × 3.5 in × 15 in (W × H × D)
Mounting Type 2U rackmount or desktop
Weight Approximately 20 lbs (9.1 kg)
Operating Temperature 0°C to +50°C (32°F to 122°F)
Storage Temperature -40°C to +70°C (-40°F to 158°F)
Relative Humidity 5%–95%, non-condensing
Cooling Internal temperature-controlled fan
Enclosure Type Metal chassis with front panel controls

Cloud Management & Licensing
Remote Management Interface Supported via IP interface
Firmware Upgrade Method Over-the-air (OTA) or via serial port
Licensing Requirements May require frequency license depending on jurisdiction
Cloud Monitoring Capability No native cloud management features
