| Product Type | Expert 8K Digital Signage Media Player |
| Model | XC4055 |
| Form Factor | Set-top unit |
| Weight | 1.8 kg |
| Power Requirements | DC 12V/4A (48W max) |
| Processor | Quad-core processor with hardware-accelerated graphics |
| Graphic Performance | 5x more graphics power than previous models |
| Video Playback | Up to 8K@60Hz video decoding |
| HTML Performance | PC-Class HTML5 rendering engine |

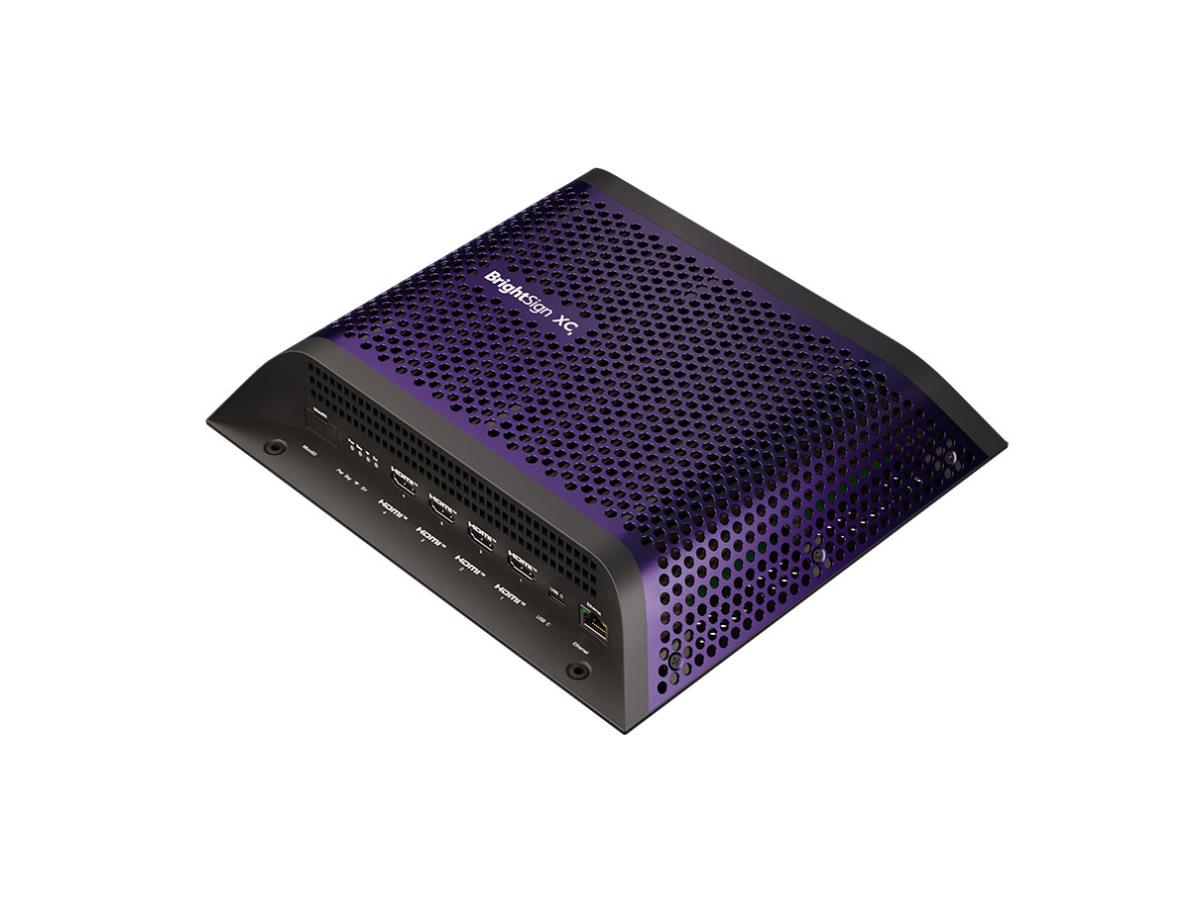

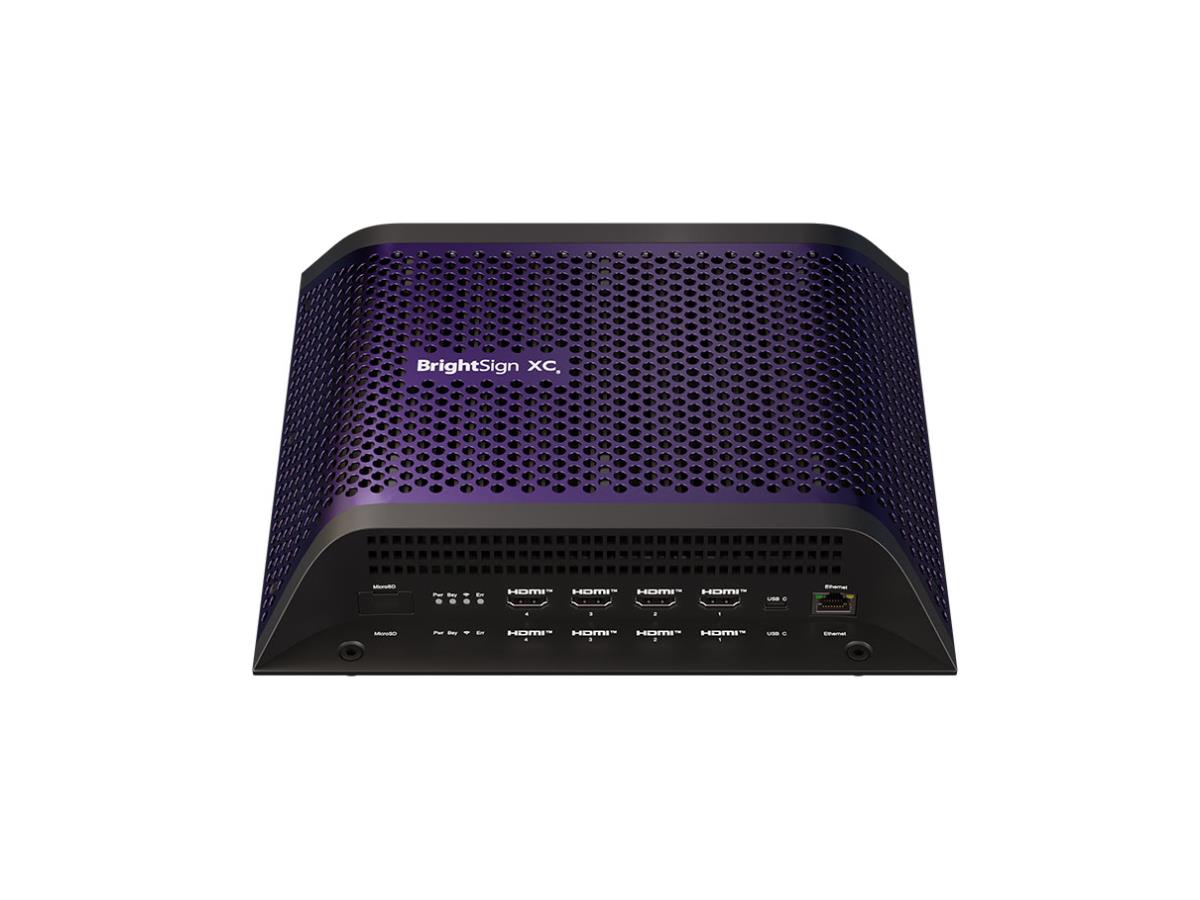

BRIGHTSIGN XC4055 8K Multi-Output Expert Media Player
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,411.94
Regular price
Sale price
$1,411.94
Unit price
per
MSRP: $1,756.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Supports quad output for multi-display configurations
- Delivers 8K video resolution with advanced rendering
- PC-class HTML performance for rich interactive content
- Full OpenGL support with 5x graphics power
- Compact dimensions: 253.2 mm x 232.12 mm x 48 mm
- Made in the United States for commercial use
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Quad HDMI output allows simultaneous playback on multiple screens, enhancing visual impact across complex installations.
- Full OpenGL support and 5x graphics capability make it ideal for high-intensity video rendering and advanced multimedia applications.
- Designed and manufactured in the United States, ensuring quality control and reducing lead times for enterprise deployments.
Product Overview
XC4055. Expert multi-headed 8k player with quad output, elite HTML, multiple HDMI outputs, full open GL with 5x more graphics power to create stunning video and graphics, and interactive experiencesSpecifications
Product Overview
Wireless Features
| Wi-Fi Support | Optional via supported USB Wi-Fi dongle |
| Bluetooth Support | Optional via supported USB Bluetooth dongle |
Compliance & Origin
| Country of Origin | United States |
| Certifications | FCC Class B, CE, RoHS, UL |
| EMC Compliance | EN55032, EN55035 |
Advanced Security Features
| Content Encryption | HDCP 2.3 support, secure policy enforcement |
| Whitelisting/Blacklisting | Supported via BrightSign OS |
| Device Authentication | Secure boot and content authentication |
| Network Security | Firewall policies, HTTPS/TLS support |
Interfaces
| HDMI Outputs | 4 × HDMI 2.1 |
| Ethernet Port | 1 × Gigabit Ethernet (RJ45) |
| USB Ports | 2 × USB 3.0 Type-A, 1 × USB Type-C |
| Audio Output | HDMI embedded audio, USB audio and analog line out via breakout |
| Serial Port | 1 × RS-232 (3.5mm mini jack) |
| GPIO | 8 bi-directional GPIOs (3.5mm mini jack) |
| Expansion Slot | 1 × M.2 Key B/NVMe SSD slot |
| SD Card Slot | 1 × microSD for content storage |
Physical & Environmental
| Width | 253.2 mm |
| Depth | 232.12 mm |
| Height | 48 mm |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 10% to 90% non-condensing |
| Mounting Options | Mounting brackets included |
| Enclosure Type | Aluminum chassis with passive cooling |
Cloud Management & Licensing
| Management Interface | BrightSign OS with BrightAuthor:connected and BSN.cloud |
| Cloud Platform Support | BSN.cloud Control Cloud (free), Content Cloud (optional) |
| Licensing Requirements | No recurring license for basic features |
| Remote Monitoring | Yes via BrightSign Network or BSN.cloud |
| Third-Party CMS Integration | Supported via APIs and BrightSign Partner CMS |
