Products Media Players (Digital Signage) BrightSign XT2145 Ultra HD ...

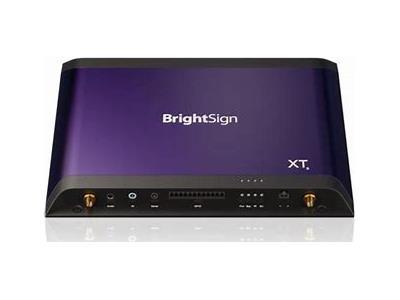

BrightSign XT2145 Ultra HD Media Player with Expanded Multiplex I/O

VENDOR: BRIGHTSIGN Mfg Part#: XT2145 UPC#: 854529008241
1 3
Photo is for illustration purposes only. Actual product may be different.
$907.84
$907.84
Sale Sold out
MSRP: $1,154.00
Shipping calculated at checkout.
  • Supports 8K60p 10-bit video playback for superior image quality
  • Dual 4K video decoding enables output to two displays simultaneously
  • Expanded I/O package includes GB Ethernet with PoE+, serial, GPIO, IR, and digital audio
  • Offers dual USB, HDMI input, and two HDMI output ports
  • Compact design (238.62 x 185.9 x 19.19 mm) ideal for space-limited installations
  • TAA compliant with 12V / 3A power input for standardized integration

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers brilliant 8K and dual 4K playback, ideal for high-resolution digital signage and content distribution
  • Extensive connectivity options minimize the need for additional hardware, speeding up system deployments
  • Ultra-slim, TAA-compliant design supports enterprise and government use in confined installations

Product Overview

The BrightSign XT2145 is a high-performance digital media player supporting 8K60p video and dual 4K decoding for multi-screen use. It features an expanded I/O package with Gigabit Ethernet with PoE+, GPIO, IR and serial ports, digital audio, dual USB, and dual HDMI outputs plus an HDMI input. Compact and TAA compliant, it provides integration flexibility and is ideal for AV professionals deploying advanced signage and multimedia solutions.

Specifications

Product Overview
Product Type Digital Signage Media Player
Model XT2145
Form Factor Ultra-thin compact enclosure
Video Resolution Support Up to 8K60p 10-bit HDR
Video Decoding Dual 4K video decoding
Supported Video Formats H.265, H.264 (up to High Profile), MPEG-2
Power Supply External 12V / 3A power adapter
Power over Ethernet PoE+ (IEEE 802.3at)
Weight Approx. 0.95 kg

Wireless Features
Wi-Fi Support Optional via USB Wi-Fi module
Bluetooth Support Optional via USB Bluetooth module

Compliance & Origin
Country of Origin Taiwan
TAA Compliance Yes
Certifications FCC, CE, UL, RoHS, WEEE

Advanced Security Features
Secure Boot Yes
Trusted Platform Module (TPM) Yes, TPM 2.0
Encrypted Content Playback AES-128 & RSA 2048 digital signature
Role-Based Access Control Supported via BrightSign Cloud

Interfaces
Ethernet 1 x GbE (10/100/1000 Mbps) with PoE+
HDMI Outputs 2 x HDMI 2.0a
HDMI Input 1 x HDMI 2.0
USB Ports 2 x USB 3.0 Type-A
Serial Port 1 x RS-232 with 3.5mm jack connector
IR Port 1 x IR input via 3.5mm jack
GPIO 8 bi-directional GPIOs
Digital Audio 1 x SPDIF Out (optical)
Storage Expansion microSD card slot, M.2 SSD (SATA III, optional)

Physical & Environmental
Width 238.62 mm
Height 19.19 mm
Depth 185.9 mm
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 85°C
Operating Humidity 10% to 90% non-condensing
Mounting Options VESA mount compatible; mounting holes included

Cloud Management & Licensing
Cloud Management Platform BrightSign BSN.cloud
Local Network Management BrightAuthor:connected (Windows/macOS)
License Model No recurring license required; optional BSN.cloud services available
Remote Updates Supported via BSN.cloud and BrightAuthor:connected
