Products Memory, Storage and Components BUFFALO TeraStation 5420RN ...

BUFFALO TeraStation 5420RN NAS 64TB 1U Rackmount

VENDOR: BUFFALO TECHNOLOGY Mfg Part#: TS5420RN6404 UPC#: 747464135915
1 5

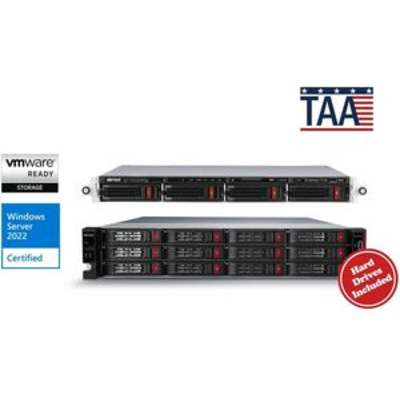

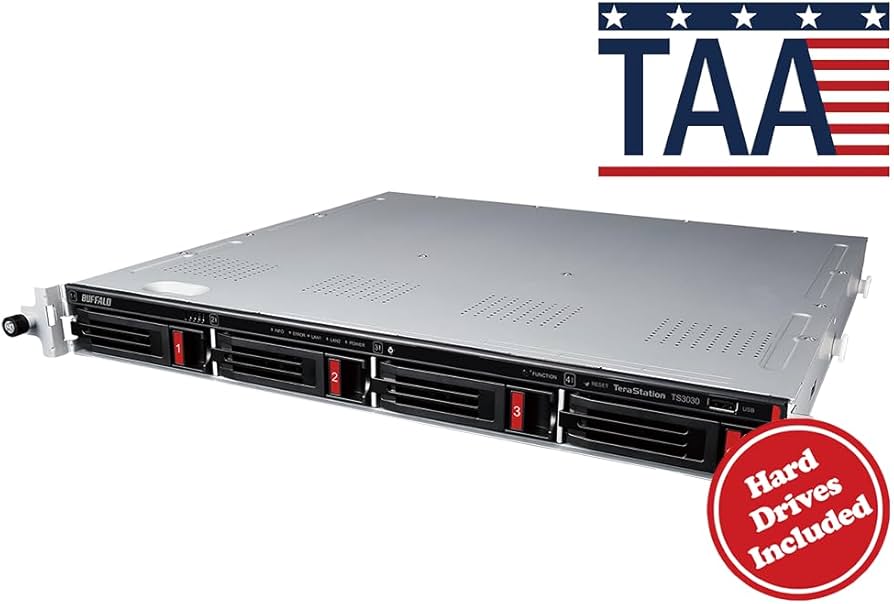

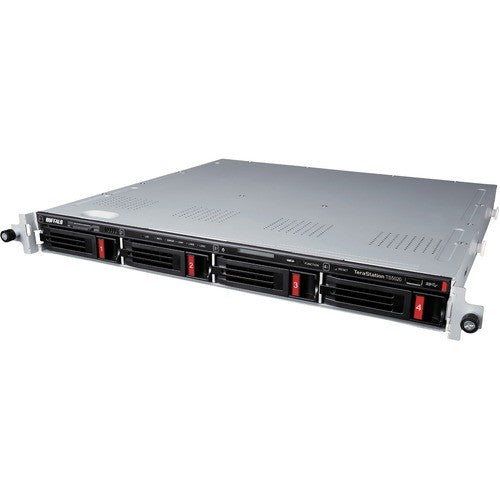

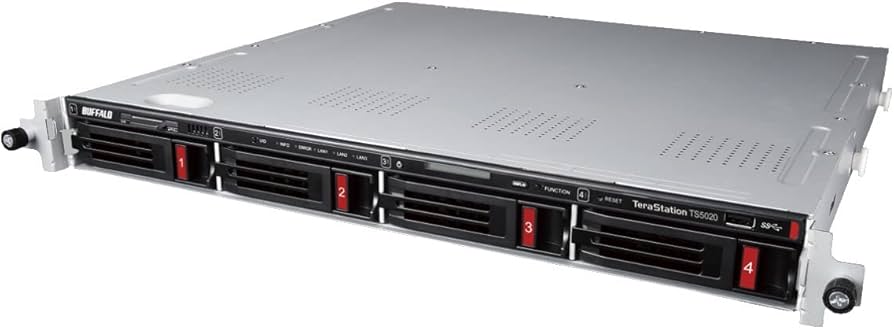

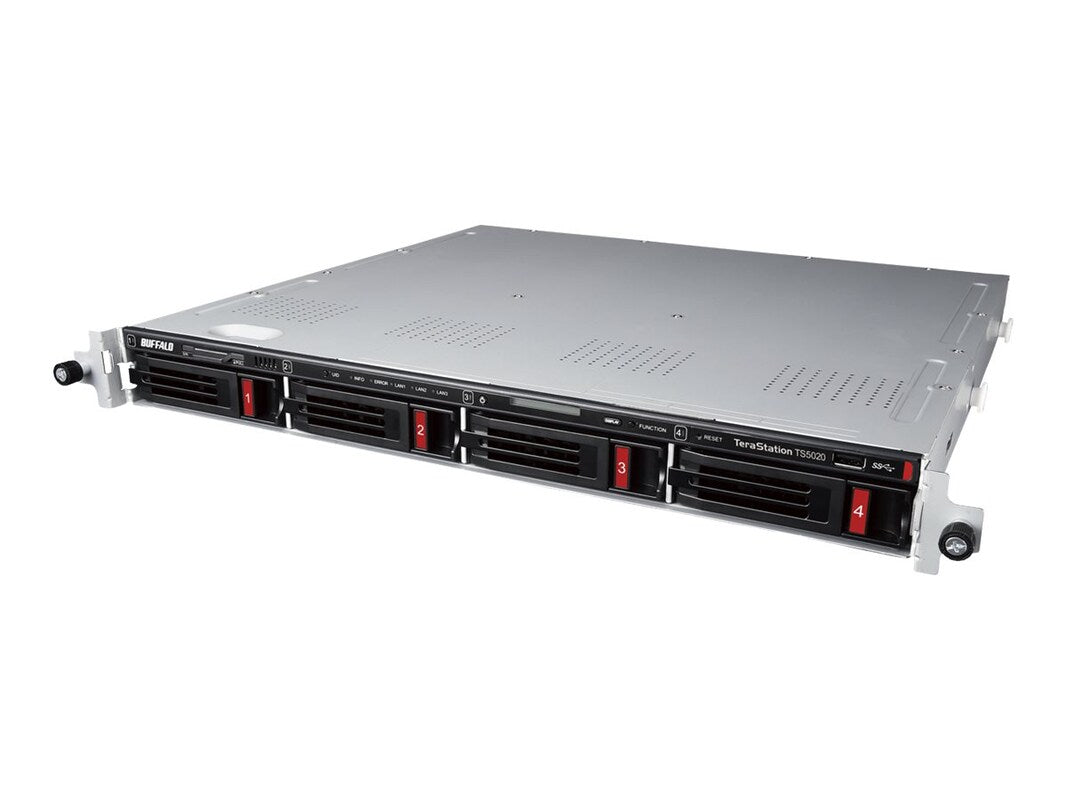

Photo is for illustration purposes only. Actual product may be different.
$2,818.83
$2,818.83
Sale Sold out
MSRP: $3,799.99
Shipping calculated at checkout.
  • 64TB total capacity with four 16TB NAS-grade SATA III 6Gb/s drives
  • Intel Atom C3338 1.5GHz dual-core processor with 8GB DDR4 ECC RAM
  • Supports RAID levels JBOD, 0, 1, and 5 (pre-configured for RAID 1 or 5)
  • Pre-installed Microsoft Windows Storage Server 2016
  • One 10GbE and two 1GbE RJ-45 ports; three USB 3.0 Type A ports
  • 1U rackmount form factor with included rail kit and 3-year VIP warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Pre-configured with NAS-grade drives and RAID for rapid deployment and increased data protection
  • Offers high-performance connectivity and processing via 10GbE port and Intel Atom C3338 processor
  • Backed by a 3-year VIP warranty and TAA compliance for enterprise and government use

Product Overview

The BUFFALO TECHNOLOGY TeraStation 5420RN is a 1U rackmount NAS engineered for demanding business environments. Featuring 64TB of total capacity via four pre-installed 16TB SATA III drives, it supports RAID configurations including RAID 0, 1, 5, and JBOD. With an Intel Atom C3338 dual-core 1.5GHz processor and 8GB ECC DDR4 RAM, it delivers solid multitasking and secure operations. Connectivity includes 1 x 10GbE and 2 x 1GbE RJ-45 ports alongside 3 x USB 3.0 interfaces. Preloaded with Windows Storage Server 2016, it integrates well into Windows-based infrastructures. Built in Japan with TAA compliance, this solution includes a VIP 3-year warranty and a rackmount rail kit, making it ideal for enterprise-grade deployments.

Specifications

Product Overview
Product Type Network Attached Storage (NAS)
Model TeraStation WS5420RN
Form Factor 1U Rackmount
Processor Manufacturer Intel
Processor Type Atom C3338
Processor Clock Speed 1.5 GHz
Number of Cores Dual-Core
Cache Memory 4 MB
Installed RAM 8 GB ECC DDR4
Operating System Microsoft Windows Storage Server 2016
Power Supply Type Internal
Power Requirements 100-240V AC, 50/60Hz
Included Accessories Rackmount rail kit
Warranty 3-year TeraStation VIP warranty

Storage & Drive Configuration
Total Storage Capacity 64 TB
Drive Configuration 4 x 16TB SATA III 6Gb/s
Number of Installed Drives 4
Number of Drive Bays 4
Supported RAID Levels JBOD, RAID 0, RAID 1, RAID 5
Drive Type NAS-grade SATA HDD

Compliance & Origin
Country of Origin Japan
TAA Compliant Yes
Certifications VCCI Class A, FCC Class A, CE

Advanced Security Features
Data Protection Features RAID support, Scheduled backup, Failover system, Drive encryption
Access Control User and group-level permissions, Active Directory Integration
Encrypted Data Transmission SMB encryption, SSL/TLS support

Interfaces
10GbE RJ-45 Ports 1
Gigabit Ethernet Ports 2
Total RJ-45 Ports 3
USB 3.0 Ports 3
USB Interface Type USB 3.0 Type A
Network Interface Type Gigabit Ethernet, 10 Gigabit Ethernet

Physical & Environmental
Dimensions (W x D x H) 430 x 414 x 44.3 mm
Weight 8.6 kg
Operating Temperature 5°C to 35°C (41°F to 95°F)
Operating Humidity 20% to 80% (non-condensing)
Cooling System Internal fan
Mounting Type Rackmountable

Cloud Management & Licensing
Preloaded OS Features Windows Storage Server features including SMB/CIFS, Active Directory support, and user/group permissions
Software License Windows Storage Server 2016 Standard pre-licensed
Management Interface BUFFALO NAS Navigator, web-based admin GUI
