Canon LX-D5500 4-Inch Dye-Based Inkjet Label Printer

VENDOR: CANON Mfg Part#: 4974B003 UPC#: 810771030133

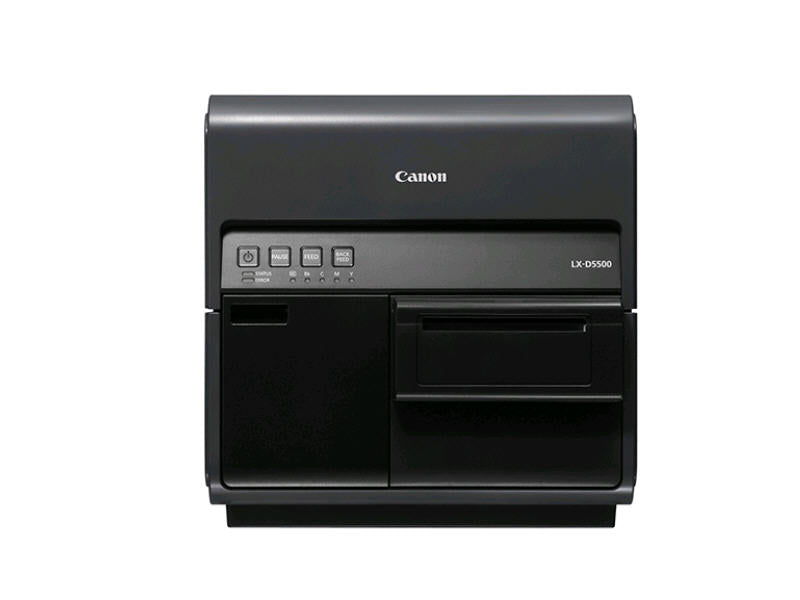

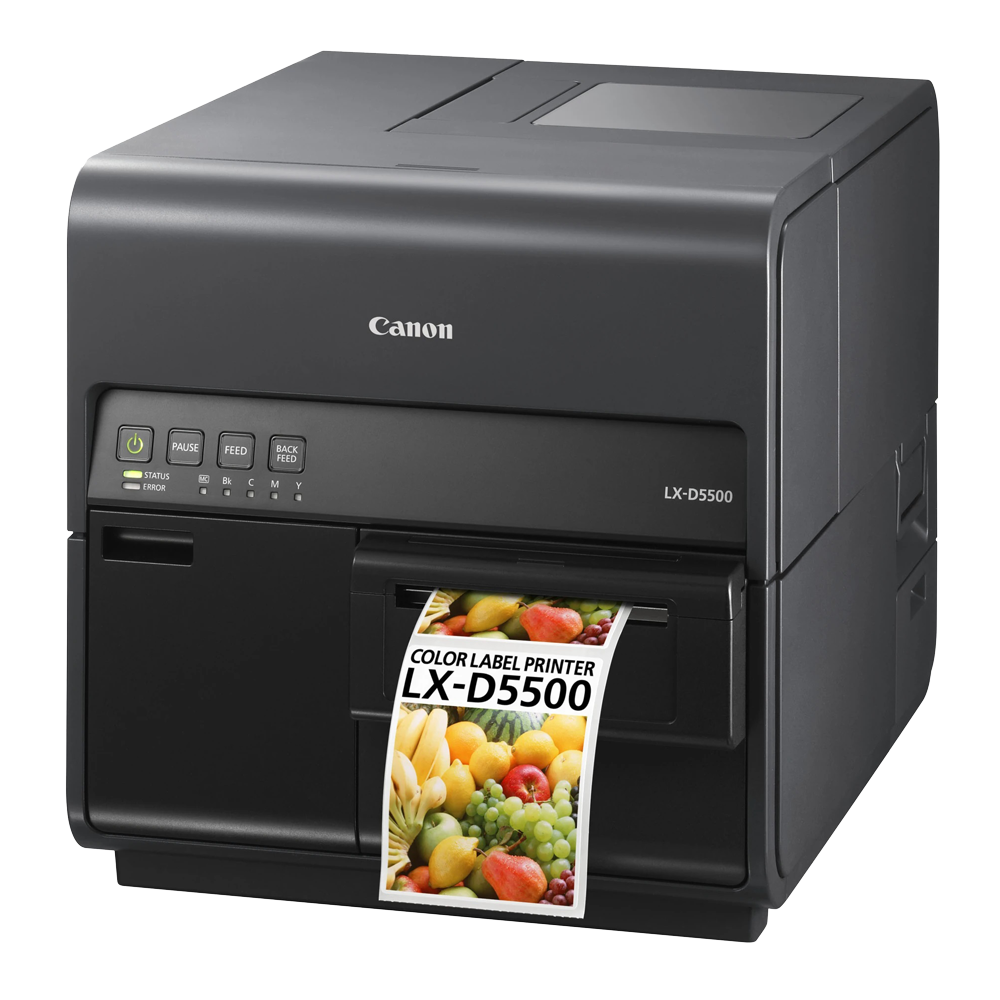

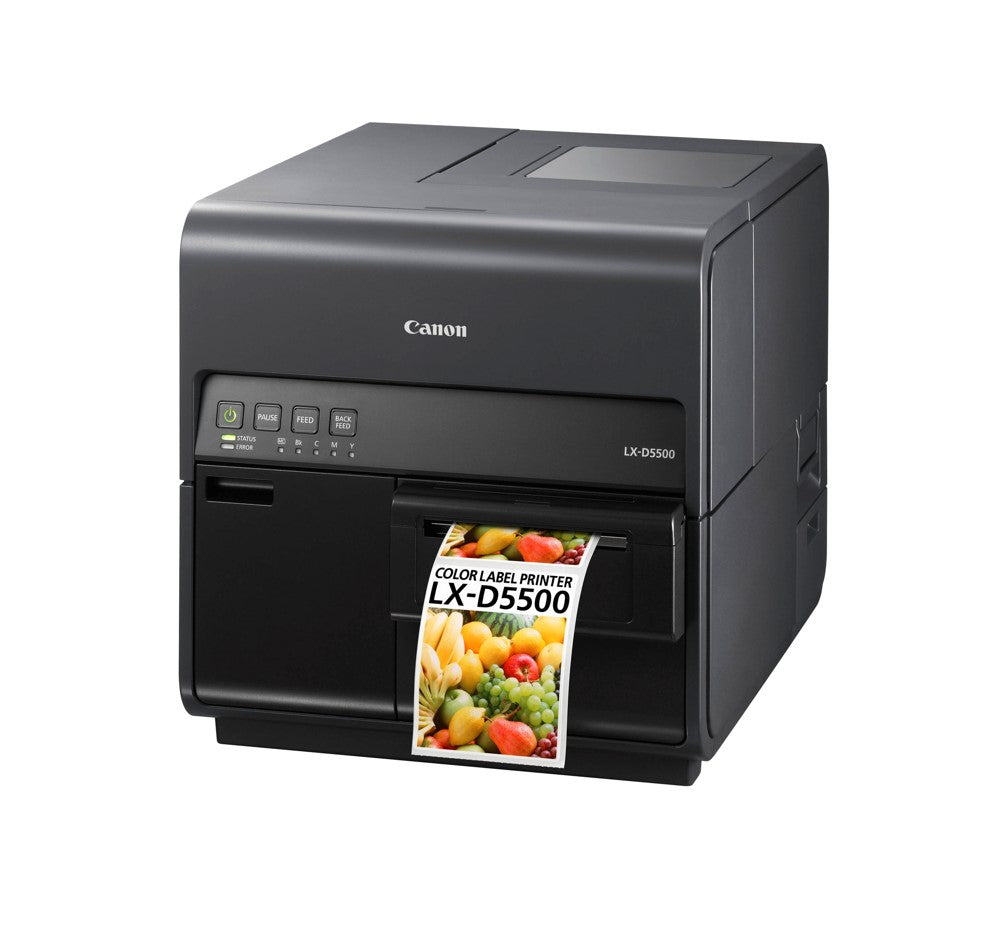

  • The Canon LX-D5500 is a high-performance 4-inch dye-based inkjet label printer designed for commercial and industrial use. With support for multiple interfaces and ultra-high-resolution printing, this printer delivers vibrant details at speeds up to 200 mm/s. Service installation is required for optimal operation.
1 1
Photo is for illustration purposes only. Actual product may be different.
$7,127.28
$7,127.28
Sale Sold out
MSRP: $10,658.00
Shipping calculated at checkout.
  • Thermal inkjet printing technology with up to 1200 x 1200 dpi resolution
  • Label speed up to 200 mm/s with adjustable presets for versatility
  • Connectivity options: Ethernet, USB 2.0, and RS-232C
  • Media support: Label width from 25.4 mm to 120.0 mm, length from 6.0 mm to 500 mm
  • Operating temperature range: 5°C to 35°C; humidity: 10–90% RH non-condensing
  • TAA compliant and backed by a 1-year manufacturer warranty
View full details

Key Benefits

Eye-Insights
  • Delivers sharp, high-resolution labels up to 1200 dpi for professional results
  • Wide compatibility with network and serial interfaces including Ethernet and RS-232C
  • Fast print speed of 200 mm/s enhances throughput in demanding environments

Product Overview

The Canon LX-D5500 is a robust 4-inch label printer engineered to meet the demands of fast-paced environments requiring high-quality label printing. Utilizing thermal inkjet technology, it achieves a maximum resolution of 1200 x 1200 dpi, offering crisp, dye-based color output ideal for applications in logistics, retail, and manufacturing. With versatile media handling that supports paper widths from 25.4 mm to 120.0 mm and lengths from 6.0 mm to 500 mm (including liner), the LX-D5500 accommodates a wide range of label sizes.

Built for speed and flexibility, this printer features a default speed of 200 mm/sec and supports multiple preset speed settings down to 50 mm/sec. Its compact form factor (15.2" W x 22.2" D x 15.5" H) and 55 lb weight make it suitable for benchtop use, while connectivity is streamlined through Ethernet, USB 2.0, and RS-232C interfaces. Operational range includes temperatures of 5°C to 35°C and humidity levels from 10% to 90% non-condensing, making it reliable for diverse environments.

The LX-D5500 is TAA-compliant and manufactured in Japan, reflecting Canon's commitment to quality and regulatory standards. Backed by a 1-year warranty and requiring professional service installation, this unit is purpose-built for businesses that demand high-output, vivid label printing with minimal downtime.

Specifications

Special Feature
COO JAPAN
TAA compliance Yes
Min Operating Temperature 5 Degree Celsius
Max Operating Temperature 35 Degree Celsius
Humidity Range Operating 10-90% RH (Non-Condensing)

Dimensions&Miscellaneous
Model LX-D5500
Width 15.2 Inch
Depth 22.2 Inch
Height 15.5 Inch
Weight 55 lbs.
Features Paper Size- Width: 25.4 - 120.0 mm (Including Liner) Length: 6.0 - 500 mm (Including Liner)

Media
Printer Speed First Print Out Time: 4 x 3 Label: 10 seconds or less Default Print Speed: 200 mm/second (7.9 inches/second) Range: 50 - 200 mm/s Preset Options: 200 mm/s, 160 mm/s, 120 mm/s, 100 mm/s, 90 mm/s, 80 mm/s, 70 mm/s, 60 mm/s, 50 mm/s
Printer Color Type Not Included
Print Max Resolution ( B&W ) 1200 dpi x 1200 dpi

Service&Support
Manufacturer Warranty 1 Year Warranty

UNSPSC Code
UNSPSC Code 43212108

Printer
Printer Type Label Printer
Printer Technology Thermal Inkjet
Printer Interface Ethernet; USB 2.0; RS-232C

Power / Battery
Power / Voltage Required AC 100-240v, 50/60 Hz
Power Consumption Operational 21 Watt
