CISCO 1000BASE-BX SFP, 1490NM, GLC-BX-D=

VENDOR: CISCO Mfg Part#: GLC-BX-D= UPC#: 882658010835
  • 1000BASE-BX SFP, 1490NM
1 1

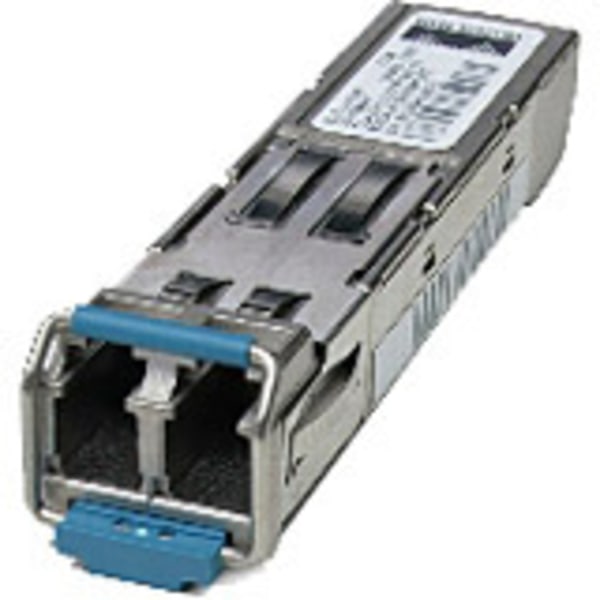

Photo is for illustration purposes only. Actual product may be different.
$1,087.78
$1,087.78
Sale Sold out
MSRP: $1,595.42
Shipping calculated at checkout.
  • Supports 1000BASE-BX10-D standard for Gigabit Ethernet
  • Operates at 1490 nm wavelength for downstream bidirectional communication
  • Supports single-mode fiber transmission up to 10 km
  • Uses LC/PC connector interface for optical networking
  • TAA compliant for government and secure applications
  • Made in the United States with 5-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for long-distance networking with up to 10 km range over single-mode fiber
  • Reduces infrastructure costs by enabling bidirectional traffic over a single fiber strand
  • TAA compliance and U.S. origin make it suitable for secure, government-related installations

Product Overview

The CISCO 1000BASE-BX SFP, GLC-BX-D= is a Gigabit Ethernet transceiver optimized for 1490 nm downstream transmission over a 10 km range using single-mode fiber and an LC/PC connector. Fully compliant with TAA regulations, it is ideal for secure and regulated deployments. It supports high-performance bidirectional communication across a single fiber strand, helping organizations reduce fiber footprint while maintaining reliable and efficient data transfer.

Specifications

Product Overview
Product Type Gigabit Ethernet SFP Transceiver Module
Form Factor SFP (Small Form-Factor Pluggable)
Wavelength (Transmit) 1490 nm
Wavelength (Receive) 1310 nm
Maximum Data Rate 1 Gbps
Max Transmission Distance 10 km
Cable Type Single-mode fiber
Connector Type LC duplex connector
Power Budget 13 dB
Optical Output Power (Tx) -3 dBm to +3 dBm
Receiver Sensitivity -20 dBm
Digital Optical Monitoring (DOM) Supported
Hot Swappable Yes
Power Consumption Less than 1 W
MTBF 1,000,000 hours

Physical & Environmental
Dimensions (H x W x D) 8.5 mm x 13.4 mm x 56.5 mm
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing

Cloud Management & Licensing
Cloud Management Support No
Software Licensing Not Required

Interfaces
Interface 1000BASE-BX
Port Type SFP
Number of Optical Ports 1
Signaling Rate 1.25 Gbaud
Protocol Gigabit Ethernet

Compliance & Origin
TAA Compliance Yes
Country of Origin United States
RoHS Compliance Yes
Certifications CE, FCC, UL, CSA
EMI Standards EMC Directive 2014/30/EU
Safety Standards IEC 60825-1, FDA 21 CFR 1040.10 and 1040.11

Advanced Security Features
Secure Optical Transmission No Encryption – relies on physical layer
