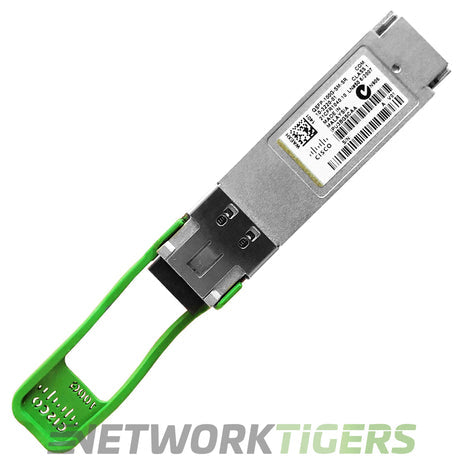

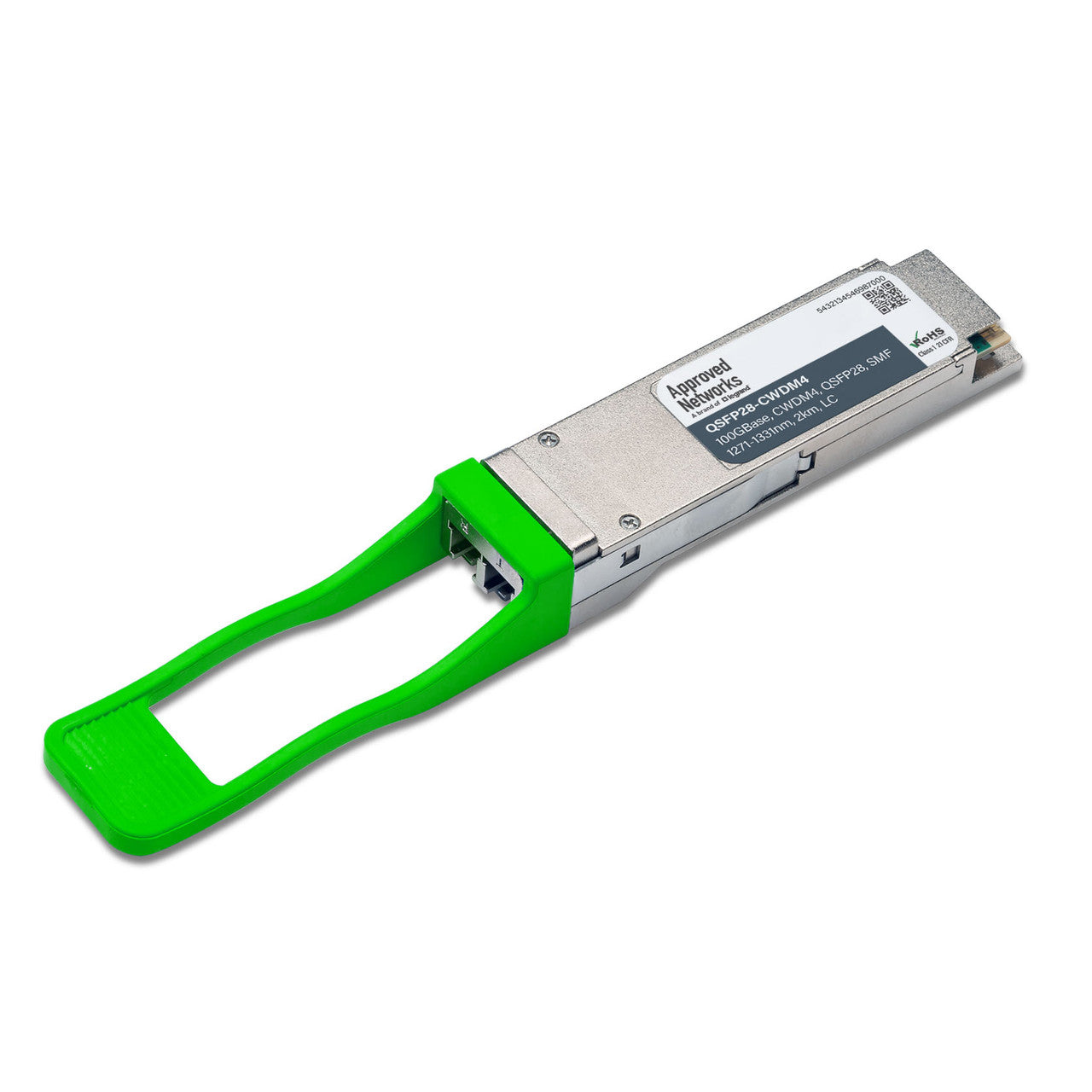

Cisco 100GBASE CWDM4 LITE QSFP Transceiver, 2KM, 100Gbps

VENDOR: CISCO Mfg Part#: QSFP-100G-SM-SR= UPC#: 882658930508
1 3
Photo is for illustration purposes only. Actual product may be different.
$2,962.14
$2,962.14
Sale Sold out
MSRP: $6,110.37
Shipping calculated at checkout.
  • QSFP form factor for high-density applications
  • Supports 100Gbps data transfer rate
  • Optical wavelength range: 1276.1–1331 nm
  • Up to 2 km (1.24 miles) distance over single-mode fiber
  • TAA compliant for government and enterprise use
  • Operating temperature range: 10°C to 60°C

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-fast 100Gbps speeds for bandwidth-intensive networking environments.
  • Supports extensive 2KM range over single-mode fiber, ideal for mid-range data center interconnects.
  • Form factor and TAA compliance ensure compatibility and suitability for secure IT deployments.

Product Overview

The Cisco 100GBASE CWDM4 LITE QSFP Transceiver, model QSFP-100G-SM-SR=, enables 100Gbps Ethernet connectivity across up to 2 kilometers via single-mode fiber (SMF). Operating within the 1276.1–1331 nm wavelength range, it is housed in a space-efficient QSFP form factor, combining performance with compact design. The module supports a wide temperature range (10–60°C) and meets TAA compliance, making it well-suited for secure government and enterprise networks. With production across multiple countries, it offers sourcing flexibility while delivering robust performance for demanding networking environments.

Specifications

Product Overview
Type Optical Transceiver Module
Form Factor QSFP28
Data Transfer Rate 100 Gbps
Transceiver Type 100GBASE-CWDM4 LITE
Max Transfer Distance 2 km
Fiber Mode Single-Mode Fiber (SMF)
Connector Type LC duplex
Digital Optical Monitoring (DOM) Supported
Hot Swappable Yes
Power Consumption ≤ 3.5 Watts
Weight Approximately 75 grams

Physical & Environmental
Dimensions (H x W x D) 13.9 mm x 18.35 mm x 72.4 mm
Operating Temperature 10°C to 60°C (50°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity (Operating) 10% to 85%, non-condensing
Humidity (Storage) 5% to 95%, non-condensing
Enclosure Type Metal housing

Cloud Management & Licensing
Plug and Play Compatibility Yes
Cisco Network Management Compatibility Yes – Compatible with Cisco IOS and Cisco DNA Center
Licensing Required No

Interfaces
Interface QSFP28
Interface Type Plug-in module
Connector LC Duplex
Media Type Optical Fiber
Wave Length 1276.1 nm – 1331 nm
Ethernet Protocol Support 100G Ethernet
Transmission Technology CWDM (Coarse Wavelength Division Multiplexing)

Compliance & Origin
Country of Origin China / Malaysia / Taiwan / United States
TAA Compliant Yes
RoHS Compliant Yes
EMC Compliance EMC Directive 2014/30/EU
Safety Standards IEC 60825-1, 21 CFR 1040.10 and 1040.11
ISO Certified Manufacturing Yes
Laser Class Class 1

Advanced Security Features
Secure Hardware ID Yes
Authentication EEPROM-based module authentication with Cisco platforms
