Cisco 100GBASE LR4 QSFP Transceiver, LC, 10km, SMF

VENDOR: CISCO Mfg Part#: QSFP-100G-LR4-S= UPC#: 882658836633
  • 100GBASE LR4 QSFP TRANSCEIVER, LC, 10KM
1 1

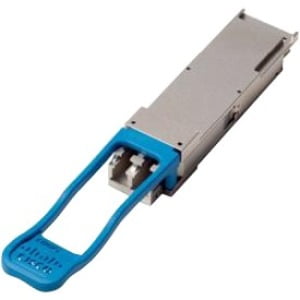

Photo is for illustration purposes only. Actual product may be different.
$18,906.65
$18,906.65
Sale Sold out
MSRP: $39,001.06
Shipping calculated at checkout.
  • Supports 100 Gigabit Ethernet using 100GBase-LR4 technology
  • QSFP form factor with hot-swappable design
  • LC duplex optical interface for connectivity up to 10km over single-mode fiber
  • RoHS-6 and TAA compliant for global deployments
  • Compact size: 0.5" H x 0.7" W x 2.85" D
  • Optical fiber media support for high-bandwidth efficiency

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for long-distance 100G Ethernet applications with 10km range over SMF
  • Meets RoHS-6 and TAA standards, enabling use in government and international projects
  • Hot-swappable QSFP design allows for easy maintenance and upgrade without network downtime

Product Overview

The Cisco 100GBASE LR4 QSFP transceiver (part number QSFP-100G-LR4-S=) offers 100 Gigabit Ethernet over single-mode fiber (SMF) up to 10km, housed in a compact hot-swappable QSFP form factor with LC duplex interface. It meets RoHS-6 and TAA compliance standards, supporting enterprise, data center, and service provider applications. Compact dimensions and energy-efficient design ensure easy integration and sustainable operation.

Specifications

Product Overview
Product Type QSFP
Form Factor Hot-swappable
Type Optical Transceiver Module
Weight 100 g
Power Consumption 4.5 W typical
Transceiver Technology 100GBASE-LR4
Hot Swappable Yes

Physical & Environmental
Height 0.5 in
Width 0.7 in
Depth 2.85 in (72.4 mm)
Operating Temperature Range 0°C to 70°C (32°F to 158°F)
Storage Temperature Range -40°C to 85°C (-40°F to 185°F)
Operating Humidity 10% to 85% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)

Cloud Management & Licensing
Management Interface Digital Diagnostics Monitoring (DDM/DDMI)
Supported Protocols MDIO/I2C based interface

Wireless Features
Wi-Fi Capabilities

Interfaces
Interface Type QSFP28
Connector Type LC Duplex
Port Count 1
Supported Ethernet Standards 100 Gigabit Ethernet
Interface Details 1 x LC Duplex 100GBase-LR4 Network
Data Transfer Rate 100 Gbps
Wavelength 1295.56 nm to 1309.14 nm
Transmission Distance Up to 10 km
Cable Type Single-mode Fiber (SMF)
Modulation Type NRZ

Compliance & Origin
Environmental Certification RoHS-6
TAA Compliance Yes
Environmentally Friendly Yes
Country of Origin China / Japan / Malaysia / Taiwan
Certification Standards CE, FCC, FDA, Class 1 Laser, IEEE 802.3

Advanced Security Features
Security Features Authenticity protection via Cisco secure transceiver ID
