Cisco 25GBASE-SR SFP28 Transceiver Module, 25GbE, Plug-In, LC MMF

VENDOR: CISCO Mfg Part#: SFP-25G-SL=
1 3

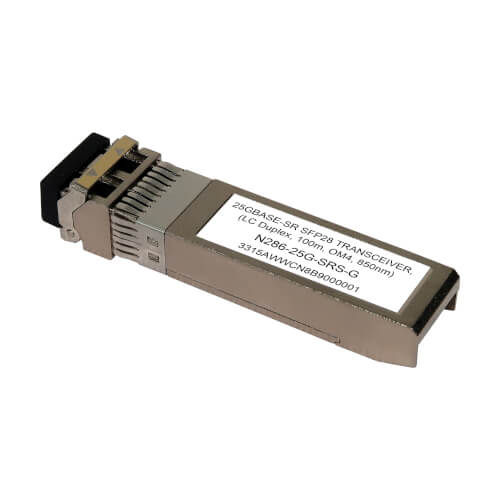

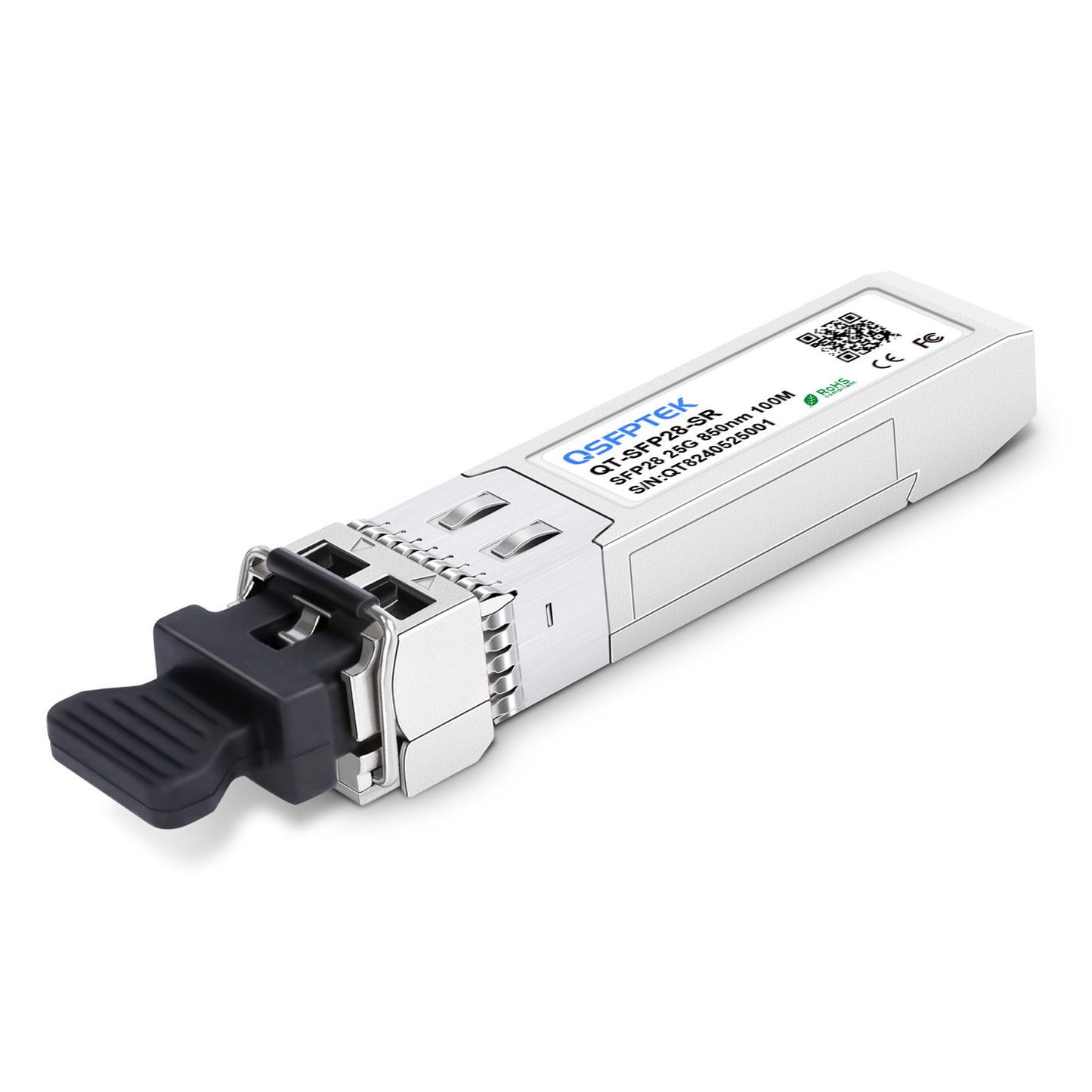

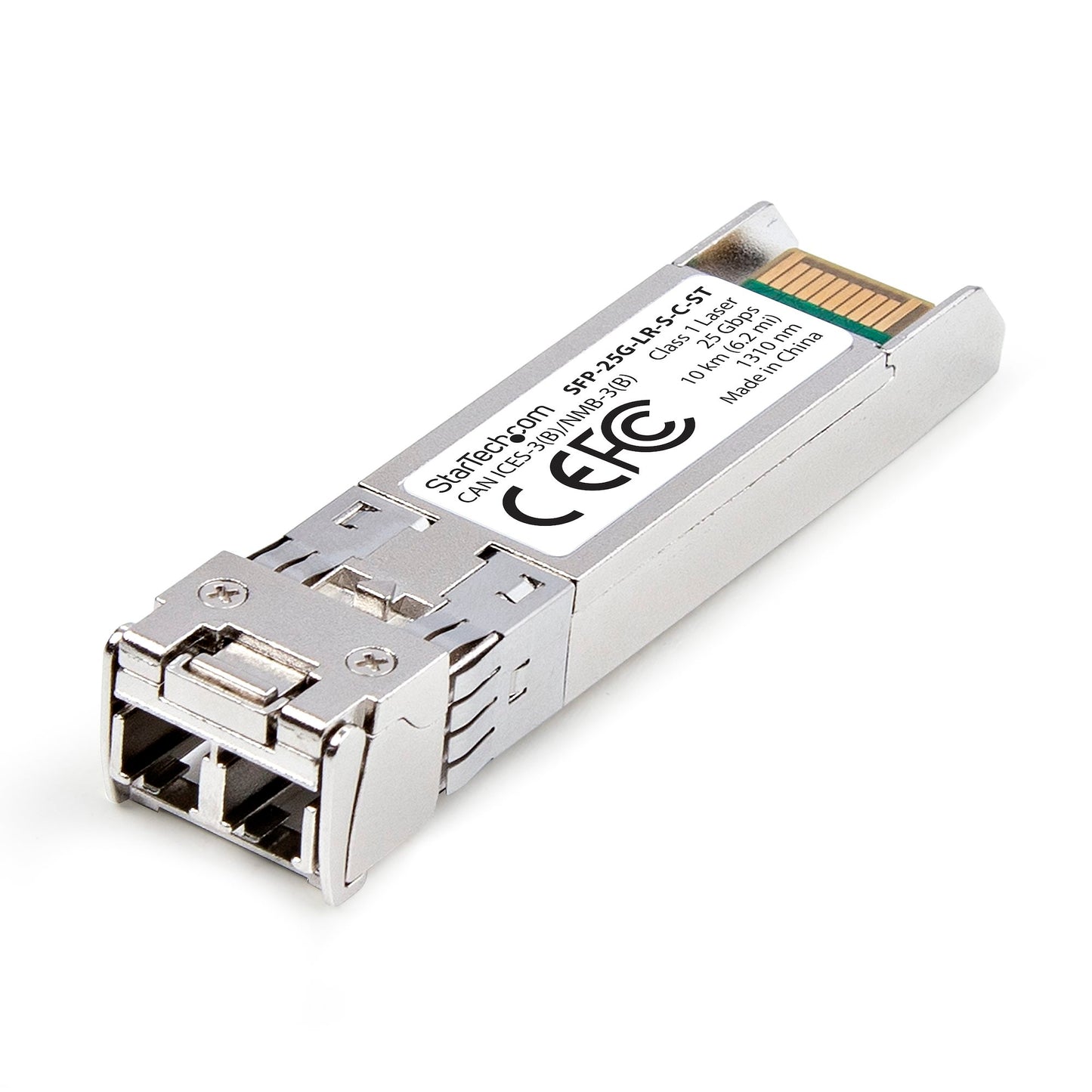

Photo is for illustration purposes only. Actual product may be different.
$479.66
$479.66
Sale Sold out
MSRP: $703.50
Shipping calculated at checkout.
  • Supports 25 Gbps data transfer rate over Ethernet 25GBase-SL
  • LC multi-mode fiber interface with 850 nm wavelength
  • Maximum transfer distance of 98 ft
  • Complies with IEEE 802.3by, IEEE 802.3cc, and RoHS standards
  • Operating temperature range from 32°F to 158°F
  • 5-year limited hardware warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-speed 25GbE performance ensures scalable bandwidth for data centers and enterprise networks.
  • Standards compliance and TAA qualification make it suitable for regulated or government environments.
  • Plug-in form factor and certified interoperability enable quick deployment and integration.

Product Overview

The Cisco 25GBASE-SR SFP SL Module is a high-performance SFP28 transceiver for short-reach 25GbE applications over LC multi-mode fiber, delivering up to 25 Gbps over 98 feet with an 850 nm wavelength. Designed in a plug-in form factor, it ensures efficient deployment and scalability. Certified by IEEE 802.3by/cc and compliant with RoHS, SFF-8472 Rev. 12, and other standards, it is constructed for operational reliability in data centers and enterprise networks. The module operates between 32°F and 158°F, is TAA-compliant, and includes a 5-year limited warranty.

Specifications

Product Overview
Product Type SFP28 Transceiver Module
Form Factor Plug-in module
Connectivity Technology Wired
Weight Approximately 20 g
Power Consumption ≤1 W (typical)
Manufacturer Part Number SFP-25G-SL=
Product Name Cisco 25GBASE-SR SFP28 Transceiver Module, 25GbE, Plug-In, LC MMF
Family Networking

Wireless Features
Wireless Technology

Compliance & Origin
Country of Origin China / Malaysia / Taiwan
TAA Compliant Yes
Compliant Standards IEEE 802.3by, IEEE 802.3cc, SFF-8472 Rev. 12, SFF-8402 Rev. 1.0, RoHS, IEC 60825-1, Laser Class 1, UL E116441, 21 CFR 1040, ELV
RoHS Compliant Yes
Laser Classification Class 1
Regulatory Standards IEC-60825, FDA 21 CFR 1040.10 and 1040.11

Advanced Security Features
Digital Diagnostic Monitoring (DDM) Yes (SFF-8472 compliant)
Security Features Hardware-based signal integrity and diagnostics

Interfaces
Interface SFP28
Port Type LC duplex connector (multi-mode)
Port Count 1 x Ethernet 25GBase-SL
Data Transfer Rate 25 Gbps
Wavelength 850 nm
Max Transmission Distance 30 meters (98 ft) on OM3 MMF
Cable Type Supported Multi-mode fiber (OM3 / OM4)
Data Link Protocol 25 Gigabit Ethernet

Physical & Environmental
Minimum Operating Temperature 32 °F (0 °C)
Maximum Operating Temperature 158 °F (70 °C)
Relative Humidity (Operating) 10% – 85% (non-condensing)
Storage Temperature -40 °F to 185 °F (-40 °C to 85 °C)
Dimensions 8.5 mm x 13.4 mm x 56.5 mm

Cloud Management & Licensing
Cloud Management Not applicable
Subscription Licensing Required No

Warranty & Support
Manufacturer Warranty 5-year limited hardware warranty
Support Type Return to factory
Service Availability 5 years
