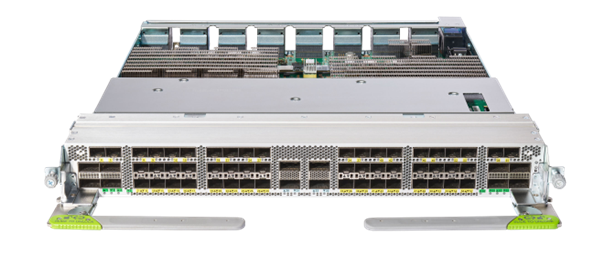

Cisco 8800 12xQSFP28-DD / 24xQSFP56-DD 12Tbps Line Card

VENDOR: CISCO Mfg Part#: 88-LC1-12TH24FH-E=
1 3
Photo is for illustration purposes only. Actual product may be different.
$339,187.50
$339,187.50
Sale Sold out
MSRP: $497,475.00
Shipping calculated at checkout.
  • Twelve QSFP+/QSFP28/QSFP-DD/QSFP56-DD ports supporting 40GbE to 200GbE
  • Twenty-four QSFP56-DD ports supporting up to 400GbE and 4x100GbE configurations
  • Total bandwidth capacity of 12Tbps for high-throughput environments
  • TAA compliant for government and enterprise procurement
  • Highly compatible with multilane QSFP optic standards
  • Manufactured in China

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports multiple QSFP form factors and speeds, providing flexible deployment options across evolving network infrastructures
  • Delivers an impressive 12Tbps total throughput, enabling bandwidth-intensive data center or enterprise applications
  • TAA compliance adds value for public sector or government-oriented projects requiring verified sourcing

Product Overview

The Cisco 8800 12xQSFP28-DD, 24xQSFP56-DD 12Tbps line card offers high-performance networking for data centers and enterprises. Featuring twelve ports supporting 40GbE to 200GbE speeds and twenty-four ports supporting up to 400GbE, it leverages QSFP+/QSFP28/QSFP-DD and QSFP56-DD optics for versatile configurations. With TAA compliance and a manufacturing origin in China, it's ideal for public sector deployments. Its integration with the Cisco 8800 platform supports reliable, scalable, and future-proof high-speed connectivity solutions.

Specifications

Product Overview
Product Type Line Card
Form Factor Plug-in module
Series Cisco 8800 Series
Total Switching Capacity 12 Tbps
Power Consumption Up to 850 Watts
Hot Swap Support Yes
Modular Design Yes

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin China
TAA Compliant Yes
RoHS Compliant Yes
WEEE Compliance Yes
EMC Compliance FCC Part 15, EN55032, ICES-003
Safety Certifications UL 60950-1, IEC 60950-1, CAN/CSA-C22.2
Environmental Standards Energy Efficient Ethernet (EEE)

Advanced Security Features
MACsec Encryption Support Yes (on supported optics)
Access Control Lists (ACLs) Yes
In-line Security Capabilities Yes (dependent on optics and interface)
Trustworthy Systems Features Secure Boot, Secure Unique Device Identifier (SUDI)
Traffic Segmentation Yes (VLAN, VRF support)

Interfaces
Total Ports 36
QSFP28-DD Ports 12
QSFP56-DD Ports 24
Supported Transceiver Form Factors QSFP+/QSFP28/QSFP-DD/QSFP56-DD
Port Speeds Supported (QSFP28-DD) 40GbE/100GbE/200GbE
Port Speeds Supported (QSFP56-DD) 100GbE/200GbE/400GbE
Data Rate Per Port (Max) 400 Gbps
Aggregate Data Throughput Up to 12 Tbps
Interface Type Ethernet
Connector Type QSFP-DD/QSFP56-DD
Auto Negotiation Yes
Full Duplex Support Yes

Physical & Environmental
Dimensions (H x W x D) 1.72 x 17.3 x 22.0 inches (4.37 x 43.94 x 55.88 cm)
Weight 28.6 lbs (13 kg)
Operating Temperature Range 5°C to 40°C (41°F to 104°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 85% noncondensing
Cooling Method Front-to-back or back-to-front airflow options (chassis dependent)
Heat Dissipation 2900 BTU/hr (estimated)

Cloud Management & Licensing
Management Interface Cisco IOS XE / CLI / NETCONF / RESTCONF
Supported Management Platforms Cisco DNA Center, Cisco Network Services Orchestrator (NSO)
Telemetry Support Yes, model-driven telemetry supported
Licensing Model Smart Licensing enabled
Included License Requires separate purchase or smart license agreement
