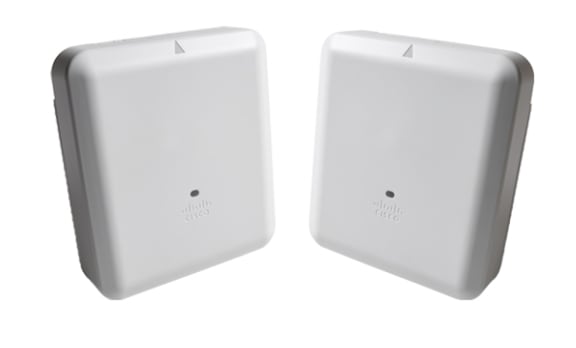

Cisco Aironet Mobility Express 4800 Series Access Point

VENDOR: CISCO Mfg Part#: AIR-AP4800-B-K9C
1 2
Photo is for illustration purposes only. Actual product may be different.
$1,822.73
$1,822.73
Sale Sold out
MSRP: $2,673.32
Shipping calculated at checkout.
  • Supports 802.11ac Wave 2 with data rates up to 5 Gbps
  • Dual-band operation: 2.4 GHz and 5 GHz frequencies
  • 4x4 MIMO architecture for improved wireless throughput
  • Three Ethernet ports for flexible networking options
  • 1 GB of installed RAM for stable device performance
  • TAA compliant with Limited Lifetime Hardware Warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers fast and reliable wireless connectivity with 802.11ac Wave 2 and 4x4 MIMO
  • Includes enterprise-level features such as TAA compliance and lifetime hardware warranty
  • Ideal for dense environments with high-capacity needs due to its tri-port design and robust throughput

Product Overview

The Cisco Aironet Mobility Express 4800 Series Access Point delivers high-speed 802.11ac Wave 2 support with data transfer rates up to 5 Gbps over 2.4 GHz and 5 GHz bands. Designed for enterprise-level wireless deployments, it integrates 4x4 MIMO and comes with three Ethernet ports for versatile connectivity. With 1 GB RAM and a compact build (8.68" x 9.9" x 2.9"), it ensures stable performance in dense environments. TAA compliance and a Limited Lifetime Hardware Warranty make it ideal for regulated sectors and long-term use.

Specifications

Product Overview
Product Type Wireless Access Point
Model Cisco Aironet 4800 Series
Form Factor Ceiling mountable
Processor Quad-core ARM processor
Memory 1 GB RAM
Storage Capacity 256 MB Flash
Power Options PoE, PoE+ (802.3af/at), local AC adapter
Power Consumption 25.5 W (maximum)
Weight 2.7 lbs (1.2 kg)

Wireless Features
Wireless Standards 802.11a/b/g/n/ac Wave 2
Frequency Bands 2.4 GHz and 5 GHz
Spatial Streams 4 spatial streams
Maximum Concurrent Clients 200+ clients per AP
Antenna Configuration Integrated Antennas (Internal)
Beamforming Yes
Band Steering Yes
Load Balancing Yes

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL/CSA, CE Mark, FCC Part 15B Class B, ICES-003

Advanced Security Features
Security Protocols WPA3, WPA2, WPA, TKIP, AES
Authentication Methods 802.1X, EAP, PSK
MAC Filtering Yes
Rogue AP Detection Yes
Integrated Wireless IDS/IPS Yes
Guest Access Management Yes
Application Visibility and Control (AVC) Yes
Cisco CleanAir Technology Yes
Cisco Trust Anchor Module Yes

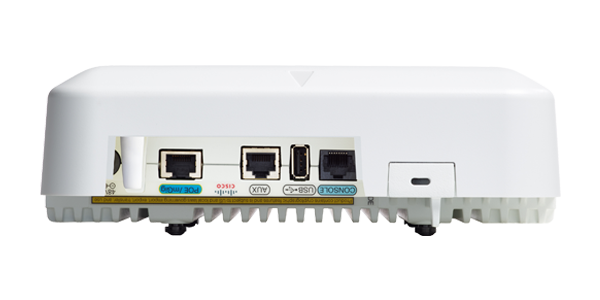

Interfaces
LAN Interfaces 3 x 10/100/1000BASE-T Ethernet ports
Management Port 1 x RJ-45
Console Port 1 x Micro-USB
Uplink Interface 1 x Multigigabit Ethernet
USB Port 1 x USB 2.0
Data Transfer Rate Up to 5 Gbps
MIMO Technology 4x4 MU-MIMO

Physical & Environmental
Width 8.68 inches (220.4 mm)
Depth 9.9 inches (251.8 mm)
Height 2.9 inches (73.7 mm)
Operating Temperature 0° to 40°C (32° to 104°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Temperature -20° to 70°C (-4° to 158°F)
Storage Humidity 5% to 95% (non-condensing)
Enclosure Type Plastic

Cloud Management & Licensing
Controller Type Integrated Mobility Express virtual controller
Management Interface Web GUI, Cisco Wireless Controller, CLI
Deployment Mode Autonomous, Controller-based, Mobility Express
Centralized Management Yes (Cisco DNA Center, Cisco Prime Infrastructure)
Licensing Model Smart Licensing (DNA licenses optional)
