Cisco ASR-9904 Modular Rack-Mountable Expansion Chassis

VENDOR: CISCO Mfg Part#: ASR-9904 UPC#: 882658781926
1 3

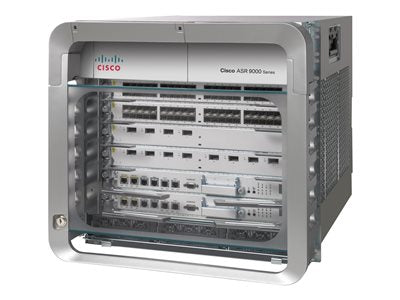

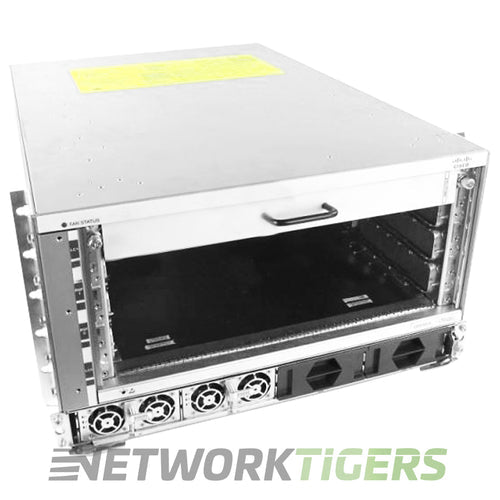

Photo is for illustration purposes only. Actual product may be different.
$12,744.01
$12,744.01
Sale Sold out
MSRP: $18,691.23
Shipping calculated at checkout.
  • Modular rack-mountable 6U chassis with 4 expansion slots
  • Supports internal power supply with optional redundancy
  • Compliant with global standards including FCC, IEC, and EN series
  • Operating temperature range from 41°F to 104°F with 5–95% humidity support
  • Physical dimensions: 17.8 in (W) x 10.4 in (D) x 25 in (H); weight: 68.78 lbs
  • TAA-compliant with manufacturing in Brazil, China, or Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Scalable expansion with 4 free modular slots enables future-proof network build-outs
  • Global standards compliance ensures suitability for international deployments and regulatory environments
  • Optional power redundancy enhances infrastructural resilience and service availability

Product Overview

The Cisco ASR-9904 is a modular expansion base designed for high-performance network environments. Its rack-mountable 6U form factor supports up to four expansion slots, enabling scalable network growth. It complies with a wide range of global electrical and safety standards, and offers optional power redundancy for improved uptime. With operational ranges from 41°F to 104°F and humidity support up to 95%, it’s suitable for challenging environments. Backed by a 1‑year warranty and TAA compliance, this chassis is a reliable foundation for service provider and enterprise deployments.

Specifications

Product Overview
Product Type Modular expansion base chassis
Form Factor Rack-mountable - 6U
Dimensions (W x D x H) 17.8 in x 10.4 in x 25 in
Weight 68.78 lbs
Power Device Internal power supply
Power Redundancy Optional
Installed Modules (Max) 0 (installed) / 4 (max)
Expansion Slots 4 x modular expansion slot
Connectivity Technology Wired
Manufacturer Warranty 1-year limited warranty
Service & Support Carry-in warranty - 1 year - response time: 20 days

Physical & Environmental
Minimum Operating Temperature 41 °F (5 °C)
Maximum Operating Temperature 104 °F (40 °C)
Humidity Range Operating 5% to 95% (non-condensing)
Cooling Method Fan tray (modular, dependent on configuration)
Rack Units 6U

Cloud Management & Licensing
Cloud Management Supported via Cisco IOS XR and Cisco Prime Infrastructure
Licensing Model Modular software-licensed features per function
Included Licensing None (line cards and software licensed separately)

Interfaces
Expansion Slot Type Modular slot for ASR 9000 series line cards and controllers
Supported Interface Cards Cisco ASR 9000 line cards, route processors, fan trays
Uplink Ports Dependent on installed modules
Interface Speed Up to 100 Gbps per slot (module-dependent)

Compliance & Origin
Country of Origin Brazil / China / Mexico
Trade Agreement Act (TAA) Compliant Yes
Compliance Standards ETSI, BSMI, CISPR 22 Class A, EN 55022, VCCI Class A, EN 55024, EN 61000-6-1
EMC Standards FCC CFR47 Part 15, ICES-003 Class A, AS/NZS 60950-1, EN 300 386
Safety Certifications EN 60950-1, IEC 60950-1, FDA, EN 60825
Environmental Standards IEC 61000-4 series (2, 3, 4, 5, 8, 11)

Advanced Security Features
Operating System Cisco IOS XR
Control Plane Protection Yes (via Cisco IOS XR features)
MACsec (802.1AE) Support Module-dependent
Access Control Lists (ACLs) Supported (platform level)
Network Address Translation (NAT) Supported in software
Firewall Capabilities Available via software configuration and hardware modules
Secure Boot and Image Verification Yes (Cisco IOS XR supports secure boot and image signing)
