CISCO ASR920 Series - 24GE and 4-10GE Modular PSU and IM

VENDOR: CISCO Mfg Part#: ASR-920-24SZ-IM
1 2

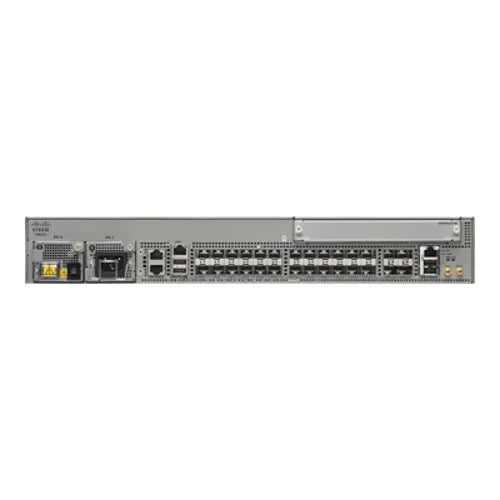

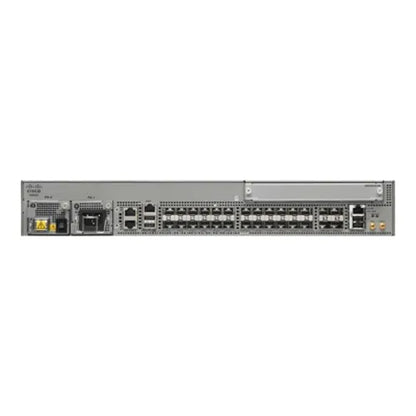

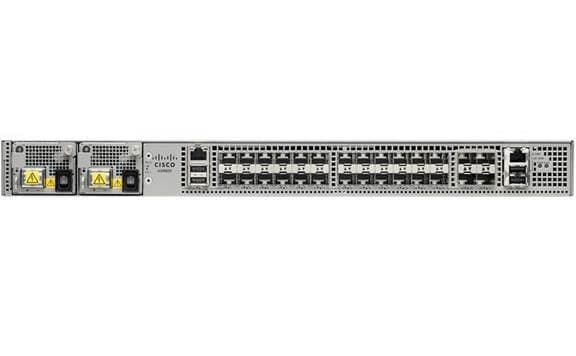

Photo is for illustration purposes only. Actual product may be different.
$6,210.14
$6,210.14
Sale Sold out
MSRP: $9,108.21
Shipping calculated at checkout.
  • 24 Gigabit Ethernet ports for high-density access
  • 4x 10-Gigabit Ethernet uplinks for scalable bandwidth
  • Modular power supply unit and interface module support
  • Complies with Trade Agreements Act (TAA)
  • Manufactured in four different countries for supply flexibility

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for metro access and aggregation due to 24-GE and 4x 10-GE port configuration
  • Modular PSU and IM allow hardware customization and future expansion
  • TAA compliance makes it suitable for government and federal procurement

Product Overview

The CISCO ASR920 Series is engineered for high-performance networking in demanding service provider and enterprise environments. Featuring 24 Gigabit Ethernet ports and 4 10-Gigabit Ethernet uplinks, the ASR-920-24SZ-IM model enables robust connectivity and flexible deployment options. Its modular configuration allows users to insert swappable power supplies and interface modules, making it adaptable for carrier-grade aggregation and backhaul applications.

This router is TAA-compliant, making it suitable for government networks, and its global manufacturing footprint enhances supply scalability. Technical specifications such as power draw or feature protocols are not available, but the unit's design supports scalable, high-capacity routing for enterprise and ISP-level infrastructure.

Specifications

Product Overview
Product Type Carrier Ethernet Aggregation Router
Series Cisco ASR 920 Series
Model ASR-920-24SZ-IM
Form Factor 1 RU rack-mountable
Power Supply Modular AC/DC power supply options
Power Consumption (Typical) 125W typical
Redundant Power Supported (dual power supply support)
Hot-swappable Components Yes (Power Supply Units, Interface Modules)
Modular Design Yes
Weight 13 lbs (5.9 kg) approx.

Wireless Features
Wireless Capability

Compliance & Origin
TAA Compliant Yes
Country of Origin Brazil / China / Mexico / Thailand
Certifications UL/CSA 60950-1, EN 60950-1, IEC 60950-1
EMC Compliance EN300386, FCC Part 15 Class A, ICES-003
RoHS Compliant Yes
NEBS Compliant Level 3

Advanced Security Features
Access Control Lists (ACLs) Yes
MACsec Encryption Supported on selected interfaces
Control Plane Policing (CoPP) Yes
Authentication Protocol Support RADIUS, TACACS+
Secure Boot and Image Signing Yes
Security Protocols IPSec, SSH, SNMPv3, HTTPS

Interfaces
Total Ethernet Ports 28
10/100/1000 Ethernet Ports 24 x SFP (Gigabit Ethernet)
10-Gigabit Ethernet Ports 4 x SFP+
Port Types SFP, SFP+
Management Ports 1 x RJ-45 console, 1 x USB, 1 x Out-of-band Ethernet management
Interface Module Slots 1
Throughput Up to 240 Gbps switching capacity
Forwarding Rate 168 Mpps

Physical & Environmental
Dimensions (H x W x D) 1.72 x 17.5 x 12.2 in (4.37 x 44.45 x 30.99 cm)
Operating Temperature -40°C to +65°C (-40°F to +149°F)
Storage Temperature -40°C to +70°C (-40°F to +158°F)
Operating Humidity 5% to 95% noncondensing
Storage Humidity 5% to 95% noncondensing
Altitude Up to 13,000 ft (4000 m)
Cooling Internal fans (front-to-back airflow)

Cloud Management & Licensing
Management Interface Cisco IOS XE CLI, SNMP, NETCONF, RESTCONF
Supported Management Platforms Cisco Prime, Cisco EPN Manager
License Model Right-to-use (RTU) licensing
Software Licensing Tier IP Base, Advanced Metro Services, Advanced IP Services
Zero-Touch Provisioning Yes
Remote Management Yes
