CISCO ATLAS IP-DM In-Wall LCD with Mic, PoE+, White

VENDOR: CISCO Mfg Part#: SP-ATLAS-IP-DM=

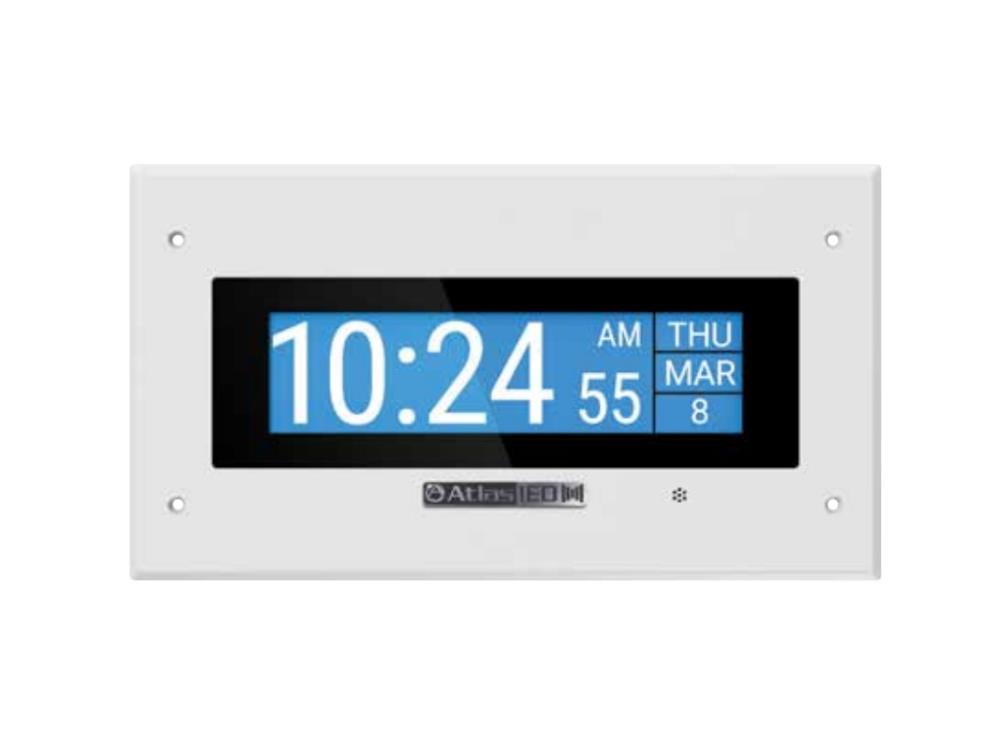

  • The CISCO SP-ATLAS-IP-DM= is an in-wall IP LCD panel featuring a talkback microphone, high-brightness back-lit display with 16 million colors, and PoE+ or 24VDC power support. Designed for easy integration, it offers robust Ethernet connectivity via RJ-45 and supports dynamic or static IP configuration.
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,193.28
$1,193.28
Sale Sold out
MSRP: $1,735.68
Shipping calculated at checkout.
  • LCD display with 16 million color support and 1900 cd/m² brightness
  • RJ-45 Ethernet interface with dynamic or static IP address support
  • Integrated microphone input and speaker for bidirectional communication
  • Supports PoE, PoE+, and 24VDC power options
  • Includes 2 GPI inputs and 1 GPI output for system integration
  • Complies with TAA regulations and includes a 1-year support warranty
View full details

Key Benefits

Eye-Insights
  • High-resolution LCD with exceptional brightness ensures visibility in diverse lighting conditions
  • Versatile interface options and PoE+/24VDC power support enable seamless installation in enterprise networks
  • Built-in audio and GPIO functionality make it ideal for secure, integrated communication systems

Product Overview

The CISCO ATLAS IP-DM is a professional-grade in-wall LCD panel with integrated microphone and speaker, delivering vibrant visuals with 16 million colors and a brightness of 1900 cd/m². Designed for complex environments, it supports dynamic/static IP via RJ-45 Ethernet and is powered through PoE+ or 24VDC. Included GPI inputs/outputs and a low-profile white design make it optimal for enterprise-grade deployments and infrastructure solutions.

Specifications

Primary Information
Model IP-DM
Display Type LCD Display
Flat / Curved Flat
Display / Color Support 16 Million Colors
Brightness 1900 cd/m2
HDR Capable None
Picture Enhancements None
Network Connectivity LAN
Speakers Yes
Interfaces RJ-45, 2 GPI inputs, 1 GPI output and a microphone input
Power Consumption SDR (On mode) None
Power Consumption HDR (On mode) None
Power / Voltage Required 24VDC
Color White
Stand None
Width 7.75 Inch
Depth 1.73 Inch
Height 13.88 Inch
Service & Support Type 1 Year
Features Dynamic or Static IP Address; Auto Registration and Auto Provisioning; IEEE802.3 10/100Base-T Ethernet; Network Controlled, High Resolution Multi-Color Liquid Crystal Display; IEEE 802.1q Tagging; Multicast Enabled Network Clock Control; Cisco SRST compliant

UNSPSC Code
UNSPSC Code 43211900

Power
Power / Voltage Required 24VDC
Power Consumption HDR (On mode) None
Power Consumption SDR (On mode) None

Special Feature
COO UNITED STATES
TAA compliance Yes

Display
Brightness 1900 cd/m2
Display / Color Support 16 Million Colors
Display Type LCD Display
Flat / Curved Flat
HDR Capable None
Picture Enhancements None
