Products Routers & Wireless Access Points Cisco C9130AXI Embedded Wir...

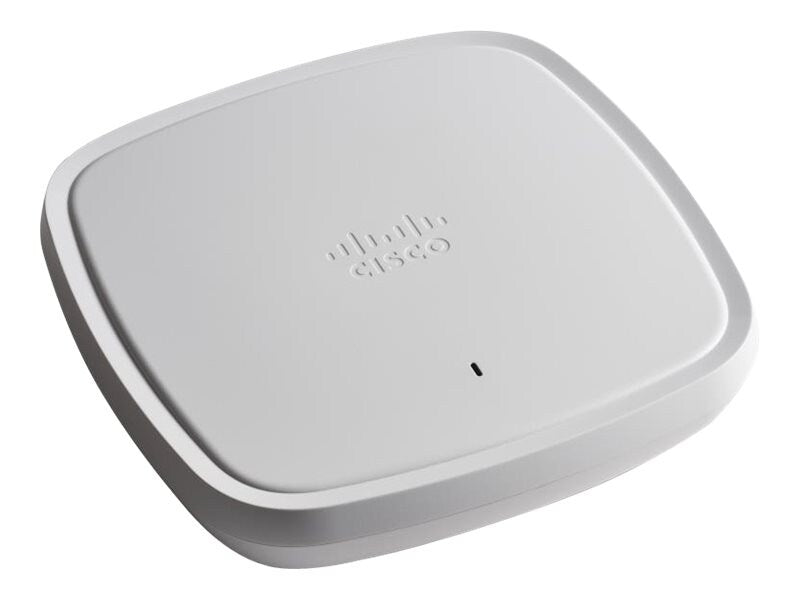

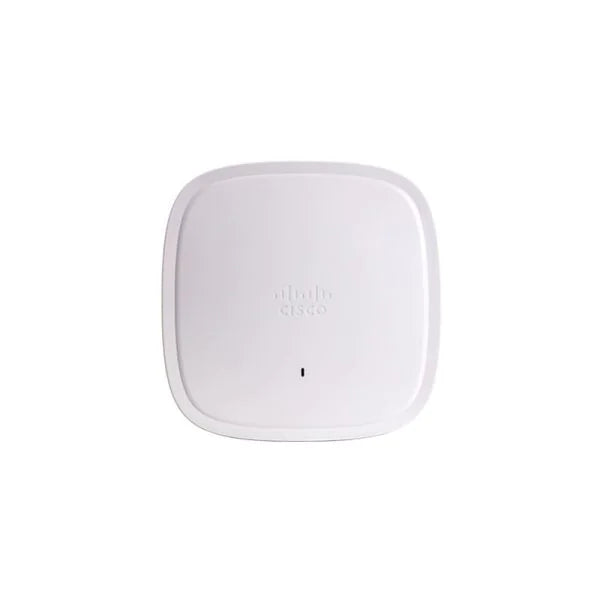

Cisco C9130AXI Embedded Wireless Controller Access Point, Wi-Fi 6

VENDOR: CISCO Mfg Part#: C9130AXI-EWC-B1
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,822.73
$1,822.73
Sale Sold out
MSRP: $2,673.32
Shipping calculated at checkout.
  • Wi-Fi 6 support with OFDMA, 8x8 and 4x4 MU-MIMO for high throughput
  • Integrated embedded wireless controller for simplified deployment
  • Dual-band (2.4GHz and 5GHz) with Bluetooth 5.0 LE and Zigbee IoT support
  • UPOE-enabled 1/2.5/5GBase-T Ethernet and USB 2.0 connectivity
  • Advanced security with WPA3, AES, TLS, and Cisco Trust Anchor module
  • 2 GB RAM and 1 GB flash memory for enhanced processing and storage

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Eliminates need for separate wireless controller with embedded management capability
  • Supports high-density environments and modern IoT applications with Wi-Fi 6 and MU-MIMO
  • Long-term investment protection with TAA compliance and limited lifetime warranty

Product Overview

The Cisco Embedded Wireless Controller on Catalyst 9130AXI Access Point delivers cutting-edge wireless performance by combining the power of Wi-Fi 6 (802.11ax) with embedded controller capabilities directly on the access point. Designed for indoor enterprise deployments, the unit supports a 2.4 GHz and 5 GHz dual-band architecture with advanced 8x8 and 4x4 MU-MIMO technology. The access point includes integrated Bluetooth 5.0 LE, Zigbee support, and comprehensive compatibility with modern IoT infrastructures.

Equipped with 2 GB of RAM and 1 GB of flash memory, the device supports OFDMA encoding and features high-efficiency functions such as beamforming, packet aggregation (A-MPDU and A-MSDU), and Target Wake Time (TWT) for improved power and bandwidth management. Its compact 8.9” x 8.9” x 1.9” chassis includes a low profile bracket and ceiling mount clip for flexible installation. The unit supports UPOE through a 1/2.5/5GBase-T port, along with RJ-45 and USB 2.0 interfaces for added manageability.

Security and reliability are strengthened through protocols like WPA3, 802.1x authentication, and the Cisco Trust Anchor module. TAA-compliant and backed by a limited lifetime warranty, the C9130AXI offers a strong ROI for businesses requiring scalable, high-density wireless networks without separate controller infrastructure.

Specifications

Product Overview
Product Type Wireless Access Point
Product Series Cisco Catalyst 9130
Model C9130AXI-EWC-B1
Embedded Controller Yes (Cisco Embedded Wireless Controller)
Wi-Fi Generation Wi-Fi 6 (802.11ax)
RAM 2 GB
Flash Memory 1 GB
Form Factor External - Indoor
Weight 3.2 lbs
Power Requirements UPOE (Universal Power over Ethernet)
Included Software Cisco Embedded Wireless Controller Software Image
Mounting Options Ceiling grid clip, low profile bracket included
Warranty Limited Lifetime Warranty

Wireless Features
Frequency Bands 2.4 GHz and 5 GHz dual band
Wi-Fi Standards 802.11a/b/g/n/ac/ax
Bluetooth Version Bluetooth 5.0 Low Energy (LE)
IoT Support Zigbee, Bluetooth LE
Antenna Type Internal
Modulation OFDMA

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications Wi-Fi 6 CERTIFIED
Compliant Standards IEEE 802.3, 802.3af, 802.3at, 802.3bt, 802.3bz, 802.11a/b/g/n/ac/ax, 802.1x, UL 60950-1, IEC 60950-1, FCC Part 15, EN 55032, EN 55024, CISPR 32, and others

Advanced Security Features
Authentication Methods 802.1x, EAP-FAST, EAP-SIM, PEAP, MS-CHAP v.2
Encryption Protocols AES, WPA2, WPA3, TLS, TTLS
Trust Module Cisco Trust Anchor Module (TAM)
Security Features Secure boot, image signing, WPA3, 802.1x, WIPS

Interfaces
Ethernet Interface 1 x 1/2.5/5GBase-T (UPOE) - RJ-45
Management Port 1 x RJ-45 console port
USB Port 1 x USB 2.0
Connectivity Technology Wireless
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5G Ethernet, 5G Ethernet, IEEE 802.11a/b/g/n/ac/ax, Bluetooth 5.0 LE
Coding Techniques OFDMA, Beamforming, MU-MIMO, A-MPDU, A-MSDU
MU-MIMO Technology 8x8 MU-MIMO (5 GHz), 4x4 MU-MIMO (2.4 GHz)

Physical & Environmental
Width 8.9 in
Depth 8.9 in
Height 1.9 in
Operating Temperature Range 32°F to 122°F (0°C to 50°C)
Operating Humidity 10% to 90% (non-condensing)
Ruggedized No (Indoor use only)
Status Indicators Status LED

Cloud Management & Licensing
Management Interface Cisco Embedded Wireless Controller (on-device)
Licensing Model License-Free Operation (Controller Embedded)
Cloud Compatibility Compatible with Cisco DNA Center (optional integration)
