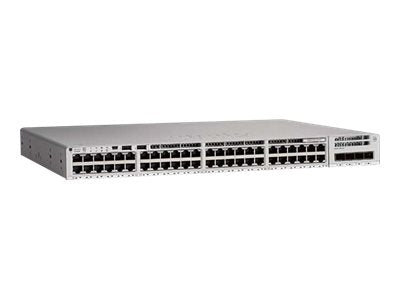

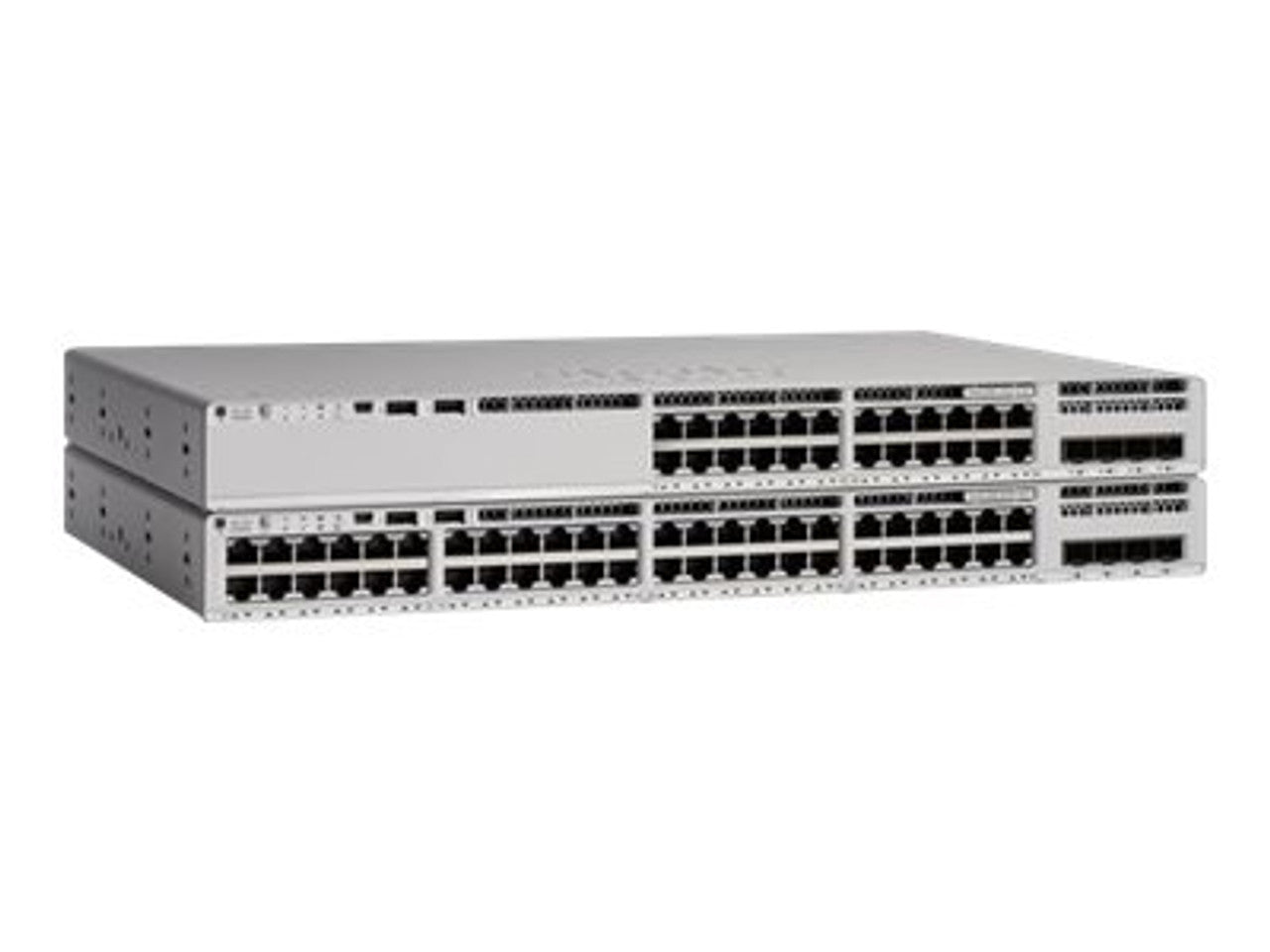

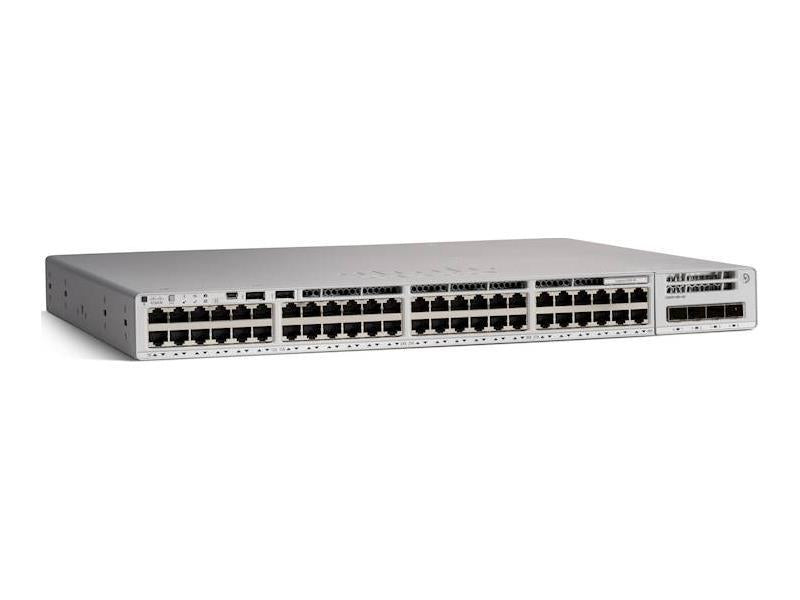

Cisco C9200-48PL-E++ 48-Port Gigabit PoE+ Switch, TAA-Compliant

VENDOR: CISCO Mfg Part#: C9200-48PL-E++
  • Cisco Catalyst 9200 Series 48-port switch offers enterprise-grade, partial PoE+ capabilities with a robust 370W power budget, 4 GB memory, and 4 GB flash storage. Designed for wired Layer 2 and Layer 3 networking, it supports Gigabit Ethernet, advanced routing protocols, and IEEE 802.3bt standards. This TAA-compliant unit ensures encrypted, reliable connectivity for secure deployments in government and commercial environments.
1 1
Photo is for illustration purposes only. Actual product may be different.
$4,704.51
$4,704.51
Sale Sold out
MSRP: $6,842.93
Shipping calculated at checkout.
  • 48 Gigabit Ethernet ports with PoE+ support and 370W total PoE power budget
  • Layer 2 and Layer 3 routing with RIPv2, RIPng, and OSPFv3 protocols
  • 4 GB RAM and 4 GB Flash storage for configuration and runtime efficiency
  • Support for Jumbo Frames up to 9198 bytes and up to 32,000 MAC addresses
  • Remote management options via SNMP, Syslog, and DHCP
  • Compliance with IEEE 802.3bt, AES encryption, and full TAA certification
View full details

Key Benefits

Eye-Insights
  • Empowers enterprise-grade deployments with 48 PoE+ ports supporting a 370W total power budget, facilitating IP devices without extra power infrastructure
  • Boosts network reliability and uptime with support for IEEE standards, advanced Layer 3 protocols, and a 375,570-hour MTBF
  • TAA-compliant design and AES encryption make it suitable for government and secure commercial deployments

Product Overview

The Cisco C9200-48PL-E++ is a 48-port Gigabit Ethernet switch from the Catalyst 9200 Series, providing partial PoE+ support with a 370W power budget. It enables Layer 2/Layer 3 functionality with routing capabilities including RIPv2, RIPng, and OSPFv3. Built for enterprise deployment, it features 4 GB RAM and 4 GB flash, along with comprehensive management via SNMP, Syslog, and DHCP. The unit is TAA-compliant and built with AES encryption and IEEE 802.3bt standard support, making it a reliable choice for secure and critical networking scenarios.

Specifications

Primary Information
Model C9200-48PL-E
Network Device Type Switch
Connectivity Technology Wired
Data Transfer Rate 1 Gbps
Networking / Ports Qty 52
Data Link Protocol Gigabit Ethernet
Status Indicators LED indicators
RAM / Total Installed Size 4 GB
Flash Memory / Installed Size 4 GB
Networking Compliant Standards IEEE 802.3bt, IEEE 802.1s,IEEE 802.1w
Media Layer Supported layer 2, layer 3
Power / Device Type Power Supply
Power / Provided (W) 600 Watt
Power / Voltage Required 100 to 240 VAC, 50 to 60 Hz
MTBF 375570 hours
Features Full Power over Ethernet Plus (PoE+) capability; Resiliency with Field-Replaceable Units (FRU) and redundant power supply; Enhanced security with AES-128 MACsec encryption

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 48-port POE+

Service&Support
Service & Support Type Enhanced Limited Lifetime Warranty

Special Feature
COO MEXICO
TAA compliance Yes
Min Operating Temperature -5 celsius
Min Storage Temperature -40 celsius
Max Storage Temperature 70 celsius
RoHS Y

Network
Power Over Ethernet (PoE) Support Yes
PoE Power Consumption 370W
MAC Address Table Size 32000
Jumbo Frame Support 9198 bytes
Remote Management Protocol DHCP; Syslog; SNMP
Routing Protocol RIPv2,RIPng,OSPFv3
Encryption Algorithm AES
Interfaces 48-port POE+

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 13.8 Inch
Height 1.73 Inch
Weight 5.5 Kg
