Cisco C9200CX-12P-2X2G-E Catalyst 9200 12-Port PoE+ Compact Switch

VENDOR: CISCO Mfg Part#: C9200CX-12P-2X2G-E UPC#: 889728447126
  • Cisco's Catalyst 9200CX-12P-2X2G-E is a compact managed switch offering 12 PoE+ 1G ports, dual 10G uplinks, and robust Layer 2/3 support. Designed for high-efficiency deployments with a 240W PoE power budget, it meets the demands of modern enterprise networks. Enhanced with advanced networking protocols, 8 GB of flash, and 4 GB memory, this TAA-compliant switch ensures long-term scalability and reliability.
1 1

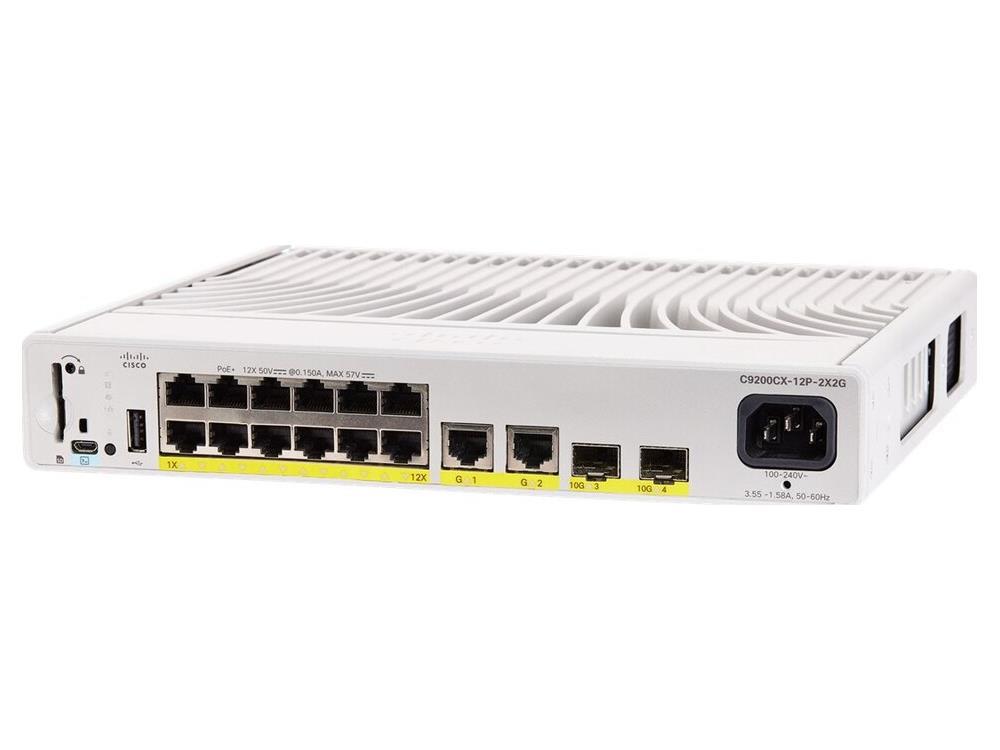

Photo is for illustration purposes only. Actual product may be different.
$2,222.78
$2,222.78
Sale Sold out
MSRP: $2,876.32
Shipping calculated at checkout.
  • 12-port 1G PoE+ switch with total 240W power output
  • Dual 10G/1G uplink ports for high-speed connections
  • Supports advanced network protocols including SNMP, DHCP, RIPng, and OSPFv3
  • 8 GB flash and 4 GB RAM for configuration and performance
  • Compliant with IEEE 802.3bt, 802.1s, and 802.1w standards
  • TAA-compliant design for government and secure installations
View full details

Key Benefits

Eye-Insights
  • Ideal for compact enterprise deployments needing Power over Ethernet, offering 240W across 12 ports
  • Dual 10G uplinks and Layer 3 protocol support deliver flexible, high-bandwidth aggregation
  • Backed by Cisco’s Enhanced Limited Lifetime Warranty for peace of mind and long-term value

Product Overview

The Cisco Catalyst 9200CX-12P-2X2G-E compact switch delivers outstanding performance with 12 1G PoE+ ports and a 240W PoE budget, ideal for powering connected devices like APs and cameras. Its dual 10G uplinks offer enhanced bandwidth, while Layer 2 and Layer 3 support along with advanced protocols like SNMP, DHCP, and OSPFv3 make it suitable for complex enterprise networks. With 8 GB flash and 4 GB memory, it ensures fast operation and reliable storage. TAA compliance and Cisco's warranty further add long-term value.

Specifications

Primary Information
Power / Device Type Power Supply
Power / Voltage Required 100 to 240 VAC, 50 to 60 Hz
Model C9200CX-12P-2X2G
Network Device Type Switch
Connectivity Technology Wired
Data Transfer Rate 10 Gbps
Networking / Ports Qty 18
Data Link Protocol Gigabit Ethernet
Status Indicators LED
RAM / Total Installed Size 4 GB
Flash Memory / Installed Size 8 GB
Networking Compliant Standards 802.1s, 802.1w, 802.1p
Media Layer Supported Layer 2, Layer 3
Uplink Port 2
Power / Provided (W) 315 Watt
MTBF 704430 hours
Features Full Power over Ethernet Plus (PoE+) capability; Resiliency with Field-Replaceable Units (FRU) and redundant power supply; Enhanced security with AES-128 MACsec encryption

Special Feature
COO MEXICO
RoHS Y
TAA compliance Yes
Min Operating Temperature -5 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius

Network
Power Over Ethernet (PoE) Support Y
MAC Address Table Size 32000
Jumbo Frame Support 9198 bytes
Remote Management Protocol Syslog; RMON; SNMP
Routing Protocol RIPv1, IS-ISv4, OSPF
Encryption Algorithm AES (256-bit)
SFP+ Ports 2
Interfaces 12 ports PoE+, 2x 1G copper, 2x 10G SFP+ fixed uplinks, Micro USB

Service&Support
Service & Support Type Enhanced Limited Lifetime Warranty

Dimensions&Miscellaneous
Width 10.6 Inch
Depth 9.6 Inch
Height 1.73 Inch
Weight 6.6 lbs.

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 12 ports PoE+, 2x 1G copper, 2x 10G SFP+ fixed uplinks, Micro USB
SFP+ Ports 2
