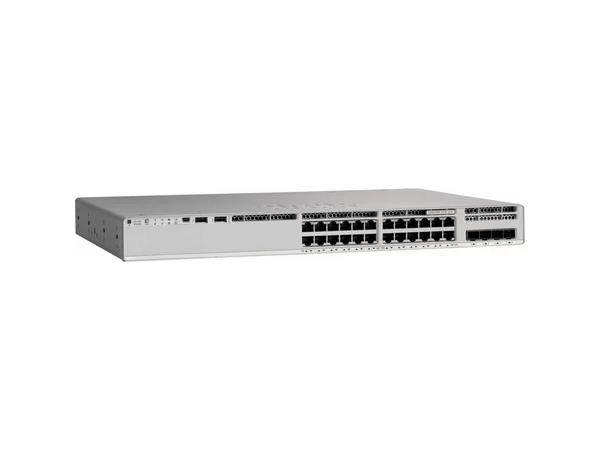

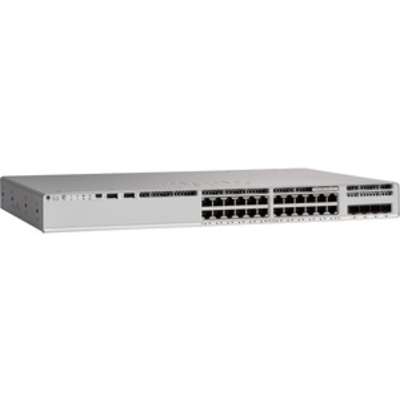

Cisco C9200L-24P-4X-E Switch, 24p PoE+, 4x 10G SFP+ Uplinks

VENDOR: CISCO Mfg Part#: C9200L-24P-4X-E++ UPC#: 889728173445
  • The Cisco C9200L-24P-4X-E is a powerful TAA-compliant Layer 3 switch designed for modern enterprise networks. With 24 full PoE+ ports and 4 high-speed 1/10G uplinks, it delivers high-performance connectivity, centralized management, and reliable power delivery. Built with enterprise-grade routing protocols and robust features, this switch ensures scalable IT infrastructure for growing business needs.
1 1
Photo is for illustration purposes only. Actual product may be different.
$3,531.08
$3,531.08
Sale Sold out
MSRP: $5,136.12
Shipping calculated at checkout.
  • 24 full PoE+ Gigabit Ethernet ports for power and data delivery
  • 4 fixed 1/10G SFP+ uplink ports for high-speed backbone connectivity
  • Layer 2 and Layer 3 switching with RIP, OSPF, and IS-IS routing support
  • 2GB RAM and 4GB Flash memory for stable and responsive operations
  • Supports remote management via SNMP, Syslog, and DHCP
  • Complies with TAA and RoHS standards, backed by Enhanced Limited Lifetime Warranty
View full details

Key Benefits

Eye-Insights
  • Delivers powerful Layer 3 routing and 10 Gbps uplink speeds—ideal for scalable enterprise environments
  • Built-in PoE+ across all 24 ports cuts down on cabling and power requirements for IoT and VoIP devices
  • TAA compliance combined with extensive protocol support ensures compatibility with federal and secure deployments

Product Overview

The Cisco C9200L-24P-4X-E is a Layer 2/3 managed switch with 24 PoE+ ports and 4 fixed 1/10G uplinks, ideal for enterprise networks. It supports advanced routing protocols including RIP, OSPF, and IS-IS, and features 2GB RAM and 4GB Flash memory for efficient performance. With SNMP, Syslog, and DHCP support, network management is simplified. Its 16000 MAC address table, MTBF over 390,000 hours, and Enhanced Limited Lifetime Warranty ensure reliability and long-term ROI. Fully TAA-compliant and RoHS certified, it's a solid choice for federal and environmentally responsible deployments.

Specifications

Primary Information
Network Device Type Switch
Model C9200L-24P-4X-E
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 10 Gbps
Data Link Protocol Gigabit Ethernet
Status Indicators LED indicators
RAM / Total Installed Size 2 GB
Flash Memory / Installed Size 4 GB
Networking Compliant Standards IEEE 802.1s, IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at
Media Layer Supported Layer 2 and Layer 3
Power / Device Type Power Supply
Uplink Port 4x10G uplink
Power / Provided (W) 600 Watt
Power / Voltage Required 100 to 240 VAC
MTBF 390310 hours
Features Cisco Software-Defined Access (SD-Access) Plug and Play (PnP) enabled Cisco IOS XE Cloud management ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries.

Special Feature
COO MEXICO
TAA compliance Yes
Min Operating Temperature -5 degree celsius
Max Operating Temperature 45 degree celsius (1500m); 40 degree celsius (3000m)
Min Storage Temperature -40 degree celsius
Max Storage Temperature 70 degree celsius

Service&Support
Service & Support Type Enhanced Limited Lifetime Warranty

Interfaces / Ports
Interfaces 24-port PoE+ 4x10G uplink, Ethernet management port, Management console port

Dimensions&Miscellaneous
Depth 11.3 Inch
Width 17.5 Inch
Height 1.73 Inch
Weight 4.71 Kg

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support Yes
PoE Power Consumption 370W
MAC Address Table Size 16000
Jumbo Frame Support 9198 bytes
Remote Management Protocol DHCP; Syslog; RMON; SNMP
Routing Protocol OSPF, EIGRP, ISIS, RIP
Encryption Algorithm AES
Interfaces 24-port PoE+ 4x10G uplink, Ethernet management port, Management console port
