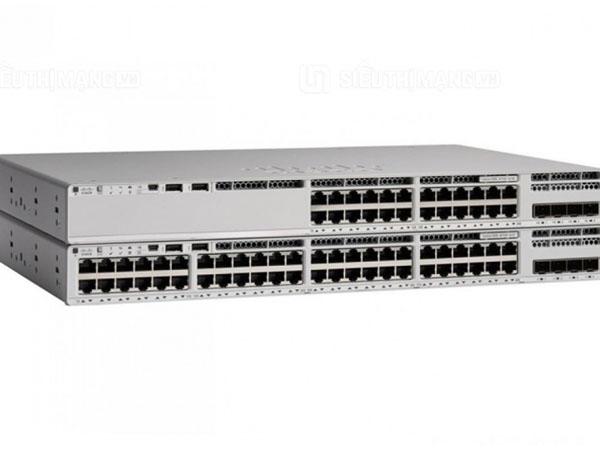

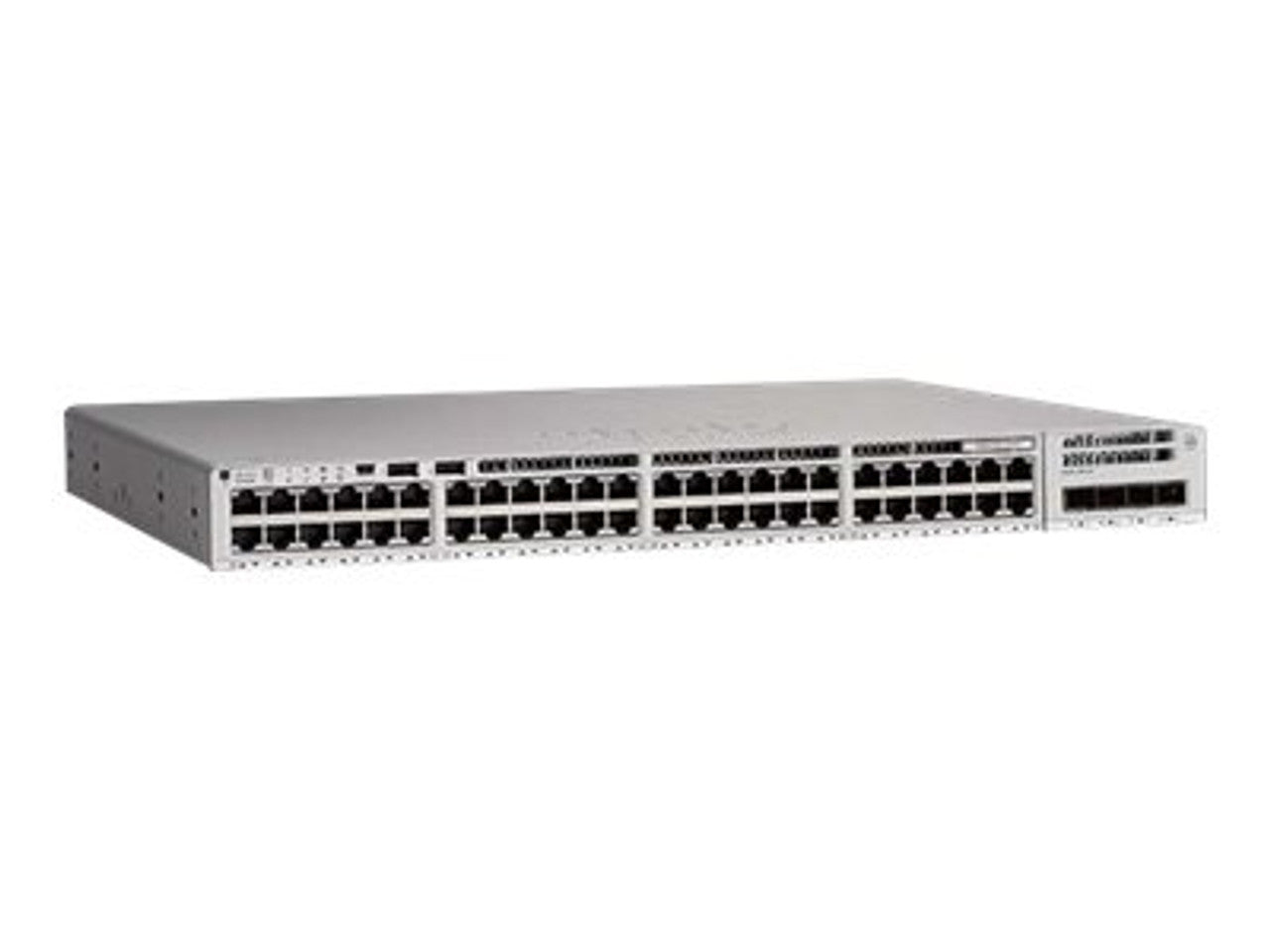

Cisco C9200L-48PXG-4XA++ 48-Port L3 Managed PoE+ Switch

VENDOR: CISCO Mfg Part#: C9200L-48PXG-4XA++
1 3
Photo is for illustration purposes only. Actual product may be different.
$8,028.13
$8,028.13
Sale Sold out
MSRP: $11,774.58
Shipping calculated at checkout.
  • 48-port Layer 3 managed switch with 12 x multi-Gigabit and 36 x PoE+ ports
  • Supports 4 x 10G SFP+ uplinks and StackWise-80 technology (80 Gbps stacking bandwidth)
  • PoE+ capability with 740W power budget and hot-plug redundant power option
  • High-density forwarding with 291.66 Mpps and switching capacity up to 392 Gbps (472 Gbps with stacking)
  • Robust protocol support including OSPF, EIGRP, VRRP, RIPng, and policy-based routing
  • Comprehensive security with 128-bit AES encryption and MACsec support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-level scalability and performance with 80 Gbps stacking and multi-Gigabit support
  • Built to comply with TAA requirements, ideal for government and regulated market deployments
  • Equipped with rich Layer 3 routing features and full security integration for modern enterprise networks

Product Overview

The Cisco Catalyst C9200L-48PXG-4XA++ is an enterprise-grade Layer 3 switch supporting 48 total ports, including 12 multi-Gigabit and 36 PoE+ ports, with a PoE budget of 740W. It features 4x10G uplinks and enables stacking with 80 Gbps bandwidth using Cisco StackWise-80 technology. With advanced routing and switching features, support for extensive protocols, and robust security with 128-bit AES and MACsec, it's engineered for secure and scalable networks. Ideal for TAA-compliant deployments, the device includes lifetime warranty support and offers high reliability in energy-efficient, rack-mountable design.

Specifications

Product Overview
Type Layer 3 Managed Stackable Switch
Form Factor Rack-mountable
Weight 12.59 lbs
Power Requirements AC 100-240 V (50 - 60 Hz)
Power Provided 1000 Watt
Power Device Internal power supply - hot-plug
Power Redundancy Optional
MTBF 337,360 hours
RAM 2 GB
Flash Memory 4 GB

Wireless Features
Wireless Capabilities

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, FCC Part 15 Class A, EN 55032 Class A, CISPR 32 Class A, VCCI Class A, BSMI, ICES-003, CCC, EN 300 386, KN32, KN35, CISPR 24, EN55024
IEEE Standards 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3af, 802.3x, 802.3ad, 802.1w, 802.1x, 802.1s, 802.1ab, 802.3at, 802.3bz

Advanced Security Features
Encryption 128-bit AES
MACsec Supported
Features DHCP snooping, Dynamic ARP Inspection, IP Source Guard, Port Security, Private VLAN, 802.1X, Control Plane Protection (CoPP), Storm Control
Routing Protocols OSPF, EIGRP, RIP v1/v2, IS-IS, RIPng, OSPFv3, HSRP, VRRP, PIM-SM, PIM-SSM, MSDP, Policy-based Routing

Interfaces
Total Ports 48 data ports + 4 uplink ports
Multi-Gigabit Ports 12 x 100/1000/2.5G/5G/10GBase-T RJ-45
PoE+ Ports 36 x 10/100/1000Base-T RJ-45 (PoE+)
PoE Budget 740 W
Uplink Ports 4 x 10GBase-X SFP+
Management Port 1 x RJ-45 (LAN)
Console Port 1 x RJ-45
Stacking Port 1 x StackWise-80
Stacking Bandwidth 80 Gbps
Switching Capacity 392 Gbps
Switching Capacity with Stacking 472 Gbps
Forwarding Rate 291.66 Mpps
MAC Address Table Size 16000 entries
Jumbo Frame Support 9198 bytes

Physical & Environmental
Width 17.5 in
Depth 13.8 in
Height 1.7 in
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 - 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 - 90% (non-condensing)

Cloud Management & Licensing
Remote Management Protocols SNMP (v1, v2c, v3), RMON (1,2), CLI, NETCONF, RESTCONF
Management Features Cisco DNA Center, Cisco IOS XE, Cisco Smart Licensing
Service & Support Limited lifetime warranty, 90 days TAC support, NBD hardware replacement

Additional Features
VLANs Supported 1024
Switched Virtual Interfaces (SVIs) 512
QoS Queues per Port 8
Packet Buffer Size 6 MB
Flow Monitoring Flexible NetFlow (FNF) - 16000 entries
ACL Scale Entries 1500
Multicast Scale 1000
IPv4 Routes Supported 11000
IPv4 Routing Table Entries 3000
IPv6 Routing Table Entries 1500
Virtual Networks 1
