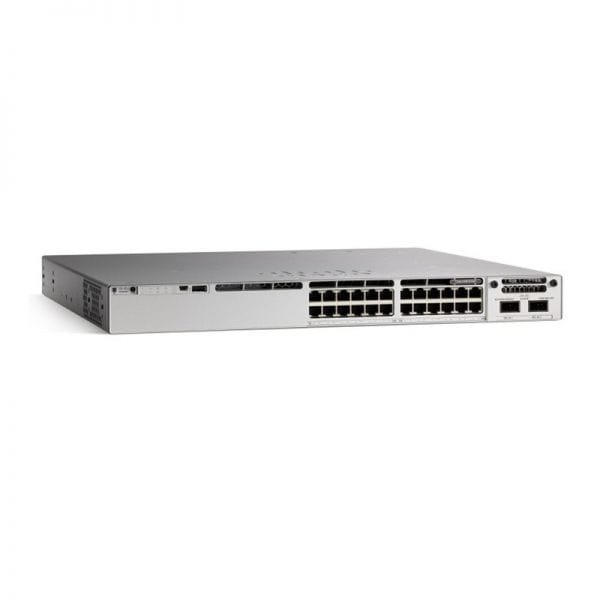

Cisco C9300-24UB-A Catalyst 9300 24-Port UPOE Switch

VENDOR: CISCO Mfg Part#: C9300-24UB-A
  • The Cisco Catalyst 9300 Series C9300-24UB-A is a 24-port managed switch with UPOE capabilities designed for enterprise-grade networks. Built with the Network Advantage software, it delivers advanced Layer 3 routing, extensive security features, and scalable performance ideal for large infrastructures. With a PoE budget of 830W and support for Cisco StackWise and StackPower technologies, it offers both operational efficiency and high availability.
1 1

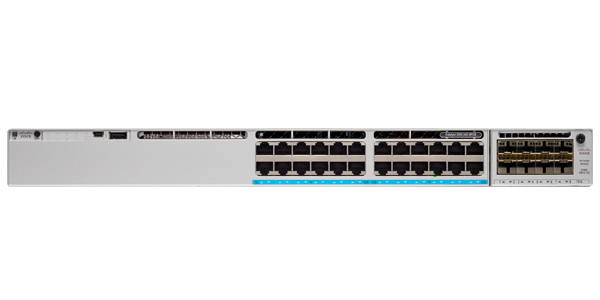

Photo is for illustration purposes only. Actual product may be different.
$6,936.36
$6,936.36
Sale Sold out
MSRP: $10,089.26
Shipping calculated at checkout.
  • 24 x 10/100/1000 (UPOE) ports with 830W total PoE budget
  • Switching capacity: 208 Gbps; stacking bandwidth: 688 Gbps
  • Layer 3 routing support with protocols like OSPF, BGP, EIGRP, RIP
  • Advanced security with MACsec support and policy-based routing
  • Remote management via SNMP v3, NETCONF, RESTCONF, and CLI tools
  • StackWise-480 and StackPower support for high availability and scalability
View full details

Key Benefits

Eye-Insights
  • Supports high PoE power applications with 830W UPOE, ideal for powering IP phones, cameras, and access points
  • Advanced Layer 3 feature set and routing scalability accommodate complex enterprise network topologies
  • Future-ready with support for Cisco StackWise and redundant power options, ensuring uptime and easy expansion

Product Overview

The Cisco C9300-24UB-A is a high-performance Layer 3 switch built for enterprise networks, delivering 24 UPOE ports with an 830W power budget. It provides 208 Gbps switching capacity and exceptional stack scalability using StackWise-480 for up to 688 Gbps stacking bandwidth. Security and protocol options are comprehensive, including MACsec encryption, advanced QoS, and routing protocol support for OSPF, BGP, EIGRP, and others. With SNMP v3, RESTCONF, and integrated Wireshark, it ensures precise diagnostics and remote manageability. Built with 8 GB RAM, 16 GB flash memory, and a hot-plug capable internal power supply, it offers dependable and scalable performance with a 354,300-hour MTBF.

Specifications

Primary Information
Network Device Type Switch
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Model C9300-24UB-A
Connectivity Technology Wired
Status Indicators LED indicators
RAM / Total Installed Size 8 GB
Flash Memory / Installed Size 16 GB
Networking Compliant Standards IEEE 802.3, IEEE 802.1s, IEEE 802.1ba
Media Layer Supported Layer 2 and Layer 3
Power / Device Type Power Supply
Power / Provided (W) 1100 Watt
Power / Voltage Required 115Vac
MTBF 354300 hours
Features Automated device provisioning; API-driven configuration; Granular visibility; Seamless software upgrades and patching

Service&Support
Service & Support Type Enhanced Limited Lifetime hardware Warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Interfaces 24-port 1G copper with modular uplinks
Power Over Ethernet (PoE) Support yes
PoE Power Consumption 1440W
MAC Address Table Size 32000
Jumbo Frame Support 9198 bytes
Remote Management Protocol DHCP; IPv6; SNMP
Routing Protocol RIPv1, RIPv2, RIPng,OSPF
Encryption Algorithm AES

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 16.1 Inch
Height 1.73 Inch
Weight 7.54 Kg

Special Feature
COO CHINA / UNITED STATES / UNITED STATES
TAA compliance Yes
Min Operating Temperature -5 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
RoHS Y

Interfaces / Ports
Interfaces 24-port 1G copper with modular uplinks
