Cisco C9300-48UXM-1E 48-Port MGig Network Switch, Network Essentials

VENDOR: CISCO Mfg Part#: C9300-48UXM-1E UPC#: 889728135504
1 3

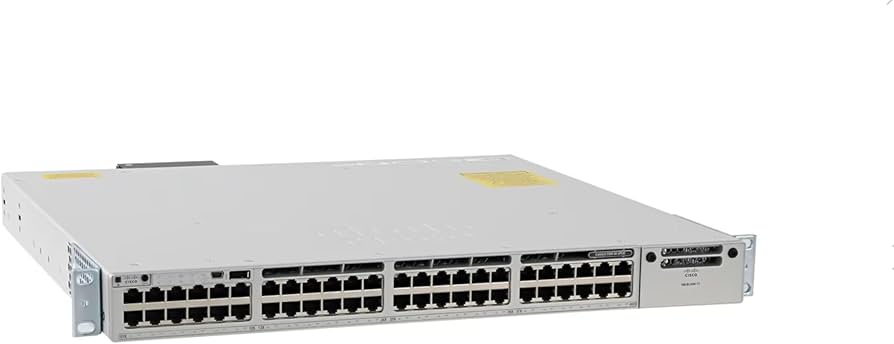

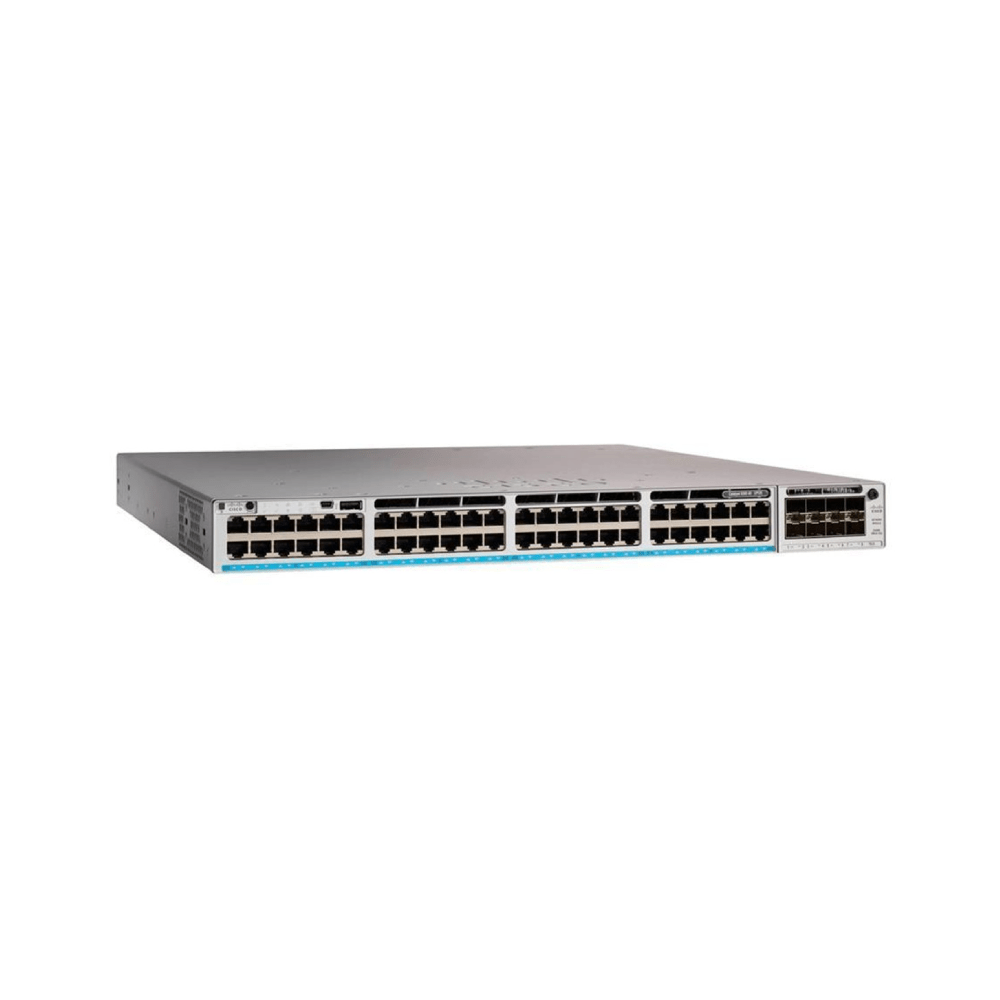

Photo is for illustration purposes only. Actual product may be different.
$9,791.06
$9,791.06
Sale Sold out
MSRP: $14,360.22
Shipping calculated at checkout.
  • - 48-port managed switch: 36 x 2.5GBase-T UPOE + 12 x 100/1000/2.5G/5G/10G UPOE
  • - Switching capacity of 580 Gbps and forwarding rate up to 431.54 Mpps
  • - Supports stackable architecture with Cisco StackWise-480 and StackPower
  • - Layer 3 functionality with support for OSPF, BGP, EIGRP, MPLS, and more
  • - Jumbo frame support up to 9198 bytes and MACsec security
  • - 490W PoE budget to power devices with UPOE across all ports

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Delivers high-speed multi-gigabit connectivity and enterprise-class Layer 3 performance for scalable, high-density deployments
  • - Power-efficient with 490W UPOE budget and optional redundant power support ensures uptime for critical devices
  • - Included Cisco Network Essentials software simplifies management and enhances network reliability for 1 year

Product Overview

The Cisco C9300-48UXM-1E is a high-performance, stackable Layer 3 switch offering 48 multi-gigabit ports, tailored for modern enterprise and government networks. Built into a compact 1U rack-mountable chassis, this switch delivers both speed and efficiency with 36 x 2.5GBase-T and 12 x 100/1000/2.5G/5G/10G UPOE-enabled ports. Backed by Cisco Network Essentials software for 1 year, it supports a wide range of routing protocols including OSPF, BGP, EIGRP, and MPLS.

With a switching capacity of 580 Gbps and forwarding rate of 431.54 Mpps, the C9300-48UXM-1E suits bandwidth-heavy, latency-sensitive use cases. Redundant power support and a 490W PoE budget offer strong support for connected devices like IP phones and wireless APs. Features such as QoS, ACLs, MACsec encryption, and Cisco StackWise-480 and StackPower ensure secured, scalable network deployment. The model is also supported with lifetime warranty and NBD replacement service.

Specifications

Product Overview
Product Type Managed Layer 3 Stackable Network Switch
Form Factor Rack-mountable 1U
Weight 20.59 lbs
Power Requirements AC 120/230 V (50 - 60 Hz)
Power Provided 1100 Watt
Power Redundancy Optional
Installed Power Supply Units 1
Max Supported Power Supply Units 2
MTBF 202,160 hours

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin UNITED STATES
TAA Compliant Yes
Certifications UL 60950-1, IEC 60950-1, EN 60950-1, FCC CFR47 Part 15 A, RoHS, VCCI Class A, CCC, BSMI Class A, EN 300 386, AS/NZS 3548 Class A, EN55024, EN 61000 Series

Advanced Security Features
Encryption MACsec (802.1AE), 128-bit AES
Access Control 802.1x authentication, ACL support
Security Features CoPP, SGT caching, Private VLAN, Trunking, VLAN Double Tagging (Q-in-Q)

Interfaces
Port Configuration 36 x 2.5GBase-T + 12 x 1G/2.5G/5G/10GBase-T (UPOE)
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
PoE Support Yes, UPOE
PoE Budget 490 W
Port Type RJ-45 UPOE
USB Ports 1 x USB 2.0 Type A
Expansion Slots 1 x Modular expansion slot (total 1, free 1)
Jumbo Frame Support 9198 bytes
Stacking Bandwidth 480 Gbps

Physical & Environmental
Width 17.5 in
Depth 22.2 in
Height 1.7 in
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Operating Humidity Range 5 - 90% (non-condensing)
Storage Humidity Range 5 - 90% (non-condensing)
Cooling Fans 3 integrated fans

Cloud Management & Licensing
Remote Management Protocols SNMP v1/v2c/v3, RMON 1/2, CLI, NETCONF, RESTCONF
Software Included Cisco Network Essentials (1 year)

Performance & Capacity
Switching Capacity 580 Gbps
Forwarding Rate 431.54 Mpps
Routing Protocols Supported OSPF, IS-IS, RIP, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM/SSM/Bidir, MSDP, RIPng, MPLS, policy-based routing
IPv4 Routing Table Entries 32000
IPv6 Routing Table Entries 16000
Flexible NetFlow Entries 64000
VLAN IDs Supported 4000
Switched Virtual Interfaces (SVIs) 2000
MAC Address Table Size 32000 entries
Packet Buffer Size 32 MB
RAM 8 GB
Flash Memory 16 GB
Status Indicators Status
Advanced Network Features Trunking, QoS, NSF, WRED, VRF, RSPAN, FNF, AVB, PTP, LISP, CoAP, VTEP, GIR mode, Integrated Wireshark
