Products Network Stuff Cisco C9410R 10-Slot Switch...

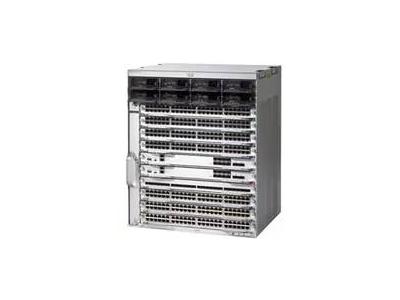

Cisco C9410R 10-Slot Switch Chassis, 100Gbps, Layer 2/3, 13RU

VENDOR: CISCO Mfg Part#: C9410R-10A
1 2
Photo is for illustration purposes only. Actual product may be different.
$3,198.44
$3,198.44
Sale Sold out
MSRP: $9,652.34
Shipping calculated at checkout.
  • Supports up to 100Gbps data transfer for high-bandwidth enterprise needs
  • 13RU form factor with 10-slot chassis enables scalable modular deployment
  • Multilayer support including Layer 2 and Layer 3 switching capabilities
  • Multiple interface support: RJ-45, SFP, SFP+, SFP28, QSFP+, QSFP28
  • Advanced security with AES 256-bit encryption and remote management via IPv4/IPv6/CLI
  • Standards-compliant with IEEE 802.1s, 802.1w, 802.1p; TAA and RoHS certified

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Engineered for mission-critical networks with a high MTBF of over 1.4 million hours and 100Gbps throughput
  • Supports a wide spectrum of interface types for deployment flexibility across legacy and high-speed environments
  • Backed by Cisco Enhanced Limited Lifetime Warranty and TAA compliance for government procurement

Product Overview

The Cisco C9410R 10-slot switch chassis is designed for enterprise-grade and federal network infrastructures, offering 100Gbps throughput and extensive interface compatibility including SFP, SFP+, QSFP28, and Multigigabit Ethernet. It supports Layer 2/3 switching and features robust security protocols like AES 256-bit encryption and RIP-based routing. With TAA compliance, RoHS certification, and a Cisco Enhanced Limited Lifetime Warranty, this 13RU chassis delivers long-term reliability (MTBF 1.4M+ hours) for mission-critical operations.

Specifications

Product Overview
Product Type Modular Network Switch Chassis
Model C9410R
Form Factor 13RU
Chassis Slots 10
Mounting Type Rack-mountable
Power Requirements AC 120/230V (50/60Hz) – requires separate redundant power supplies
Power Supply Type Hot-swappable, redundant power supply (sold separately)
Throughput 100 Gbps
Layer Support Layer 2 and Layer 3
MTBF (Mean Time Between Failures) 1,404,840 hours
Weight 65 lbs.

Wireless Features
Wireless Support No

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliant Yes
Certifications UL, CSA, CE, FCC, EN60950-1
Networking Standards IEEE 802.1p, 802.1s, 802.1w

Advanced Security Features
Encryption Algorithms AES 256-bit
Routing Protocols Supported RIPv1, RIPv2, RIPng, OSPF, EIGRP, BGP
Access Control Lists (ACLs) Yes
MACsec Encryption Supported on selected line cards
Network Segmentation VRF (Virtual Routing and Forwarding)

Interfaces
Interface Types RJ-45, SFP, SFP+, SFP28, QSFP+, QSFP28, Multigigabit Ethernet
Port Expansion Modular - supports multiple line cards per slot
PoE Support Yes
Data Link Protocol Gigabit Ethernet
Max Data Transfer Rate 100 Gbps per system
Number of Uplinks Supported Dependent on installed supervisor and line cards

Physical & Environmental
Width 17.30 in
Depth 16.30 in
Height 22.61 in
Min Operating Temperature -5°C
Max Operating Temperature 45°C
Min Storage Temperature -40°C
Max Storage Temperature 70°C
Humidity Range (Operating) 5% to 90% (non-condensing)
Humidity Range (Storage) 5% to 95% (non-condensing)
Cooling Type Redundant fan trays

Cloud Management & Licensing
Remote Management Protocols IPv4, IPv6, CLI, SNMP, SSH, Telnet
Management Interface Cisco DNA Center, Cisco Prime Infrastructure
License Type DNA Essentials or DNA Advantage (subscription required)
Software Upgrades Requires subscription/license
