| Product Type | Managed Layer 3 Ethernet Switch |
| Form Factor | Desktop, rack-mountable, DIN rail mountable, wall-mountable (1U) |
| Software Included | Cisco IOS IP Base |
| Power Consumption (Operational) | 24.3 Watt |
| Power Supply Type | Internal power supply |
| MTBF | 737,740 hours |
| PoE Power Budget | 146 W |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| 80 PLUS Certification | 80 PLUS Silver |
| Status Indicators | Port transmission speed, system, status, PoE, link/activity |
| Rack Mounting Kit | Optional |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day; Technical support - consulting - 90 days |

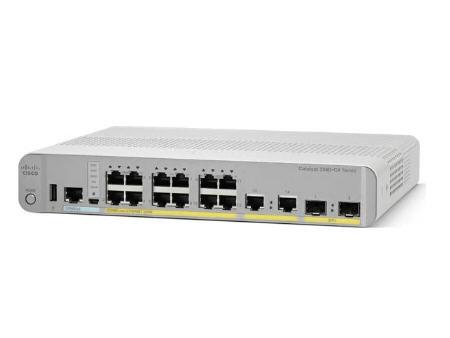

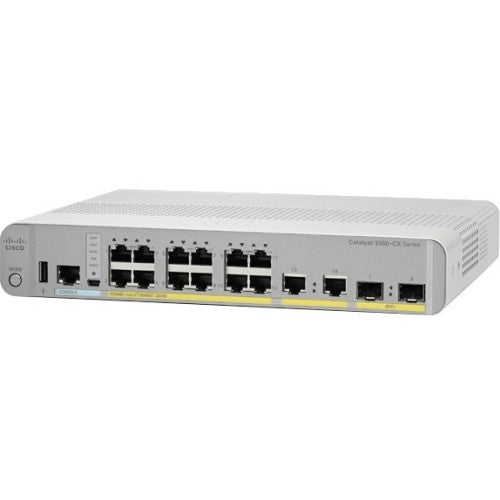

Cisco Catalyst 3560-CX 8-Port PoE+ Managed Switch WS-C3560CX-8PTS++
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,286.39
Regular price
Sale price
$1,286.39
Unit price
per
MSRP: $1,886.71
Shipping calculated at checkout.
Couldn't load pickup availability
- 8 x 10/100/1000 PoE+ ports with total PoE budget of 146W
- Supports IPv6, static routing, RIP-1/2, and advanced Layer 3 features
- Fanless operation and 80 PLUS Silver energy efficiency rating
- 14.9 Mpps forwarding performance for optimized data transmission
- Managed switch with SNMP, RMON, Telnet, CLI, and HTTP remote protocols
- TAA compliant with optional rack, wall, DIN rail, or desktop mounting options
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers enterprise-grade Layer 3 switching and VLAN capacity ideal for branch and edge deployments
- Silent, fanless design with energy-efficient performance suits space-restricted, noise-sensitive environments
- Backed by Cisco’s limited lifetime warranty and designed with TAA compliance for government procurement
Product Overview
The Cisco Catalyst 3560-CX WS-C3560CX-8PTS++ is a compact managed network switch designed to deliver high-performance connectivity in space-constrained and low-noise environments. Equipped with 8 Gigabit Ethernet PoE+ ports and 2 uplink ports with UPOE capability, this switch delivers robust power and data transfer for IP phones, wireless access points, and IoT devices. It supports a 146W PoE budget while staying highly energy-efficient with an 80 PLUS Silver rating and fanless architecture for silent operation.
This Layer 3 switch provides full IPv6 support, static routing, RIP, ACLs, and advanced QoS capabilities. Network visibility and control are enhanced through SNMP, RMON, CLI, and Web interface management. It's compliant with a wide range of IEEE standards including 802.3af, 802.3x, 802.1Q, and many others, ensuring broad interoperability in enterprise networks. The device supports jumbo frames up to 9198 bytes and offers 14.9 Mpps forwarding performance for efficient traffic handling.
The 3560-CX series is ideal for enterprise branch offices, retail, education, and hospitality sectors looking to extend network access without dedicated wiring closets. With TAA compliance, limited lifetime warranty, and support for various mounting options including rack, wall, DIN rail, and desktop, this switch delivers operational versatility and long-term value across professional IT infrastructures.
Specifications
Product Overview
Wireless Features
Compliance & Origin
| Country of Origin | Mexico |
| TAA Compliant | Yes |
| Standards Compliance | IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3af, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3ah, 802.1ae, 802.1ab (LLDP), 802.3az |
| Certifications | GOST, CISPR 24, EN55022/24, CCC, RoHS, UL/IEC/EN 60950-1, ANATEL, GB 4943, KCC Class A, IEC 60825, KN22/24, VCCI, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1 |
Advanced Security Features
| Supported Authentication Methods | RADIUS, TACACS+, Kerberos, SSH |
| Access Control | Access Control Lists (ACLs) |
| Security Features | DHCP snooping, Dynamic ARP Inspection (DAI), Port Security, 802.1X Authentication, MAC Address Notification |
Interfaces
| Number of Ports | 10 |
| Downlink Ports | 8 x 1000Base-T RJ-45 PoE+ |
| Uplink Ports | 2 x 1000Base-T RJ-45 UPOE |
| Management Interfaces | 1 x mini-USB Type B management, 1 x USB Type A, 1 x RJ-45 console |
| Port Type | 10/100/1000 Ethernet |
| Forwarding Performance | 14.9 Mpps |
| Jumbo Frame Support | 9198 bytes |
| VLAN Support | Up to 1023 Virtual Interfaces (VLANs) |
Physical & Environmental
| Width | 10.6 in |
| Depth | 7 in |
| Height | 1.7 in |
| Weight | 3.48 lbs |
| Minimum Operating Temperature | 23 °F (-5 °C) |
| Maximum Operating Temperature | 113 °F (45 °C) |
| Operating Humidity Range | 5 - 95% (non-condensing) |
| Minimum Storage Temperature | -13 °F (-25 °C) |
| Maximum Storage Temperature | 158 °F (70 °C) |
| Storage Humidity Range | 5 - 95% (non-condensing) |
Cloud Management & Licensing
| Management Interfaces | CLI, SNMP v1/v2c/v3, RMON 1/2, HTTP, Telnet, TFTP |
| Included Licenses | Cisco IOS IP Base license |
