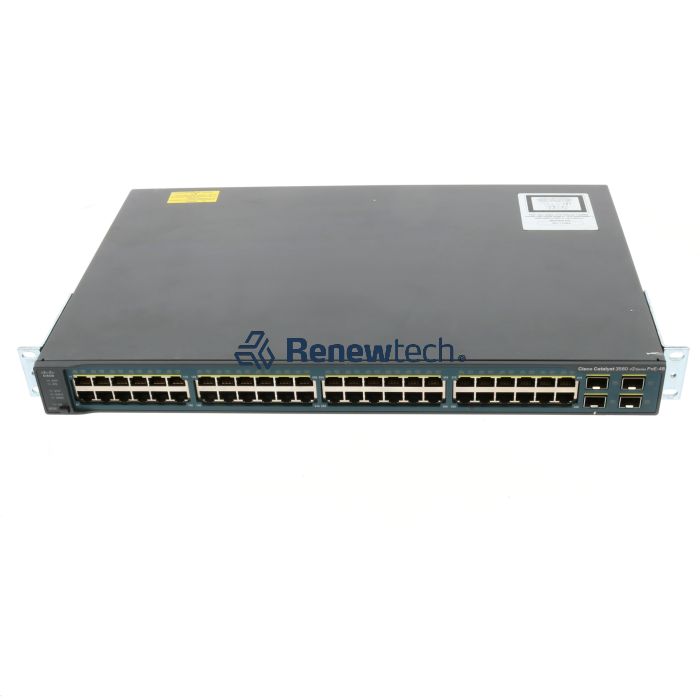

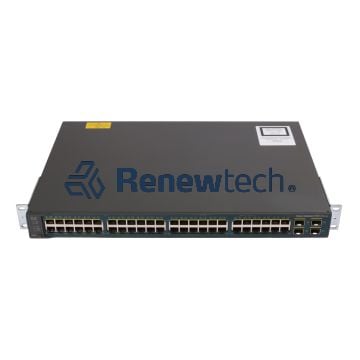

CISCO Catalyst 3560V2 48 10/100 + 4 SFP Switch with IPB

VENDOR: CISCO Mfg Part#: WS-C3560V2-48TS-S
1 3
Photo is for illustration purposes only. Actual product may be different.
$3,746.59
$3,746.59
Sale Sold out
MSRP: $5,495.00
Shipping calculated at checkout.
  • 48 Fast Ethernet 10/100 ports for core connectivity
  • 4 SFP uplink ports provide enhanced fiber uplink flexibility
  • Includes IP Base (IPB) software image for Layer 2 switching and limited Layer 3 support
  • TAA compliant, ideal for government or federally funded projects
  • Manufactured in China, meeting enterprise production standards

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports 48 Ethernet and 4 SFP ports, offering extensive connection options for growing networks
  • Preloaded with Cisco IP Base software, enabling enhanced routing and management features
  • TAA compliance ensures eligibility for federal procurement and sensitive deployments

Product Overview

The CISCO Catalyst 3560V2 48 10/100 + 4 SFP + IPB is an enterprise-class switch featuring 48 Fast Ethernet ports and 4 SFP uplinks for flexible connectivity. With the IP Base software image, it supports enhanced Layer 2 and limited Layer 3 features. Manufactured in CHINA and fully TAA compliant, it's suitable for both commercial and federal use, delivering performance and regulatory assurance. Designed for energy-efficient and stable operation, this switch supports network segmentation, QoS, and scalable growth for secure, managed environments.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Series Cisco Catalyst 3560V2 Series
Model WS-C3560V2-48TS-S
Form Factor Rack-mountable - 1U
Performance 32 Gbps Switching Capacity
Forwarding Rate 6.5 Mpps
Weight 10.6 lbs (4.81 kg)
Power Required AC 120/230 V (50/60 Hz)
Power Consumption (Max) 40W
Software Image IP Base

Wireless Features

Compliance & Origin
Country of Origin China
TAA Compliant Yes
Safety Standards UL 60950-1, CAN/CSA-C22.2 No. 60950-1
EMI Standards FCC Part 15 Class A, EN 55022 Class A
Certifications CE, CSA, FCC, UL, RoHS

Advanced Security Features
Access Control 802.1X Authentication, Port Security
DHCP Snooping Yes
IP Source Guard Yes
Dynamic ARP Inspection Yes
Private VLAN Yes
Multicast Routing Supports PIM-SM, IGMP Snooping
Network Access Control MAC-based ACLs, VLAN ACLs
SPANNING Protocols STP, RSTP, MSTP

Interfaces
Total Number of Ports 52
10/100 Ethernet Ports 48 x Fast Ethernet (10/100) RJ-45
SFP Uplink Ports 4 x SFP (mini-GBIC)
Console Port 1 x RJ-45 Console Port
Data Transfer Rate 100 Mbps per port (10/100) Ethernet
Switching Method Store-and-Forward
Network Connectivity Technology Wired

Physical & Environmental
Dimensions (W x D x H) 17.5 x 11.8 x 1.73 in (44.5 x 30 x 4.4 cm)
Rack Units 1U
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -13°F to 158°F (-25°C to 70°C)
Operating Humidity 10% to 85% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Acoustic Noise 39 dB (typical)
MTBF 176,508 hours
Cooling Internal Fans

Cloud Management & Licensing
Management Interface CLI, SNMP v1, v2c, v3, RMON, web-based GUI
Software Licensing IP Base Image Included
Remote Management Protocols Telnet, SNMP, RMON, HTTP, HTTPS, SSH
Configuration Management Cisco Network Assistant Supported
VLAN Support Up to 1024 VLANs
