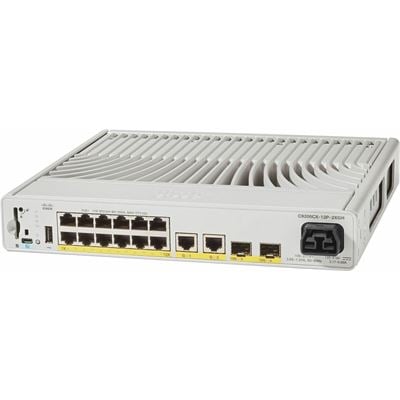

Cisco Catalyst 9000 Compact 12-Port PoE+ Switch, 240W HVDC

VENDOR: CISCO Mfg Part#: C9200CX-12P-2XGH-E
1 1
Photo is for illustration purposes only. Actual product may be different.
$2,135.85
$2,135.85
Sale Sold out
MSRP: $3,132.59
Shipping calculated at checkout.
  • 12 PoE+ ports for streamlined device connectivity
  • 240W total Power over Ethernet budget
  • High-voltage DC (HVDC) input for modern data center integration
  • Compact form factor ideal for tight-installation environments
  • TAA compliant for government procurement compatibility
  • Cisco Catalyst family reliability and scalability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports up to 12 powered devices with 240W PoE+, eliminating the need for separate power solutions
  • TAA compliance ensures eligibility for federal and public sector procurement
  • Compact edge-friendly design with HVDC power makes it suitable for data centers and decentralized deployments

Product Overview

The Cisco Catalyst 9000 Compact 12-Port PoE+ Switch (Model C9200CX-12P-2XGH-E) delivers enterprise performance in a highly compact form factor. Equipped with 12 PoE+ ports providing up to 240W total power, it supports edge devices including IP cameras, WAPs, and more—without external power adapters. Powered by high-voltage DC (HVDC), it aligns with data center power infrastructures and is TAA-compliant to meet stringent government standards. Ideal for secure, high-density environments where space is at a premium, the Catalyst 9000 Compact Switch ensures deployment flexibility and scalable performance.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Model C9200CX-12P-2XGH-E
Series Cisco Catalyst 9200CX
Form Factor Compact
Mounting Options Desktop, Wall mount, DIN rail (with optional accessories)
PoE Power Budget 240W
Power Supply Type High Voltage DC (HVDC)
Fanless Yes
Performance Switching Capacity 56 Gbps
Forwarding Rate 83.33 Mpps
CPU Quad-core ARM Cortex-A72
Flash Memory 16 GB
System Memory (RAM) 4 GB DRAM

Wireless Features
Wireless Support No (wired switch)

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
Certifications UL, CE, FCC, CB, ICES

Advanced Security Features
MACsec Encryption Yes, 256-bit
TrustSec Supported
DHCP Snooping Yes
Dynamic ARP Inspection (DAI) Yes
Port Security Yes
IP Source Guard Yes
802.1X Authentication Yes (Multi-domain authentication)
Access Control Lists (ACLs) Yes

Interfaces
Total Ethernet Ports 12
PoE+ (802.3at) Ports 12
Uplink Ports 2 x 10G SFP+
Console Ports 1 x RJ-45 Console, 1 x USB-C Console
USB Ports 1 x USB 2.0 Type A
Management Port 1 x 10/100 Mbps Ethernet
Data Transfer Rate 10/100/1000 Mbps, 1/10 Gbps (uplinks)

Physical & Environmental
Dimensions (W x D x H) 10.1 x 10.1 x 1.73 in (256 x 256 x 44 mm)
Weight 6.8 lbs (3.1 kg)
Operating Temperature -5°C to 50°C (23°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% (non-condensing)
Acoustic Noise Fanless (0 dBA)
MTBF (Mean Time Between Failures) Over 685,000 hours

Cloud Management & Licensing
Network Management Cisco DNA Center, CLI, SNMP, Web UI
Cisco DNA License Tier Essential/Advantage (subscription-based)
Smart Licensing Support Yes
Included Management Features Plug-and-play (PnP), NetFlow Lite, Application visibility
