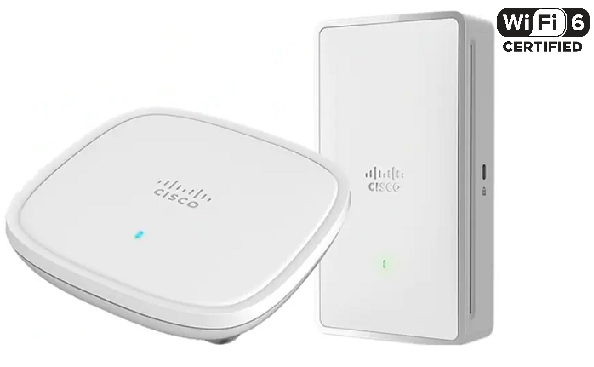

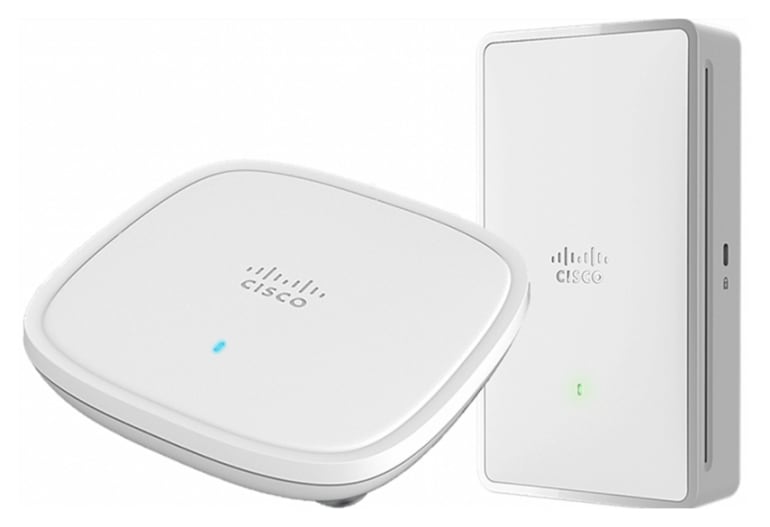

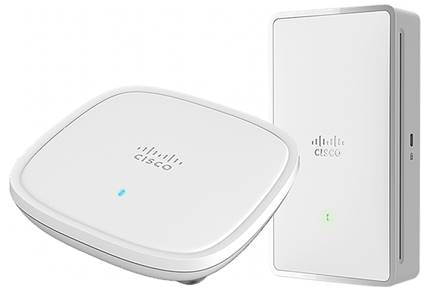

Cisco Catalyst 9105AX Series Wi-Fi 6 Indoor Access Point

VENDOR: CISCO Mfg Part#: C9105AXI-B++
1 3
Photo is for illustration purposes only. Actual product may be different.
$546.34
$546.34
Sale Sold out
MSRP: $801.30
Shipping calculated at checkout.
  • Wi-Fi 6 (802.11ax) support with downlink MU-MIMO and OFDMA
  • Supports 2.4 GHz and 5 GHz frequency bands for dual-band connectivity
  • 1x 10/100/1000 Base-T Ethernet uplink and management console (RJ-45) interface
  • 2x2 MIMO and 2x2 MU-MIMO for optimized multi-user performance
  • Features BSS coloring and Intelligent Capture for advanced wireless analysis
  • Indoor-rated with compact dimensions: 5.9" x 5.9" x 1.18"

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Built on Wi-Fi 6 (802.11ax) technology, enabling faster speeds and better device handling for enterprises
  • Includes intelligent network capture and BSS coloring, enhancing diagnostic visibility and reducing interference
  • Backed by Cisco's limited lifetime warranty and meets TAA compliance, supporting long-term deployment in government and enterprise sectors

Product Overview

The Cisco Catalyst 9105AX Series is an enterprise-grade Wi-Fi 6 indoor access point offering support for 802.11a/b/g/n/ac/ax and features such as 2x2 MU-MIMO, uplink/downlink OFDMA, and BSS coloring for enhanced efficiency. Designed for deployment in dense or complex wireless environments, it includes 1 Gbps Ethernet uplink and a management console port, optimizing physical connectivity. Intelligent capture provides improved network visibility while complying with TAA standards and backed by a limited lifetime warranty.

Specifications

Product Overview
Product Type Access Point
Model C9105AXI-B
Form Factor Ceiling mountable or wall mountable
Environment Indoor
Weight 0.5 kg
Power Requirements 802.3af (PoE)
Max Power Consumption 13.5 W
Processor Type
Processor Manufacturer
Processor Clock Speed
Processor Count

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Frequency Band 2.4 GHz; 5 GHz
MIMO Type 2x2 MU-MIMO
Max Data Rate (5 GHz) 1.2 Gbps
Max Data Rate (2.4 GHz) 574 Mbps
Antennas Internal antennas
Antenna Gain 4 dBi (2.4 GHz), 5 dBi (5 GHz)
OFDMA Support Uplink and Downlink OFDMA
BSS Coloring Supported

Compliance & Origin
Country of Origin Mexico
TAA Compliance Yes
Certifications FCC, IC, CE, RoHS, UL

Advanced Security Features
WPA Versions Supported WPA2, WPA3
Secure Boot Yes
Runtime Memory Protection Yes
Secure Credential Storage Yes

Interfaces
Ethernet Ports 1 x 10/100/1000BASE-T (RJ-45)
Console Port 1 x RJ-45 Console Port
Uplink Interface 1 Gbps Ethernet
Interface Types Gigabit Ethernet, RJ-45 Console
Data Transfer Rate 1 Gbps

Physical & Environmental
Width 5.9 inch (150 mm)
Depth 5.9 inch (150 mm)
Height 1.18 inch (30 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 90% (non-condensing)

Cloud Management & Licensing
Management Interface Cisco Embedded Wireless Controller or Cisco DNA Center
Licensing Cisco DNA licensing required
Cloud Features Centralized management, analytics, and telemetry
