Cisco Catalyst 9120AX Series Access Point, Model C9120AXE-B

VENDOR: CISCO Mfg Part#: C9120AXE-B++
1 3

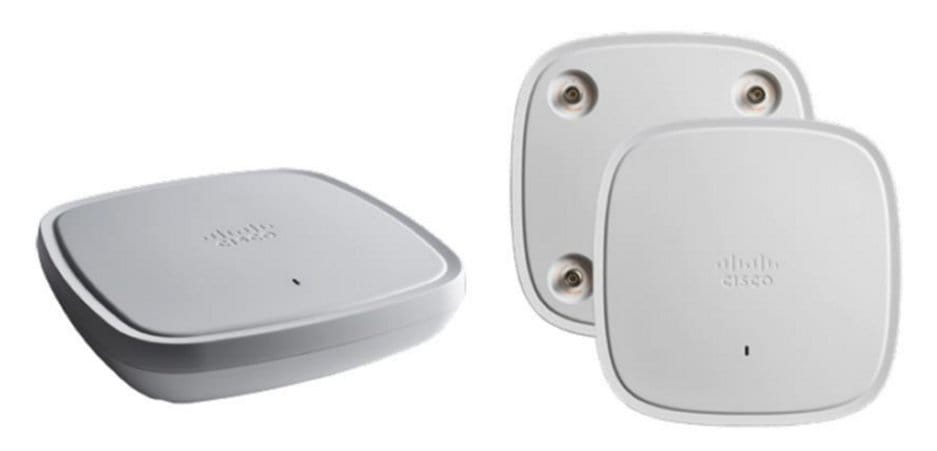

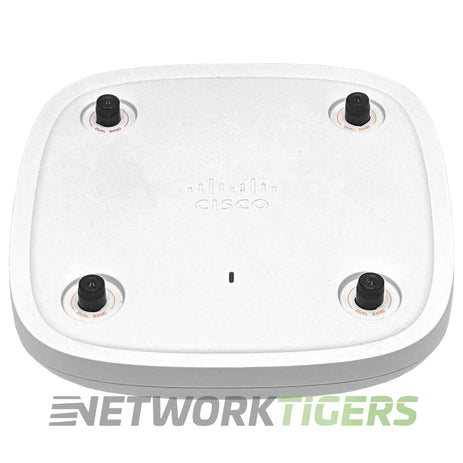

Photo is for illustration purposes only. Actual product may be different.
$1,556.57
$1,556.57
Sale Sold out
MSRP: $2,282.97
Shipping calculated at checkout.
  • Wi-Fi 6 (802.11ax) support for high-performance wireless connectivity
  • 4x4 MU-MIMO antenna system with uplink/downlink OFDMA for efficient multi-user communication
  • Multigigabit Ethernet interfaces (100/1000/2500 Mbps) via RJ-45 ports
  • Includes 2 GB RAM and 1 GB internal storage for robust internal processing
  • Cisco RF ASIC for real-time RF analytics and intelligent spectrum management
  • Compliant with TAA and comes with a limited lifetime hardware warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports high-density environments with Wi-Fi 6 and 4x4 MU-MIMO for enterprise-grade performance
  • Multigigabit Ethernet interface ensures reliable and high-speed wired backhaul connectivity
  • Cisco’s advanced RF ASIC enables intelligent, hardware-based spectrum analysis for enhanced security and network control

Product Overview

The Cisco Catalyst 9120AX Series Access Point, model C9120AXE-B, is built to address demanding wireless environments with high performance, resilience, and intelligent network capabilities. Supporting the latest Wi-Fi 6 (802.11ax) standard, it delivers faster data transfer speeds and improved client capacity. Its 4x4 MU-MIMO antenna system and uplink/downlink OFDMA functionality enable simultaneous high-efficiency communication with multiple devices, improving user experience in dense deployment scenarios such as office buildings, educational institutions, and large public venues.

This enterprise-class access point is equipped with RJ-45 multigigabit Ethernet interfaces (100/1000/2500 Mbps) to support high-bandwidth backhaul and offers scalable connectivity via wired and wireless technology. It includes 2 GB RAM and 1 GB internal storage, ensuring efficient performance and security processing. Built for indoor environments, the Catalyst 9120AXE-B features Cisco RF ASIC for real-time spectrum analytics and policy management through a dedicated hardware engine, enhancing security and performance while complying with TAA standards. The hardware is backed by a limited lifetime warranty, providing added assurance for long-term deployments.

Ideal for enterprises seeking scalable and robust wireless deployments, the Cisco Catalyst 9120AX brings operational efficiency and superior user experience. With a compact form factor and integration-ready design, this access point supports seamless deployment and ongoing management within larger Catalyst infrastructures.

Specifications

Product Overview
Product Type Access Point
Model C9120AXE-B
Family Cisco Catalyst 9120AX Series
Networking Type Ethernet
Form Factor Ceiling mountable or wall-mountable
Environment Indoor
Weight 1.22 kg
Power Options 802.3at (PoE+), Cisco Universal PoE (UPOE)
Maximum Power Consumption 20.9 W
RAM 2 GB
Flash Memory 1 GB
Mounting Options Standard bracket included, optional accessories available
Warranty Limited lifetime hardware warranty

Wireless Features
Wi-Fi Standard 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Frequency Band 2.4 GHz and 5 GHz
MIMO Configuration 4x4 MU-MIMO
Maximum Spatial Streams 4
Modulation OFDMA with 1024-QAM
Max Data Rate Up to 5.38 Gbps (theoretical aggregate)
Beamforming Support Yes
External Antenna Support Yes (Antennas sold separately)

Compliance & Origin
Country of Origin Mexico
TAA Compliance Yes
Certifications UL 60950-1, EN 60950-1, FCC Part 15C, ICES-003, CE Marking

Advanced Security Features
Built-in Security Processing Cisco RF ASIC with real-time spectrum analysis
WPA Versions Supported WPA3, WPA2
Rogue Access Point Detection Yes
Integrated IDS/IPS Yes, with Cisco DNA licenses
Secure Boot Feature Yes
Encrypted Traffic Analytics Yes

Interfaces
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Interfaces 1 x 100/1000/2500 Multigigabit Ethernet (RJ-45) port
Management Port 1 x RJ-45 console port
Power over Ethernet (PoE) Yes
Uplink Speeds Up to 2.5 Gbps
USB Ports 1 x USB 2.0 port

Physical & Environmental
Width 8.5 in (21.59 cm)
Depth 8.05 in (20.45 cm)
Height 2 in (5.08 cm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 10% to 90% (non-condensing)

Cloud Management & Licensing
Management Interface Cisco DNA Center, Web UI, CLI
Cloud Managed Optional via Cisco Meraki Controller (with DNA license)
Licensing Model Cisco DNA Advantage or Essentials (subscription-based)
