| Product Type | Access Point |
| Model | C9120AXI-B |
| Form Factor | Ceiling or wall-mountable |
| Deployment Environment | Indoor |
| RAM | 2 GB |
| Storage Capacity | 1 GB |
| Power Options | PoE 802.3at (30W) |
| Warranty | Limited lifetime hardware warranty |

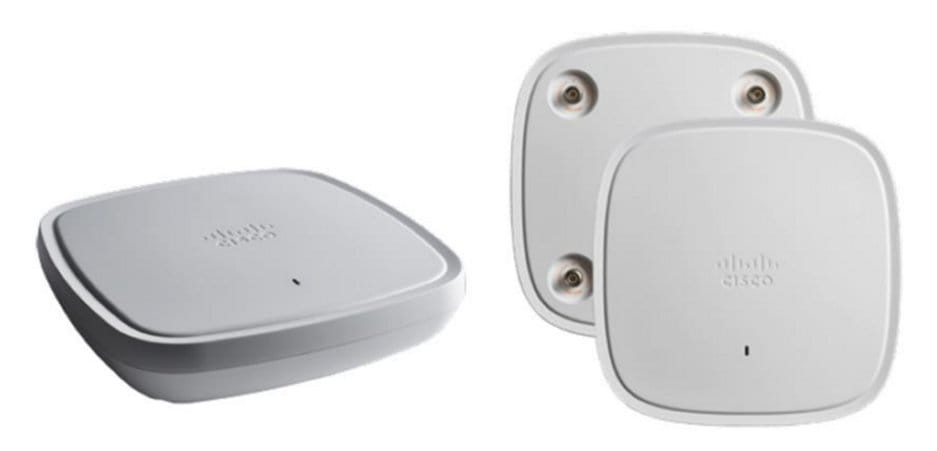

Cisco Catalyst 9120AX Series Access Point, Model C9120AXI-B
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,475.91
Regular price
Sale price
$1,475.91
Unit price
per
MSRP: $2,164.68
Shipping calculated at checkout.
Couldn't load pickup availability
- Wi-Fi 6 (802.11ax) for higher throughput and efficiency
- 4x4 MU-MIMO and uplink/downlink OFDMA for improved multi-user performance
- Multigigabit Ethernet RJ-45 interface supporting 100/1000/2500 Mbps rates
- Cisco RF ASIC for enhanced spectrum intelligence
- Integrated management and USB 2.0 ports for versatile deployment
- Indoor-rated compact hardware with 1 GB storage and 2 GB RAM
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Built on 802.11ax Wi-Fi 6 technology, the device offers future-ready wireless networking performance.
- Advanced RF capabilities like Cisco RF ASIC and MU-MIMO ensure optimized coverage and user density handling.
- Limited lifetime hardware warranty and TAA compliance enhance long-term value and procurement flexibility.
Product Overview
The Cisco Catalyst 9120AX Series Access Point offers Wi-Fi 6 (802.11ax) performance, MU-MIMO, and uplink/downlink OFDMA for superior network efficiency. With multigigabit Ethernet support up to 2.5 Gbps via RJ-45 and Cisco RF ASIC technology, it is optimized for dense indoor environments. Equipped with 1 GB storage and 2 GB RAM, the unit ensures smooth wireless service delivery. Backed by a limited lifetime warranty and TAA compliance, it is ideal for secure enterprise deployments. Note: Processor specifications are not provided.
Specifications
Product Overview
Wireless Features
| Wi-Fi Generation | Wi-Fi 6 (802.11ax) |
| Supported Frequency Bands | 2.4 GHz and 5 GHz |
| MIMO Configuration | 4x4 MU-MIMO |
| Antenna Configuration | Internal antennas |
| Maximum Data Rate (5 GHz) | 4800 Mbps |
| Maximum Data Rate (2.4 GHz) | 1147 Mbps |
| OFDMA | Uplink and downlink support |
| Modulation | 1024 QAM |
| Target Wake Time | Supported |
Compliance & Origin
| Country of Origin | Mexico |
| TAA Compliant | Yes |
| Certifications | UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1 |
| RoHS Compliance | Yes |
| Safety Standards | UL, VCCI, BSMI, NOM, EN 60601-1-2 |
Advanced Security Features
| Wireless Security Protocols | WPA3, WPA2, WPA |
| Integrated RRM with RF ASIC | Supported |
| Rogue Access Point Detection | Yes |
| Secure Boot and Trust Anchor Module | Yes |
| Policy Enforcement | Cisco TrustSec and segmentation policies |
Interfaces
| Ethernet Interface | 1x 100/1000/2500 Multigigabit Ethernet (RJ-45) |
| Data Transfer Rate | 2.5 Gbps |
| Data Link Protocols | Gigabit Ethernet, 802.11ax |
| LAN Ports | 1 |
| Console Ports | 1x USB Type-C |
Physical & Environmental
| Width | 8.5 inches |
| Depth | 8.5 inches |
| Height | 1.7 inches |
| Weight | 2.1 lbs (0.95 kg) |
| Operating Temperature Range | 32°F to 122°F (0°C to 50°C) |
| Storage Temperature Range | -22°F to 158°F (-30°C to 70°C) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Humidity | 5% to 93% (non-condensing) |
| Enclosure Material | Plastic |
Cloud Management & Licensing
| Management Interface | Cisco DNA Center, Cisco Catalyst Dashboard |
| Software Licensing | Cisco DNA Software Subscription required |
| Controller Compatibility | Cisco Catalyst 9800 Series Controllers |
