Cisco Catalyst 9120AXE-B Wi-Fi 6 Access Point, 2.5Gbps MU-MIMO

VENDOR: CISCO Mfg Part#: C9120AXE-B UPC#: 889728227193
  • Cisco Catalyst 9120AX Series
1 1

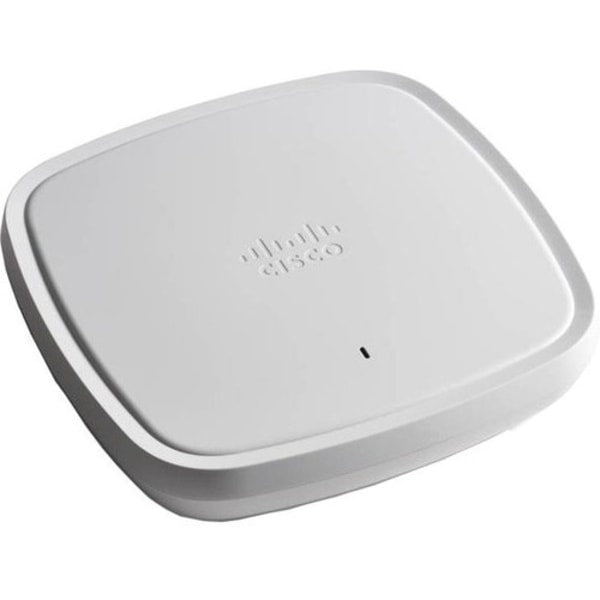

Photo is for illustration purposes only. Actual product may be different.
$1,327.24
$1,327.24
Sale Sold out
MSRP: $2,282.97
Shipping calculated at checkout.
  • Wi-Fi 6 (802.11ax) support with 4x4 MU-MIMO and uplink/downlink OFDMA
  • Multigigabit Ethernet (100/1000/2500 Mbps) RJ-45 interface for scalable connectivity
  • Dual-band operation at 2.4 GHz and 5 GHz for versatile wireless environments
  • Built-in Cisco RF ASIC for enhanced network intelligence and monitoring
  • 2 GB RAM and 1 GB internal storage for operational efficiency
  • TAA compliant and includes limited lifetime hardware warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Built on advanced Wi-Fi 6 with MU-MIMO and OFDMA, ensuring high-efficiency wireless coverage in dense environments.
  • Supports multigigabit Ethernet connectivity, enabling future-proof network scalability without bottlenecks.
  • Backed by Cisco's limited lifetime hardware warranty and TAA compliance, making it suitable for enterprise and government use.

Product Overview

The Cisco Catalyst 9120AXE-B is a next-generation Wi-Fi 6 (802.11ax) enterprise indoor access point offering enhanced wireless efficiency through 4x4 MU-MIMO and OFDMA technologies across both 2.4 GHz and 5 GHz bands. It features multigigabit Ethernet support with 100/1000/2500 Mbps RJ-45 interfaces, along with a USB 2.0 and management console port. Its integrated RF ASIC enables intelligent radio frequency analytics. Built with 2 GB RAM and 1 GB of storage, it is designed for resilient enterprise environments and comes with TAA compliance and a limited lifetime hardware warranty.

Specifications

Product Overview
Product Type Access Point
Model C9120AXE-B
Environment Indoor
Form Factor Ceiling or wall mountable
RAM 2 GB
Storage Capacity 1 GB
Weight 1.1 kg
Power Requirements 802.3at PoE+
Power Consumption (Typical) 23.2 W
Power Consumption (Maximum) 25.5 W
Limited Warranty Limited Lifetime Hardware Warranty

Wireless Features
Wi-Fi Standard 802.11a/b/g/n/ac/ax (Wi-Fi 6)
MIMO Configuration 4x4 MU-MIMO
Frequency Band 2.4 GHz and 5 GHz
OFDMA Support Yes, uplink and downlink
Antenna Type External Antennas (not included)
Maximum Data Rate (2.4 GHz) 574 Mbps
Maximum Data Rate (5 GHz) 4.8 Gbps
Total Maximum Throughput 5.38 Gbps
Number of Spatial Streams 4
Max Clients Per Radio 200+
Beamforming Yes

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL 60950-1, UL 62368-1, IEC 62368-1, FCC Part 15B/Class B, ICES-003 Class B, CE Marking
Regulatory Compliance RoHS, WEEE

Advanced Security Features
RF ASIC Dedicated hardware for RF analytics and scanning
Wireless Security WPA3, WPA2, WPA
Secure Boot and Image Signing Yes
Rogue Access Point Detection Yes
Encrypted Traffic Analytics Yes
Identity PSK Yes

Interfaces
Uplink Interface 1 x Multigigabit Ethernet (RJ-45), 100/1000/2500 Mbps
USB Port 1 x USB 2.0
Console Port 1 x RJ-45 console port
Data Transfer Rate 2.5 Gbps

Physical & Environmental
Width 8.5 in (216 mm)
Depth 8.05 in (204.5 mm)
Height 2 in (50.8 mm)
Operating Temperature 32°F to 122°F (0°C to 50°C)
Operating Humidity (Non-condensing) 10% to 90%
Storage Temperature -22°F to 158°F (-30°C to 70°C)
Storage Humidity 5% to 93% non-condensing

Cloud Management & Licensing
Management Interface Cisco DNA Center or Embedded Wireless Controller (EWC)
Licensing Model Cisco DNA Subscription License Required
Cloud Managed Yes (via Cisco DNA Center)
Embedded Controller Yes, Cisco Embedded Wireless Controller on Access Point
