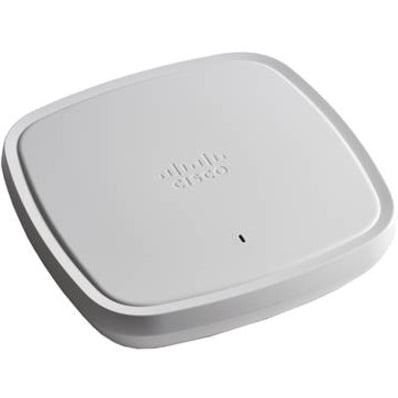

Cisco Catalyst 9130AX Series Access Point, Model C9130AXI-A

VENDOR: CISCO Mfg Part#: C9130AXI-A UPC#: 889728246095
  • Cisco Catalyst 9130AX Series
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,822.73
$1,822.73
Sale Sold out
MSRP: $2,673.32
Shipping calculated at checkout.
  • Supports Wi-Fi 6 (IEEE 802.11a/b/g/n/ac/ax) for next-gen wireless performance
  • Tri-radio with 8x8 MU-MIMO and 4x4 MIMO for enhanced multi-user support
  • Up to 5 Gbps data transfer rate with Gigabit Ethernet protocol support
  • 2048 MB installed RAM for high-capacity performance
  • Omni-directional antenna and indoor form factor for optimal coverage
  • TAA compliant and limited lifetime hardware warranty for enterprise confidence

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-grade wireless speed up to 5 Gbps, perfect for bandwidth-intensive applications
  • Incorporates tri-radio design and high-count MIMO for superior coverage and user density handling
  • Backed by Cisco’s limited lifetime warranty and TAA compliance, ensuring long-term value and regulatory assurance

Product Overview

The Cisco Catalyst 9130AX Series, model C9130AXI-A, is a powerful indoor enterprise access point delivering up to 5 Gbps wireless throughput over tri-radio architecture. It supports a broad array of standards including IEEE 802.11a/b/g/n/ac/ax and features advanced 8x8 MU-MIMO, 4x4 MIMO, and uplink/downlink OFDMA for dense user environments. With 2048 MB RAM and omni-directional antennas, this unit excels in managing high traffic loads. It includes a limited lifetime hardware warranty and is TAA-compliant, making it a trusted choice for both corporate and regulated deployments.

Specifications

Product Overview
Type Indoor Enterprise Access Point
Model C9130AXI-A
Family Cisco Catalyst 9130AX Series
Form Factor Ceiling mountable / desktop
Weight 2.5 lbs (1.13 kg)
Power Requirements 802.3at PoE+ / 802.3bt Type 3
RAM 2048 MB
Environment Indoor
Warranty Limited lifetime hardware warranty

Wireless Features
Wi‑Fi Standards 802.11a/b/g/n/ac/ax
Frequency Band 2.4 GHz, 5 GHz
Radio Count Tri-radio
Antenna Type Internal Omni-directional Antennas
MIMO Configuration 8x8 MU‑MIMO (5 GHz), 4x4 MIMO (2.4 GHz)
OFDMA Support Uplink and Downlink OFDMA
Maximum Clients 1000+ concurrent clients
Spatial Streams 8 spatial streams (5 GHz)
Modulation 1024-QAM

Compliance & Origin
Country of Origin China / Mexico
TAA Compliance Yes
Regulatory Standards FCC, CE, UL, IC
Compliant Networking Standards 802.3ab, 802.3af, 802.3at, 802.11a/b/g/n/ac/ax, 802.11d, 802.11h
Certifications Wi-Fi 6 Certified

Advanced Security Features
Wireless Encryption WPA3, WPA2, AES, TKIP
Segmentation Dynamic segmentation with Cisco TrustSec
Policy Enforcement Cisco Identity Services Engine (ISE) integration
IDS/IPS Support Yes – via Cisco Secure Network Analytics
Content Filtering Optional via Cisco Umbrella integration
Rogue AP Detection Yes
MAC Filtering Yes

Interfaces
Networking Type Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Ethernet Ports 1 x 100/1000/2500/5000 Multigigabit Ethernet (RJ-45), 1 x 10/100/1000 Ethernet (RJ-45)
Uplink Interface 1 x Multigigabit RJ-45
USB Ports 1 x USB 2.0
Console Port 1 x RJ-45 (management)
Data Transfer Rate 5 Gbps
PoE Support 802.3at PoE+ and 802.3bt Type 3 (UPOE)

Physical & Environmental
Width 8.9 inches (226.1 mm)
Depth 8.9 inches (226.1 mm)
Height 1.88 inches (47.6 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 90% (non-condensing)

Cloud Management & Licensing
Cloud Management Cisco DNA Center or Cisco Catalyst Controller
Management Interface Web UI, Cisco IOS XE, CLI
Software Licensing Model Cisco DNA Licensing (Essentials, Advantage)
Included License None pre-included, license sold separately
