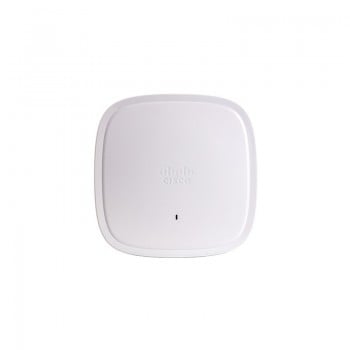

Cisco Catalyst 9130AX Series Wireless Access Point

VENDOR: CISCO Mfg Part#: C9130AXI-B UPC#: 889728246101
  • CISCO CATALYST 9130AX SERIES
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,822.73
$1,822.73
Sale Sold out
MSRP: $2,673.32
Shipping calculated at checkout.
  • Supports IEEE 802.11a/b/g/n/ac/ax wireless standards including Wi-Fi 6
  • 2048 MB DRAM for high-density connectivity performance
  • Compliant with IEEE 802.3ab/af/at Ethernet standards
  • TAA compliant for use in government-regulated environments
  • Manufactured in Mexico
  • Comes with a limited lifetime hardware warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports the latest Wi-Fi 6 (802.11ax) standard, ensuring future-ready wireless networks
  • Equipped with 2048 MB RAM to handle demanding, high-density environments
  • TAA compliance makes it suitable for public sector and government procurement requirements

Product Overview

The Cisco Catalyst 9130AX Series wireless access point offers next-generation Wi-Fi 6 (802.11ax) support, ensuring enhanced connectivity and performance in demanding environments. It comes equipped with 2048 MB DRAM to manage network density and is compatible with various IEEE standards, including 802.11a/b/g/n/ac/ax. With Ethernet support (802.3ab/af/at) and TAA compliance, this model is ideal for government and enterprise deployments. Though it lacks embedded cellular technology or processing capabilities, the hardware is backed by a limited lifetime warranty, making it a durable choice for critical wireless applications.

Specifications

Product Overview
Product Type Wireless Access Point
Series Cisco Catalyst 9130AX Series
Model Number C9130AXI-B
Form Factor Ceiling mountable
Processor Quad-core ARM processor
RAM 2048 MB DRAM
Flash Memory 1024 MB
Mounting Options Ceiling, Wall
Power Options Cisco Universal PoE (UPOE), 802.3at (PoE+), and 802.3af (PoE)
Power Consumption Up to 31.4 Watts
Warranty Limited Lifetime Warranty

Wireless Features
Wireless Standard Wi-Fi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac
MIMO 4x4 (5 GHz) and 4x4 (2.4 GHz) MU-MIMO
Maximum Data Rate 5.38 Gbps
Internal Antennas Yes (internal model)
Frequency Bands 2.4 GHz and 5 GHz
Dual Band Support Yes
OFDMA Yes
Target Wake Time (TWT) Yes
BSS Coloring Yes

Compliance & Origin
TAA Compliance Yes
Country of Origin Mexico
Certifications UL 60950-1, CB, RoHS, WEEE, FCC Part 15B Class B

Advanced Security Features
WPA Versions Supported WPA2, WPA3
Secure Boot Yes
802.1X Support Yes
MAC Filtering Yes
Encrypted Traffic Analytics Yes
Trust Anchor Module (TAM) Yes
Cisco Trustworthy Systems Yes

Interfaces
LAN Interface 1 x 5Gbps Multigigabit Ethernet (RJ-45)
Console Port 1 x RJ-45 Console Port
Smart Antenna Port 1 x Coaxial (for external antenna connection or environmental sensor)
Uplink Speed 2.5 Gbps / 5 Gbps (Multigigabit Ethernet)
Ethernet Standards IEEE 802.3ab, 802.3af, 802.3at

Physical & Environmental
Dimensions 8.5 in x 8.5 in x 1.6 in (21.6 cm x 21.6 cm x 4.06 cm)
Weight 2.4 lbs (1.1 kg)
Operating Temperature 0°C – 40°C (32°F – 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 10% to 90% (noncondensing)
Storage Humidity 5% to 90% (noncondensing)
Enclosure Material Plastic

Cloud Management & Licensing
Controller Compatibility Cisco Catalyst 9800 Series Wireless Controllers
Management Interface Cisco DNA Center, CLI, Web UI
Licensing Model Cisco DNA Licensing (Essential, Advantage, Premier)
Cloud Managed Yes, via Cisco DNA Center
